Managing variables – MTS TW Elite User Manual
Page 73
Recommended
The application always performs calculations in base (system) units. To avoid unit-conversion errors when
adding a calculation to a variable, create variables to hold constants used in the calculation. Assign the
desired units to each variable and the application will convert the unit type to the base unit type when
performing the calculation. For more information, see the MTS TW Elite User Guide.
Managing Variables
Managing variables is important when designing tests, especially for complex tests. The Variables subtab
of the Define tab has a Variables Actions button that includes the following display options to assist with
managing variables:
•
Show All Variables
•
Show/Hide Read-Only Variables
•
Show/Hide Disabled Variables
•
Rename Category
•
Update Used By
•
Set Variable Order
The Variables subtab toolbar also includes a search tool.
Update Used By feature
Note:
To display the Used By column, click the Variable Actions button and then click Update Used By.

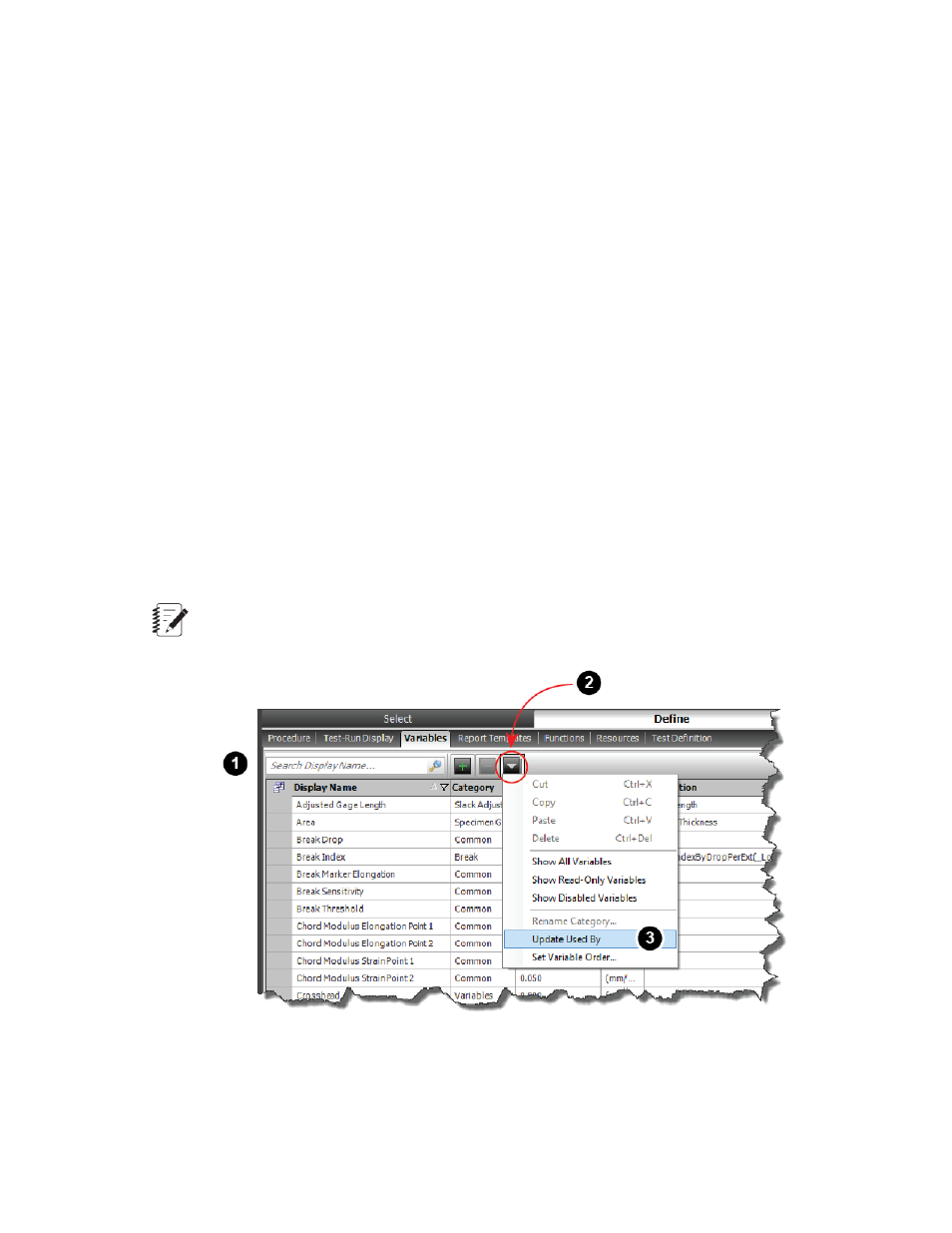

Variable Subtab of the Define Tab
MTS TestSuite | 73
