Run the Finish Section Button on the Review Tab
Test-Run Display Subtab
When you click on the Test-Run Display subtab of the Define tab, the center of the main window shows
the designer view of the test-run displays used in the test. You can think of a test-run display as a readout
device—like a meter or scope—that shows test signals or other information on the Monitor tab during test
runs.
The only test-run display used in the example test is the Array-Variable chart. It uses the Load variable
for the Y-axis and the Extension variable for the X-axis, as shown on the Properties panel.
You can add any of the test-run displays in the Toolbox to the test to view test information during test runs.

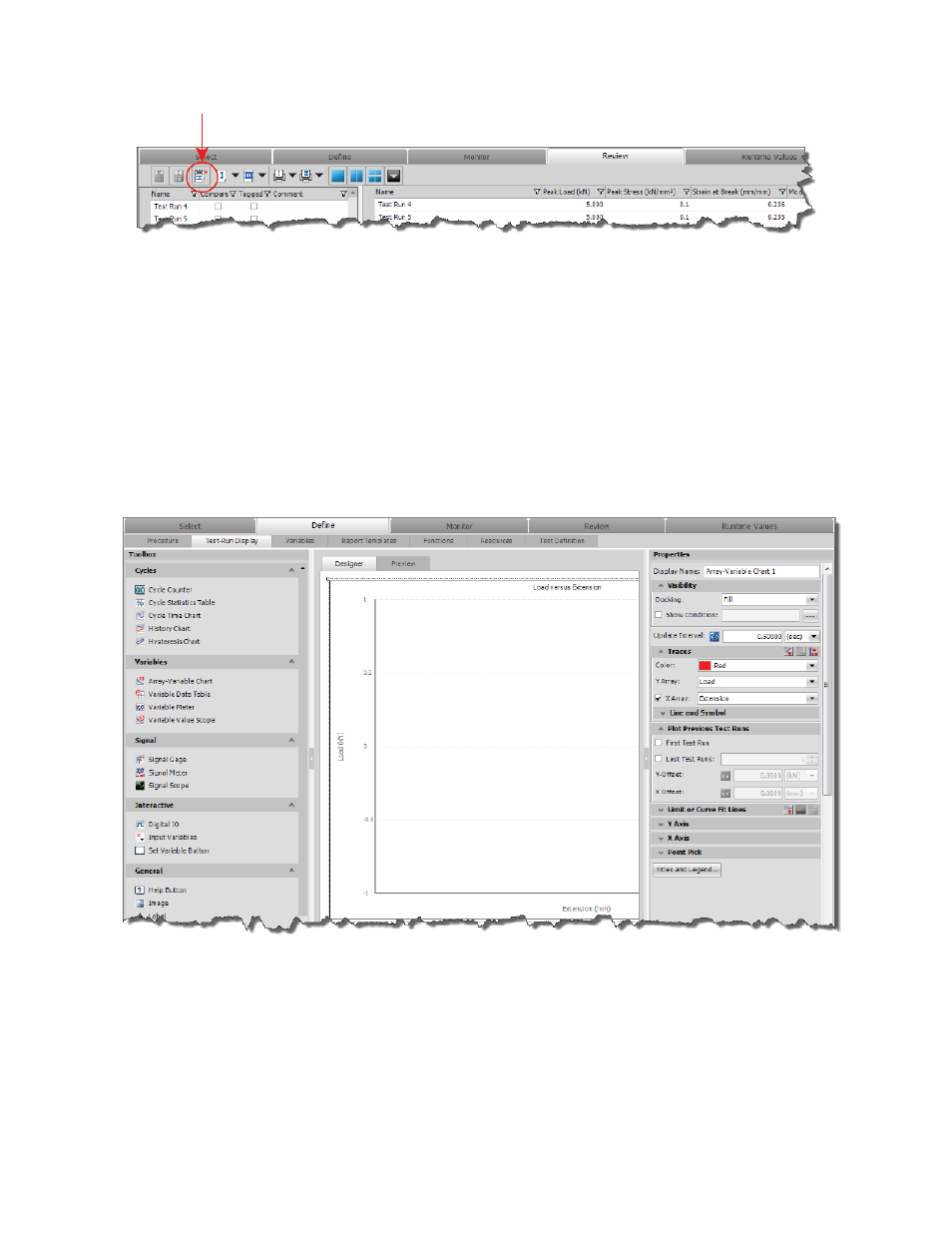

Array-Variable Chart on the Test-Run Display Subtab
Variables Subtab
When you click on the Variables subtab of the Define tab, the main window shows the variables used in
the test.
