MTS TW Elite User Manual
Page 111

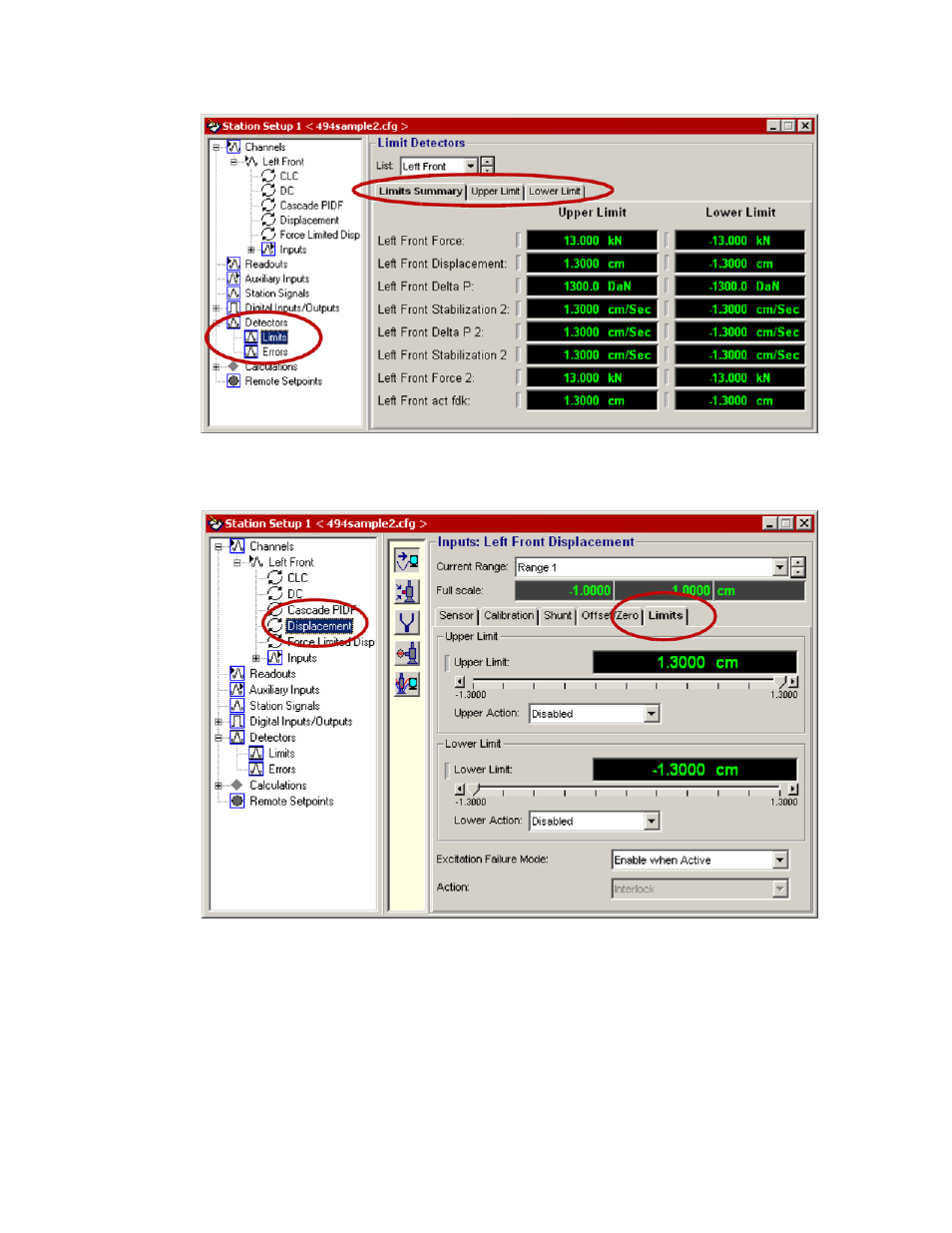

Station Manager Limits Summary Tab
Each channel input includes a Limits tab where you can define detector limits and actions.
Station Manager Inputs Limits Tab
Station Controls access
You can use the Detectors window to monitor and define detector limits and actions. Click the Detectors
button on the Station Manager window’s Station Controls panel toolbar to view the Detectors window. For
more information on using the Station Manager application to set limit detectors, see the MTS Series 793
Control Software Manual.
MTS TestSuite | 111
Considerations for Servohydraulic Systems
