Electrical installation
Control terminals
Important notes
l
91
EDKVF9338 DE/EN/FR 4.0
How to connect the shield
3
1
0
2
9300vec063

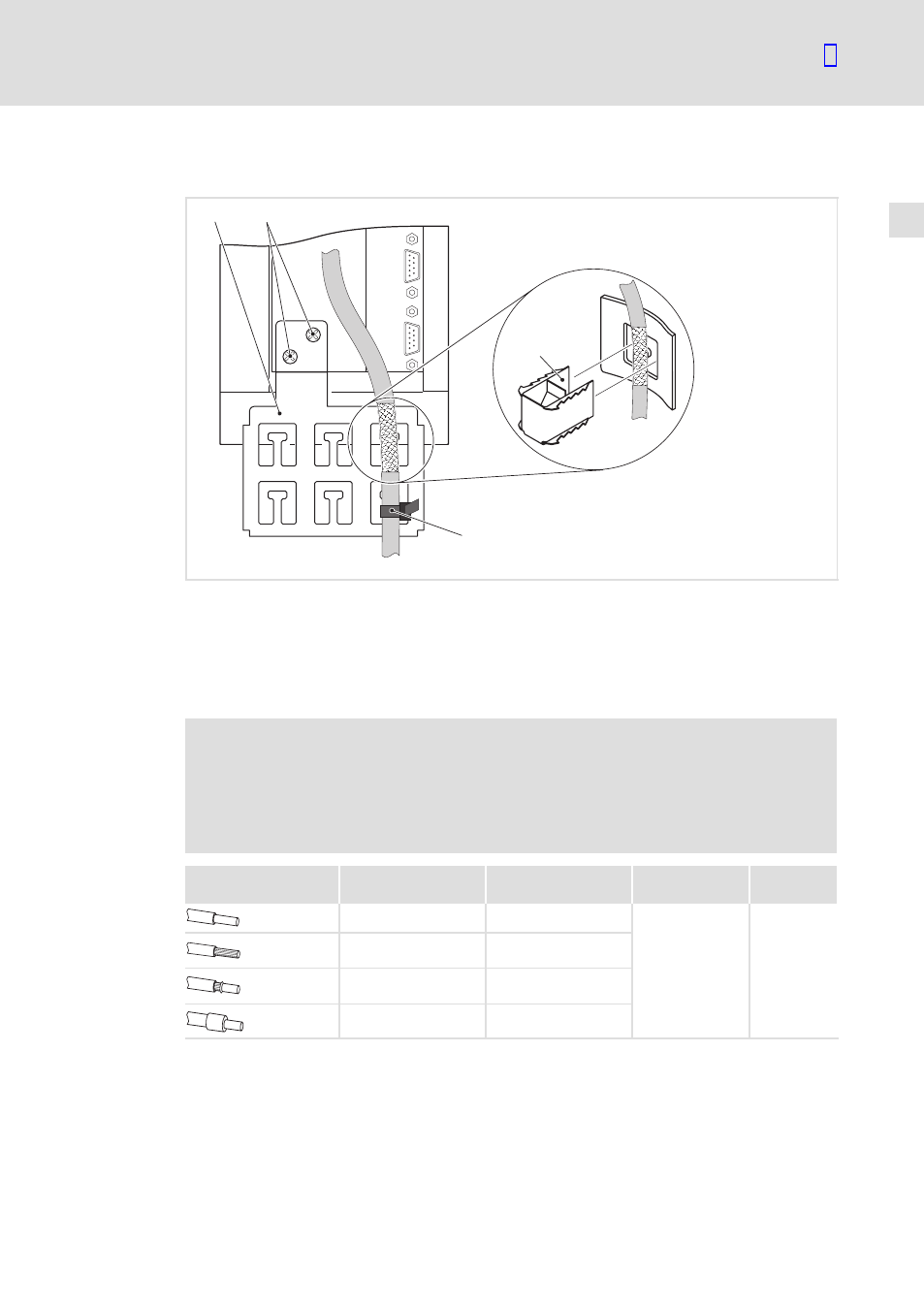

Fig. 5−9
Connection of the cable shield with shield clip and strain relief with cable binder
0 Shield sheet
1 Fasten shield sheet with two screws M4 × 12 mm at the bottom of the control card
2 Connect cable shield with shield clip to the shield sheet
3 Provide a strain relief of the control cable at the shield sheet by means of a cable binder
Terminal data
(
Stop!
ƒ
Connect or disconnect the terminal strips only if the controller is
disconnected from the mains!
ƒ
Wire the terminal strips before connecting them!
ƒ
Unused terminal strips must also be plugged on to protect the contacts.
Cable type
Wire end ferrule
Maximum cable
cross−section
Tightening torque Stripping
length
Rigid
—
2.5 mm
2
(AWG 14)
0.5 ... 0.6 Nm
(4.4 ... 5.3 lb−in)
5 mm
Flexible
Without wire end
ferrule
2.5 mm
2
(AWG 14)
Flexible
Wire end ferrule
without plastic sleeve
2.5 mm
2
(AWG 14)
Flexible
Wire end ferrule with
plastic sleeve
2.5 mm
2
(AWG 14)
