Mechanical installation
Fastening the controller on mounting plate
4
l
79 EDKVF9338 DE/EN/FR 4.0
4.5 Fastening the controller on mounting plate
}
Danger!
Risk of injury due to the high weight of the controller.
The controller has to be carried using the eyebolts and an adequate lifting tool.
 ‚
1
2
0
4
3
4
3
9300vec070

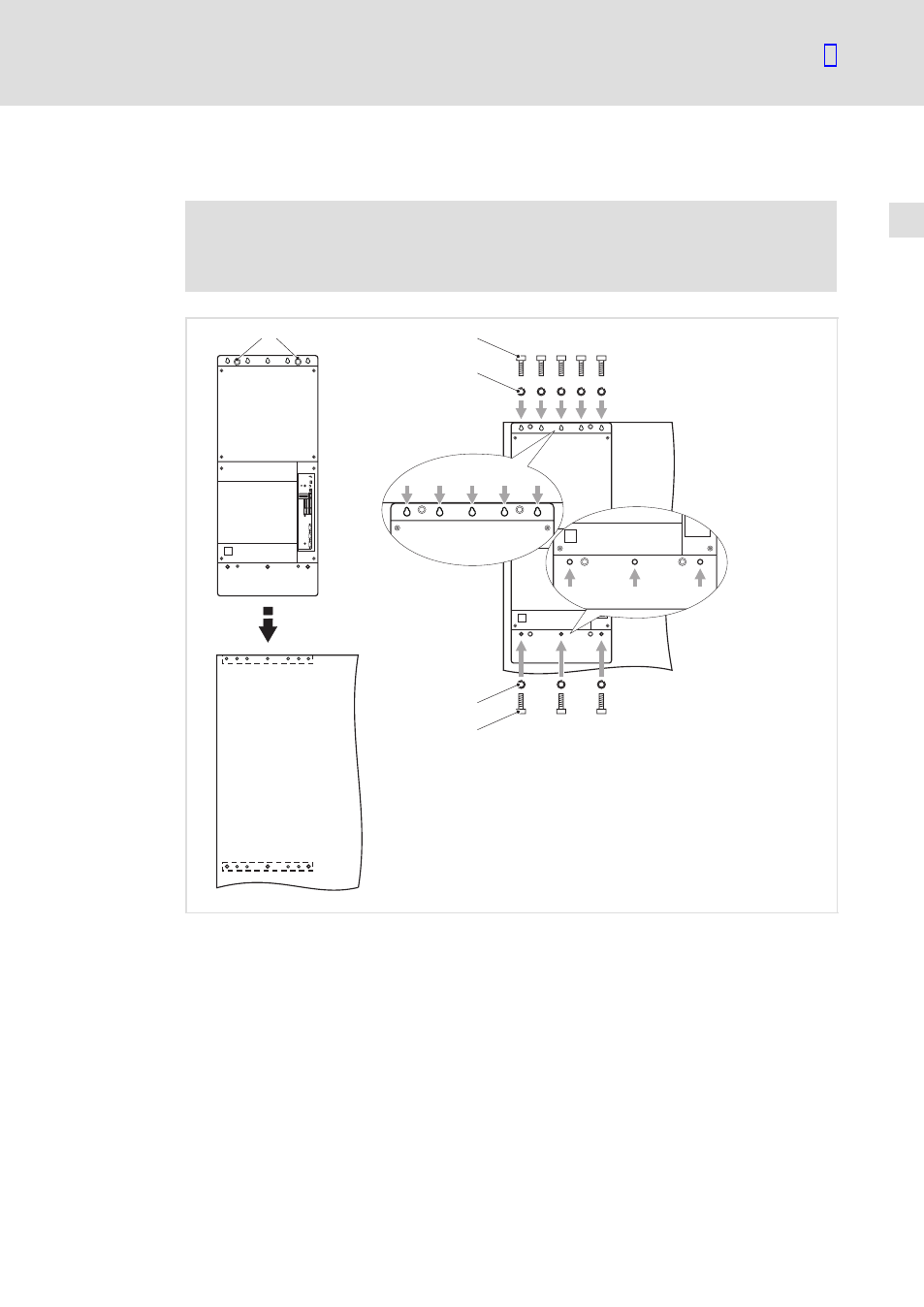

Fig.4−4 Fastening the controller on mounting plate
0 Eye bolts 3 8 hexagon socket screws M8 × 25 mm
1 Controller 4 8 spring washers M8
2 Mounting plate
1. Put the controller on the mounting plate.
2. Fasten the controller exactly at the illustrated points using 5 hexagon socket screws
and spring washers at the top and 3 hexagon socket screws and spring washers at
the bottom.
