2 incremental encoder with ttl level at x8, Incremental encoder with ttl level at x8, Electrical installation – Lenze EVF9338 User Manual

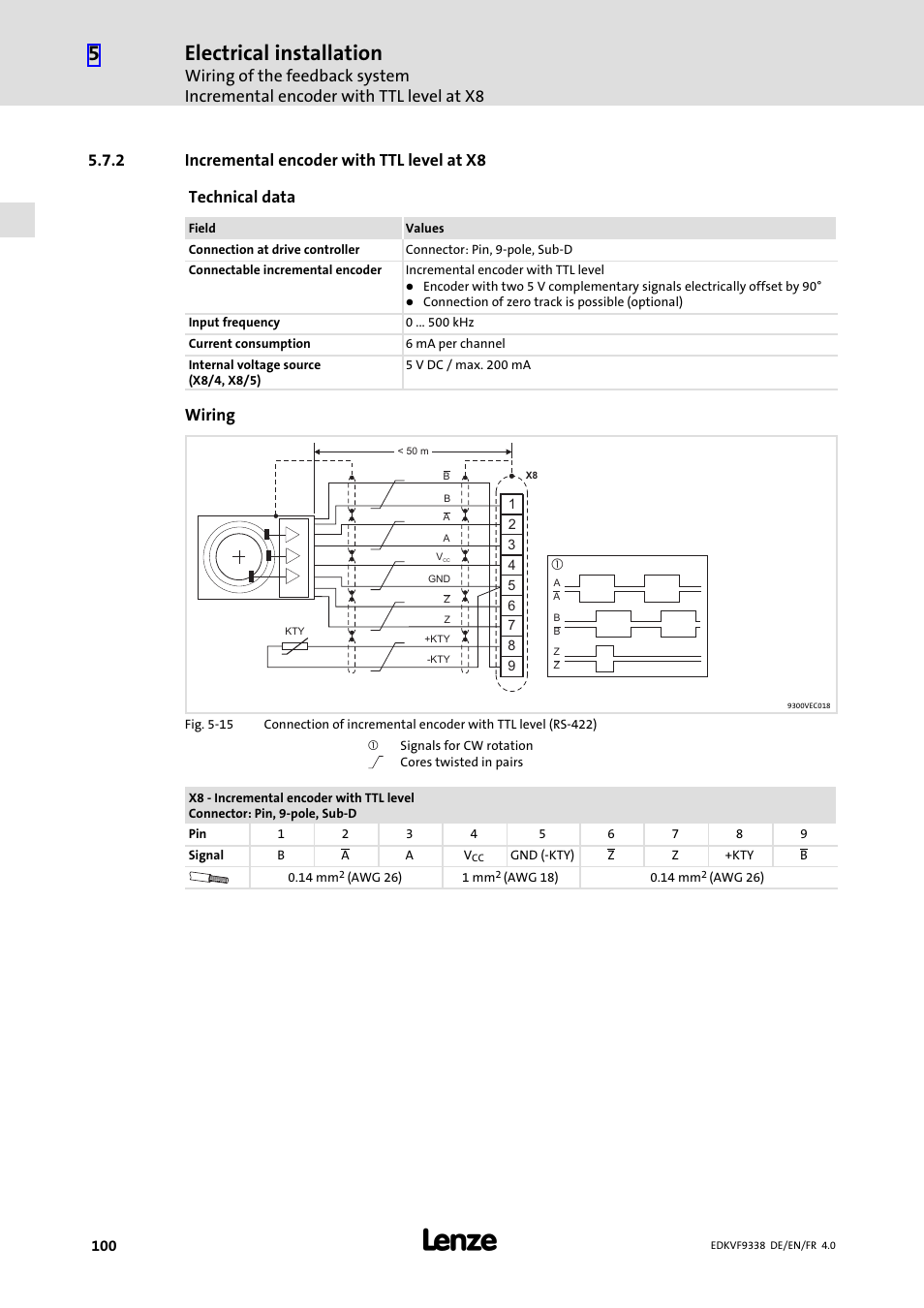

Page 100: Wiring
