6
Commissioning
6.2
Possible settings via DIP switch
32
Lenze · E94AYCIB communication module (INTERBUS) · Communication Manual · DMS 4.0 EN · 02/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.2.2
Setting the number of parameter data words
• The number of parameter data words can be set via the switches 5 and 6.
• 0, 1, 2 order 4 parameter data words can be used.
• The current setting is displayed in the »Engineer« in
Note!
The data word sum (process data word + parameter data words) has to consist of 1 ... 10
words (16 bits/word).
Impermissible settings are reported by the BE LED (red blinking).
The communication module then operates internally with the following values:
• 2 process data words (PD)
• 1 parameter data word (PCP)

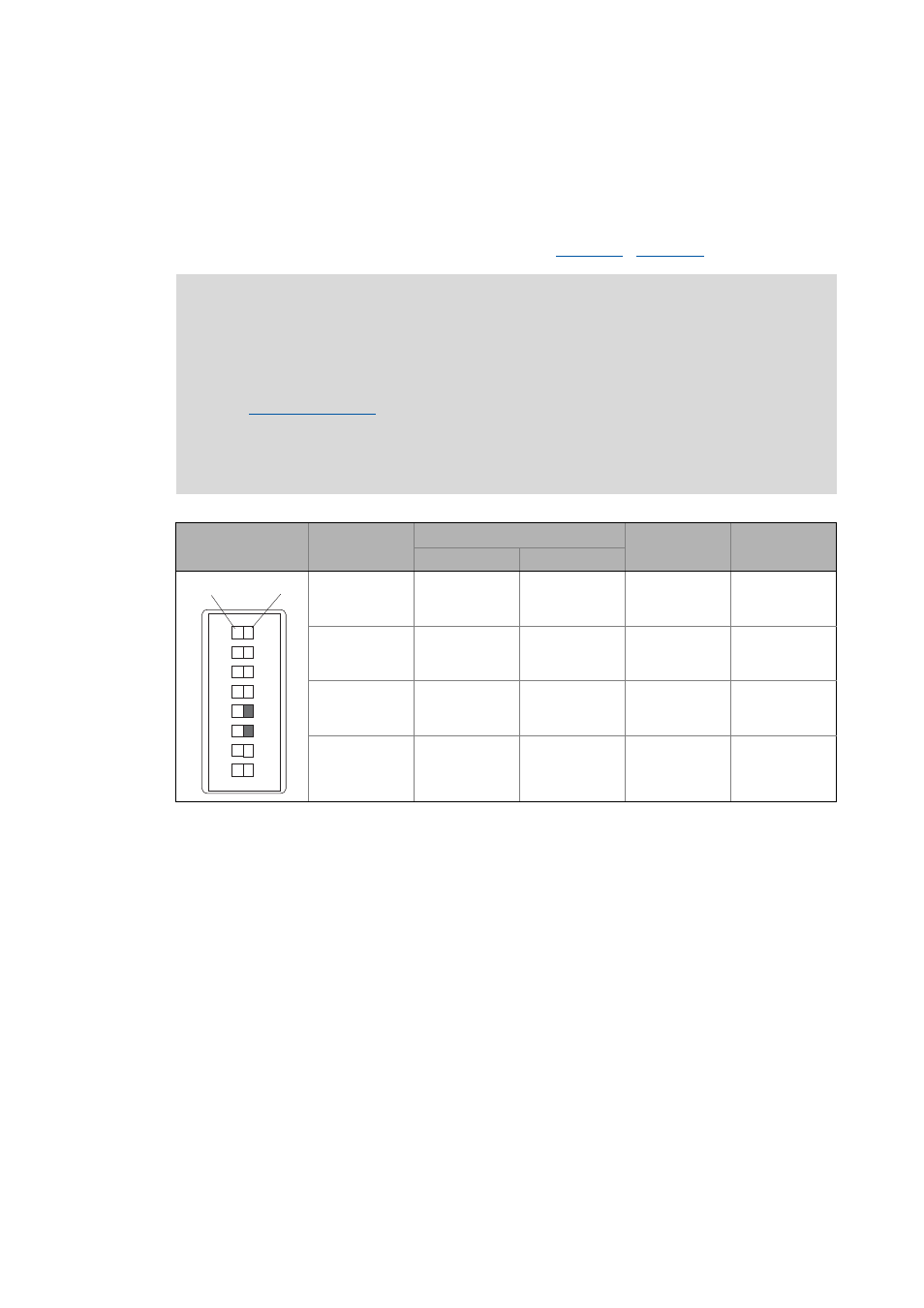

DIP switch
Number of PCP
Switch
Max. number of
PD
ID code
[hex]
5
6
0
OFF
OFF
10
0x03
1
OFF
ON
9
0xE3
2
ON
OFF
8
0xE0
4
ON
ON
6
0xE1
12345678
ON
OFF
