CHAPTER 7: Bench Configuration and Testing
65
1
2
4
5
6
A
B
C
D
E
3
1
2
4
5
6
A
B
C
D
E
3
Local Multiserver
Async terminal
(DTE, DB25)
Async terminal
(DTE, DB25)
Async terminal
(DTE, DB25)
Remote Multiserver
Interconnect link

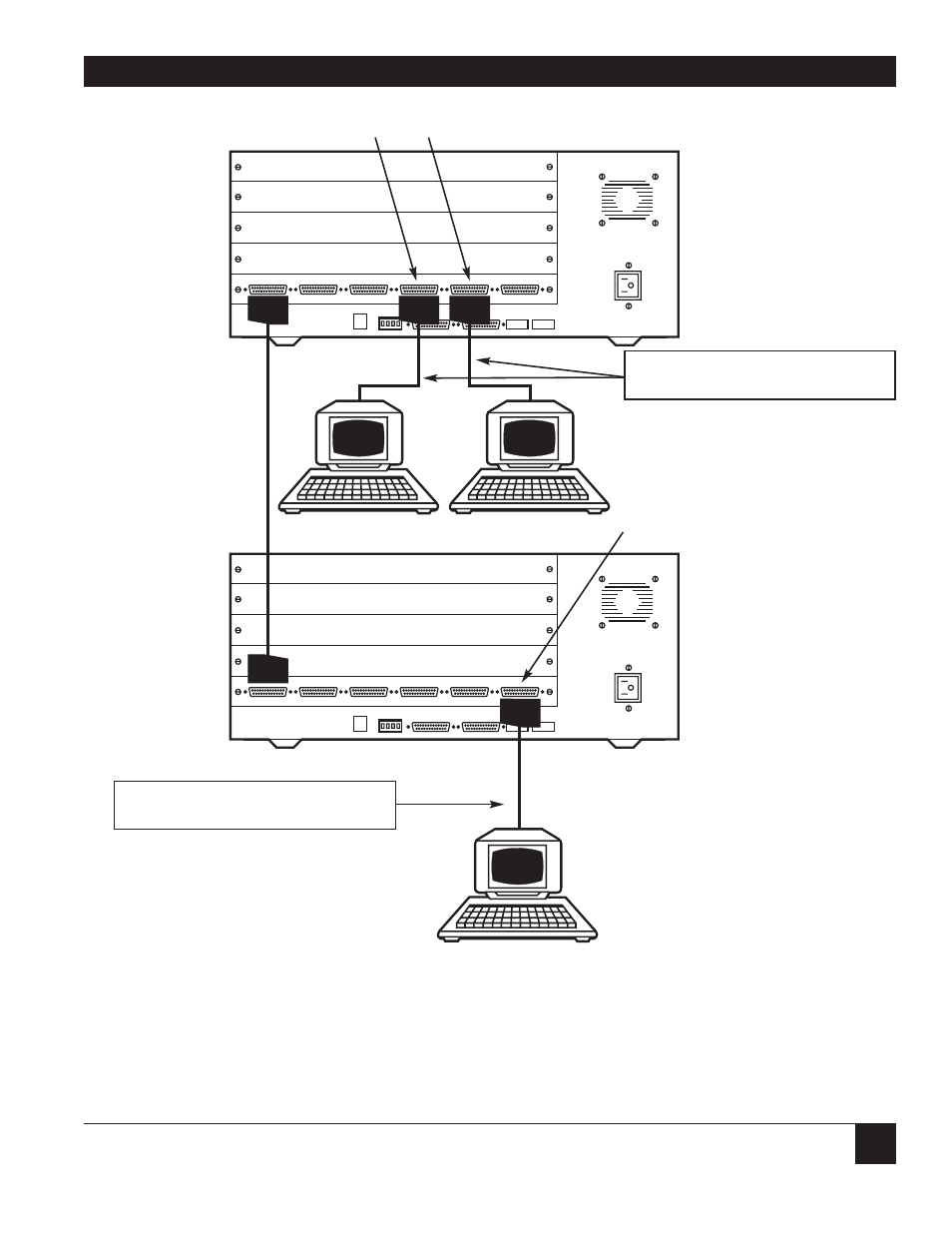

Figure 7-5.
Testing Asynchronous Data Channels. Connect terminals to any two asynchronous data
channels and transmit data between them. (See the explanation on the next page.)
Straight-Through Male-to-Male Cable (EZ422)
or
Straight-Through Male-to-Female Cable (EDN16C-M/F)
Straight-Through Male-to-Male Cable (EZ422)
or
Straight-Through Male-to-Female Cable (EDN16C-M/F)
Port A4
Port A5
Port A6
