D UAL L INK P OINT - TO -P OINT
Figure 3-5 illustrates a dual-link, point-to-point application. All traffic between Multiserver nodes is load-
balanced between Link A and Link B. In the event of a single link failure, all traffic is automatically rerouted
over the secondary link (link B).
In a single-link, point-to-point application, the interconnect link can be configured from 9.6 to 72 Kbps.
When load-balancing, each link must necessarily be slower that in a single-link application. So even though
the aggregate link speed available might equal or exceed the single-link application, the slower links may limit
the number or certain types of devices that can operate on the network. This will depend upon your
particular application.
LINK B
MULTISERVER
5000
FAX MACHINE
MULTISERVER
5000
NODE B NODE A
LINK A
PBX
ASCII TERMINAL
PC
FAX MACHINE
PBX
HOST

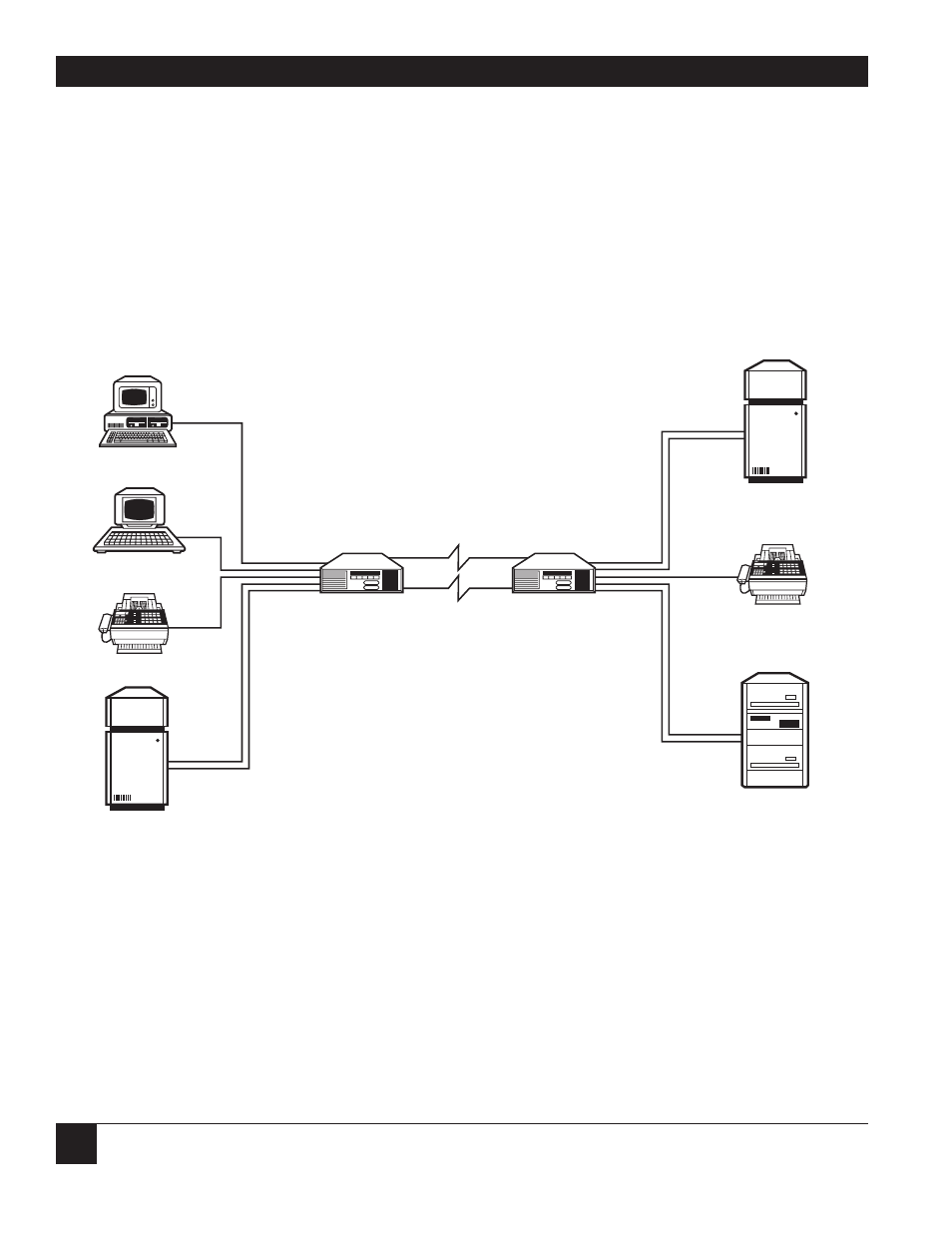

Figure 3-5. Typical Point-to-Point, Dual Link with Load Balancing.
