SQM-242 Operating Manual
2.4 SQM-242 Card Connections
The control output and sensor input connectors to the SQM-242 card are shown
below. Refer to this drawing in the subsequent hookup instructions.

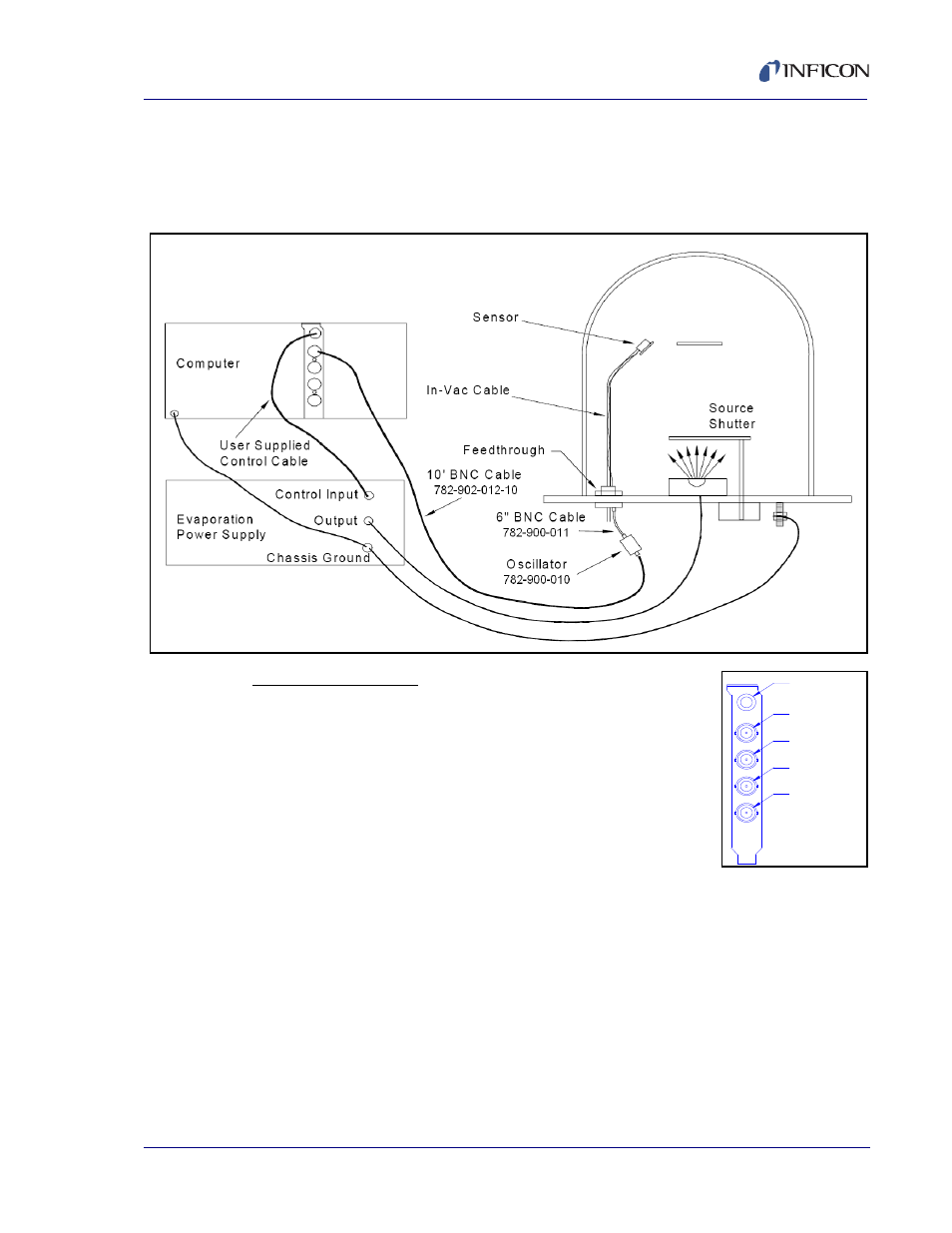

Figure 2-3 SQM-242 Setup
Sensor Connections
A BNC cable connects the SQM-242 sensor input to the
"instrument" connector on the remote oscillator. The
maximum length is 50 feet (15 meters).
To ensure proper operation of the SQM-242, use oscillators
manufactured by INFICON [PN 782-900-010].
The connection from the remote oscillator "feedthru"
connector to the vacuum chamber feedthrough is made using
a short 6 inch (15 cm) cable with BNC male to female
connectors [PN 782-902-011]. Inside the vacuum chamber, your in-vac cable must
be no longer than 36 inches (91.4 cm). It connects from the feed-through to the
crystal sensor.
NOTE: The SQM-242 will not work with INFICON ModeLock oscillators.
Sensor 1
Sensor 2
Sensor 3
Sensor 4
Power Supply
Control Outputs
