7-8

Maintenance tasks

jinb

80

e1

-h

Op

er

at

in

g M

a

nua

l

(1

01

2)

5

Unscrew the cover on the bottom of the TMH71 using a special tool (calliper face

spanner).

6

After removing the cover, the lubricant reservoir will be accessible. Pull out the

lubricant reservoir using a screwdriver and dispose it off according to local
regulations.

7

Insert new lubricant reservoir.

Refer to

Fig. 7-4

.

8

Replace the O seal (

Fig. 7-4

/2) by a new O-seal. Verify that the new O-ring is inserted

in the proper position. An incorrectly inserted O-ring may cause large leaks and the
malfunction of the equipment.

9

Then assemble and tighten the cover.

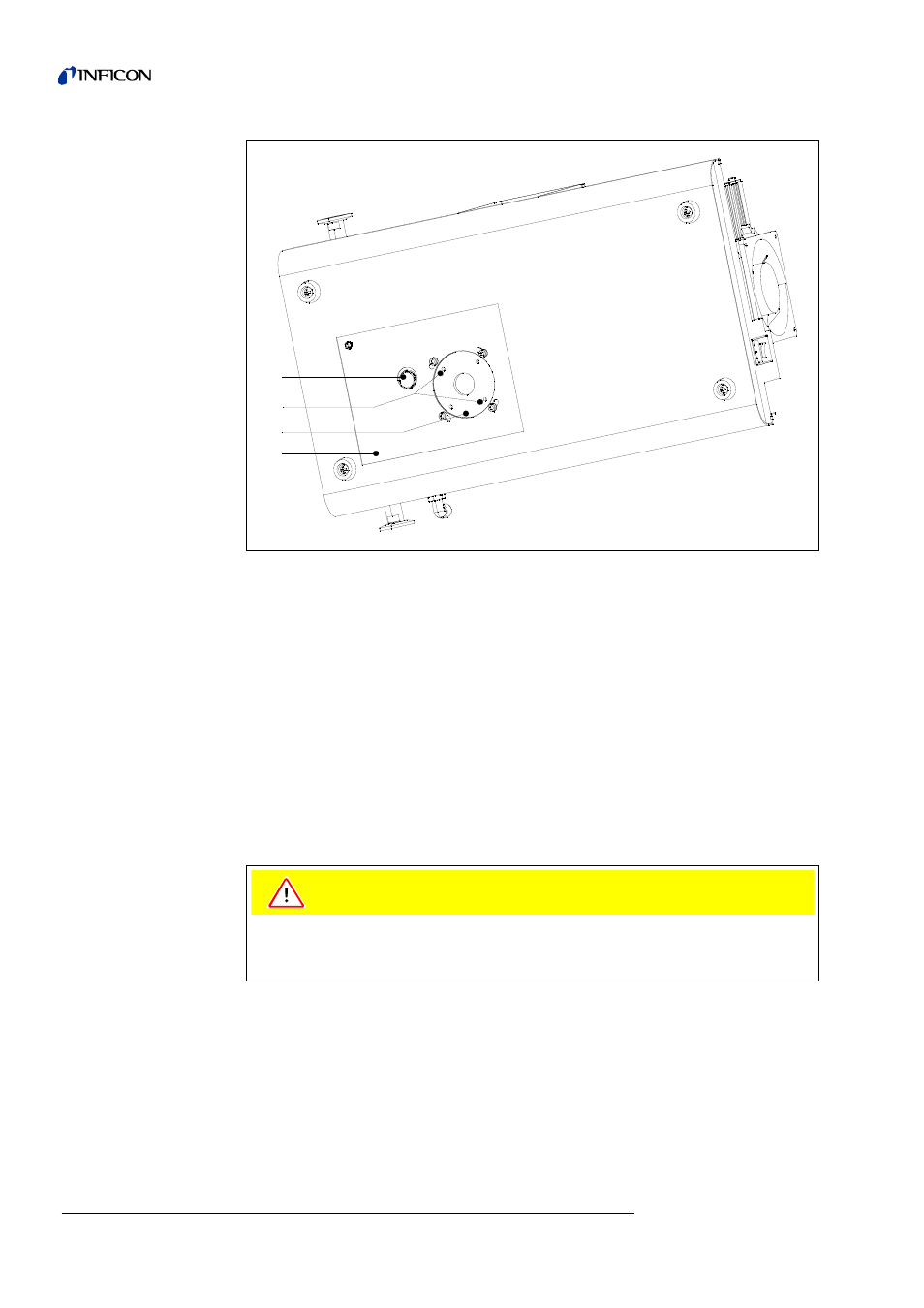

Fig. 7-3 Cover of the lubricant reservoir TMH 071

Item Description

Item Description

1

Fore-vacuum connection

3

Cover of the lubricant reservoir
TMH 071

2

Pocket for special tool

4

Inspection port

1

2

3

4

Caution

Do not press the lubricant reservoir completely in. The lubricant reservoir is properly
positioned by twisting in the cover. Also refer to the Operating Manual Differer PM
800 504 BN.
