INFICON Helium Leak Detector Modul1000 User Manual
Page 49
Operation
6-8
jinb
80
e1
-h
Op
er
at
in
g M
a
nua
l
(1
01
2)

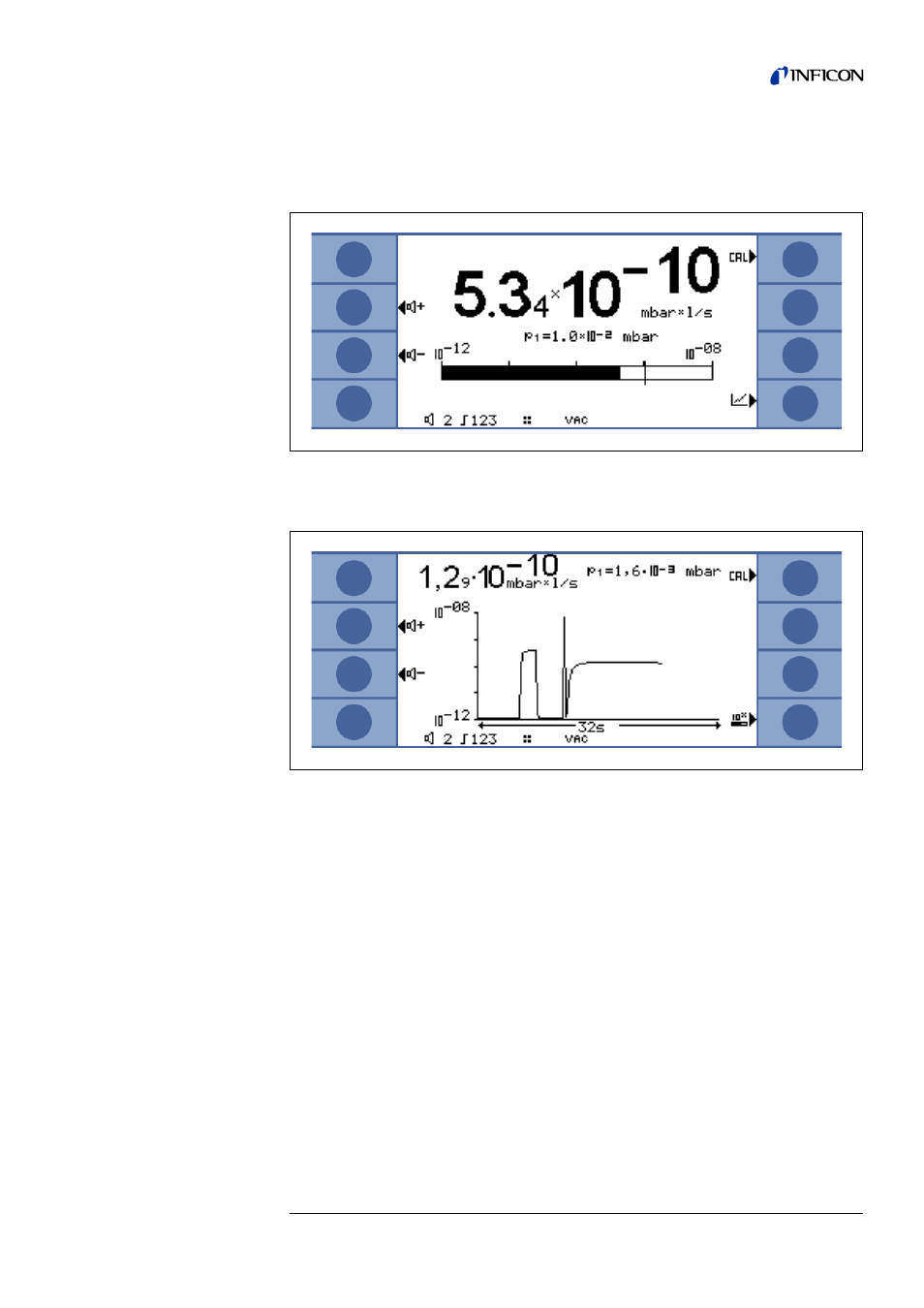

Display of measured values
In Measuring mode, two ways of displaying the measured values are available.
•
Numeric display with big sized numbers as bar graph.
•
Graphic display as function of the measuring time
You can switch over between the numeric display and the graphic display using the
button No. 8. It is labelled with the symbols for numeric and graphic display.
Fig. 6-7
Fig. 6-8
