INFICON Helium Leak Detector Modul1000 User Manual
Page 30

4-4
Installation
jinb
80
e1
-h
Op
er
at
in
g M
a
nua
l
(1
01
2)
Recorder Output (analogue)
The two Recorder outputs (analogue outputs) may be used to log the leak rate, the
inlet pressure or the fore-vacuum pressure.
The output voltage is updated every 50 ms.
RS232 Interface
The RS232 interface serves for connecting a PC directly to the Modul1000.
The Modul1000 is then directly controlled by the respective instruction sets as
described in the interface description.

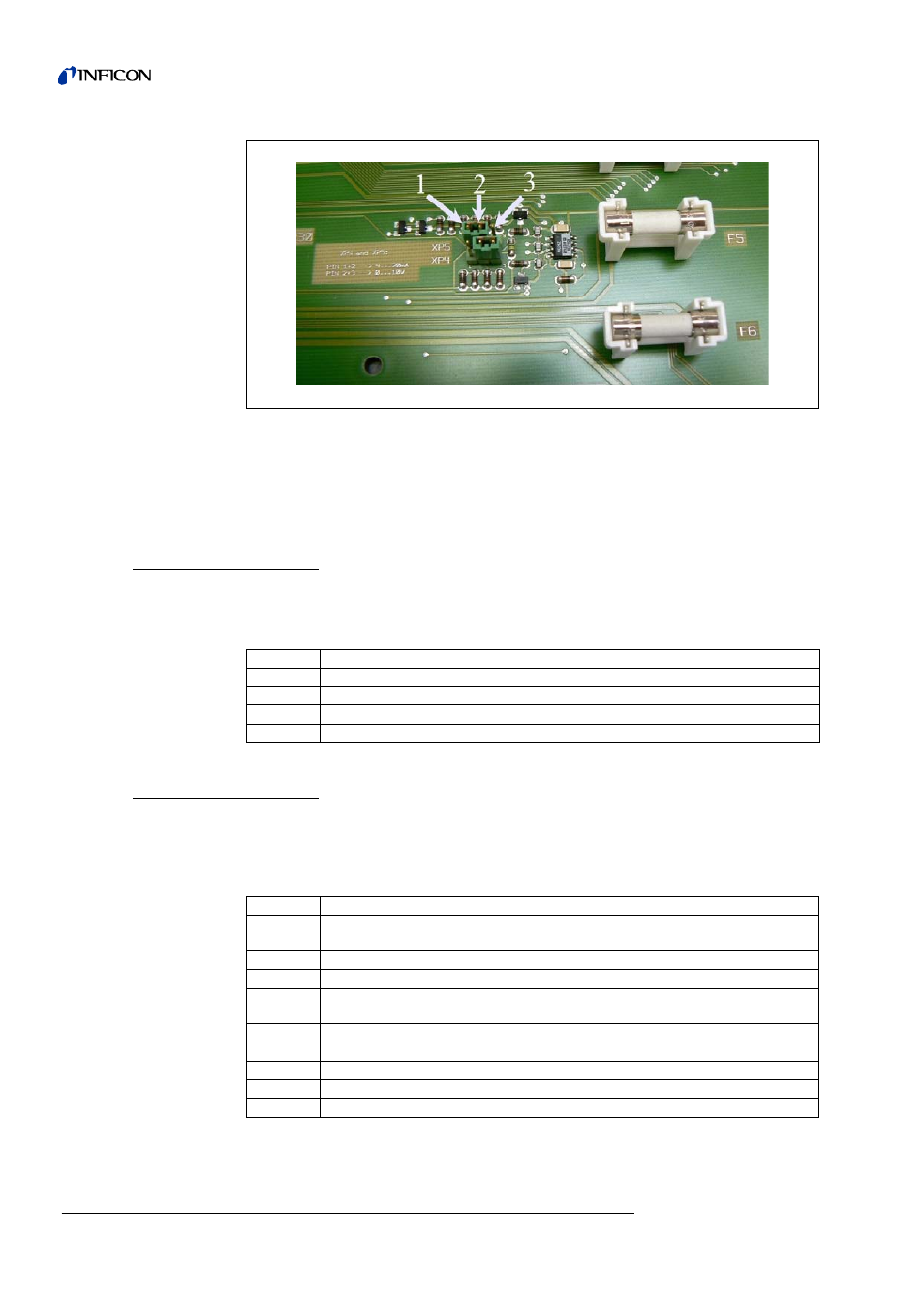

Fig. 4-2 Jumper XP5 and XP4
Item
Description
Item
Description
1
Pin 1
3
Pin 3
2
Pin 2
Pin
Assignment
1
Recorder
Output 1
(analogue output)
2
GND
3
GND
4
Recorder
Output 2
(analogue output)
Pin
Assignment
1
24V can tied-in via the jumper XT2, maximum current consumption 0.3 A (Pin 2
and 3 connected). As delivered, 24 V are not tied-in, Pin 1 and 2 connected.
2
TxD
3
RxD
4
GND 24 V can be tied-in via jumper XT1 (Pin 2 and 3 connected). On delivery,
GND 24 V is not tied-in (Pin 1 and 2 connected).
5
GND RS232
6
not used
7
not used
8
not used
9
not used
