3-4
Description of equipment
jinb
80
e1
-h
Op
er
at
in
g M
a
nua
l
(1
01
1)
3.3.1 Desktop operation
The control unit can be placed on even desktops and does not slip.
3.3.2 Installation in switch cabinet
The control panel (Control unit as mounting version) is intended to be integrated in
the front of a 19’' rack system.

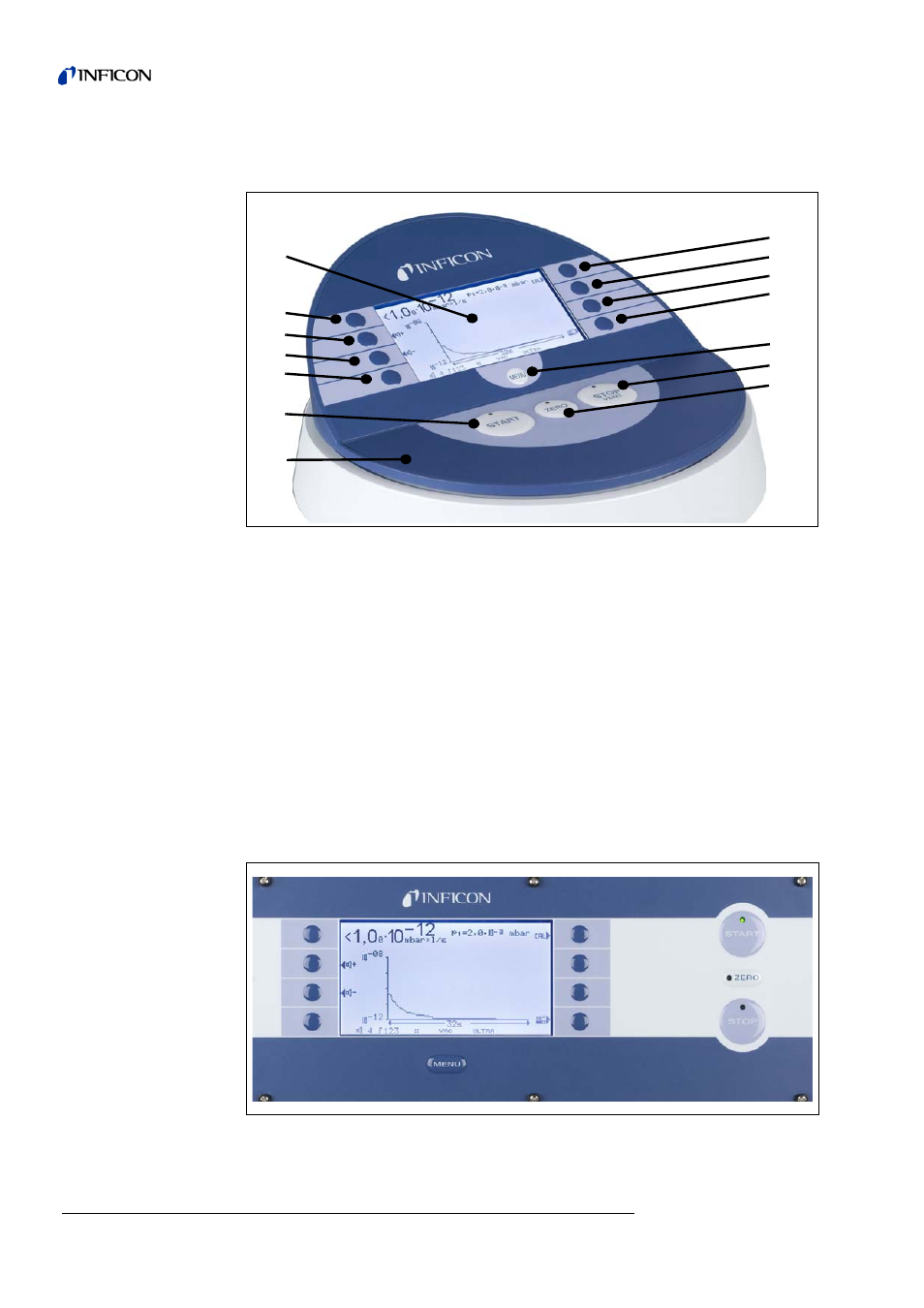

Fig. 3-5 Control Unit for Desktop Operation
Item Description Item Description
1 LCD display 8 Soft Key no. 5
2 Soft Key no. 1 9 Soft Key no. 6
3 Soft Key no. 2 10 Soft Key no. 7
4 Soft Key no. 3 11 Soft Key no. 8
5 Soft Key no. 4 12 Menu button
6 START button with LED 12 STOP / Vent button with LED
7 Control Unit 14 ZERO button with LED
1
6
5
4
3
2
7
8
9
10
11
12
13
14
Fig. 3-6 Control panel for the installation in a switch cabinet
