GSM Radio Module CSI-F-10 Page 78
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752
8.1.6 Extras

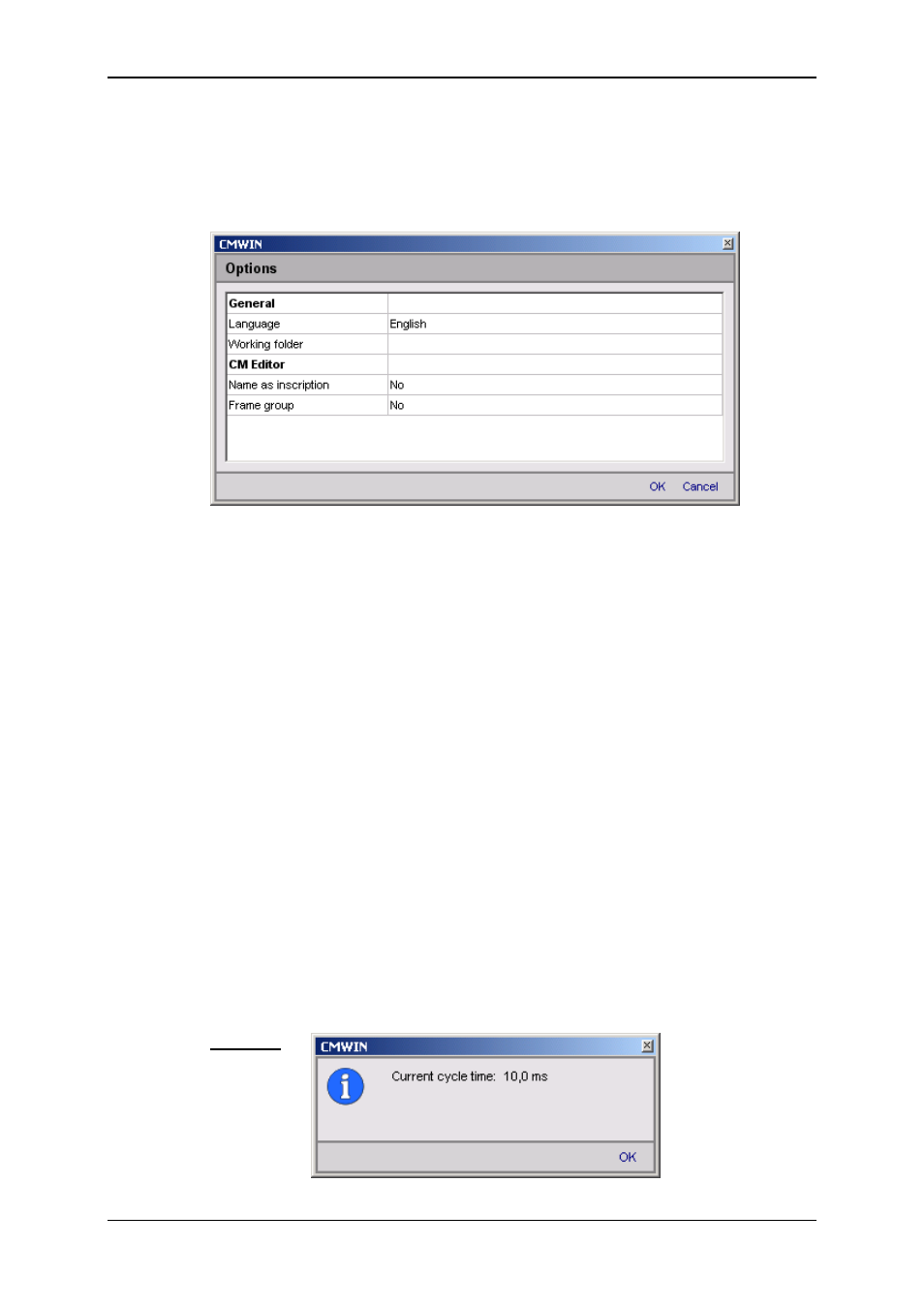

• The following window opens when the function Options is selected:
The selection buttons at the right-hand edge of the window appear after clicking
in the respective selection field.
- In the Language field, you can select either German, English or French as the
CMWIN system language.
- In the field Working folder you define the path for saving the CMWIN files
(CM programs, recordings, constellation and configuration files, ...).
- In the field Name as inscription you define whether or not the particular
function name (e.g. Measured value 2, Action 4) is to be displayed as the
function inscription in the "Linked functions" window.
If "No" is selected, then you have the option of entering an inscription text
manually into the function parameters.
- In the field Frame group you define whether or not a frame is to be shown
around generated groups in the CM program.
- Clicking on OK applies the settings and returns you to the main CMWIN
window.
Pressing Cancel takes you back without applying any changes.
• By using the Reset Options function you can reset all the modified options and
settings to the standard settings.
• Select the Display cycle time function to open the following window and to
display the current cycle time of the CM program.
Example:
