GSM Radio Module CSI-F-10 Page 26
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752

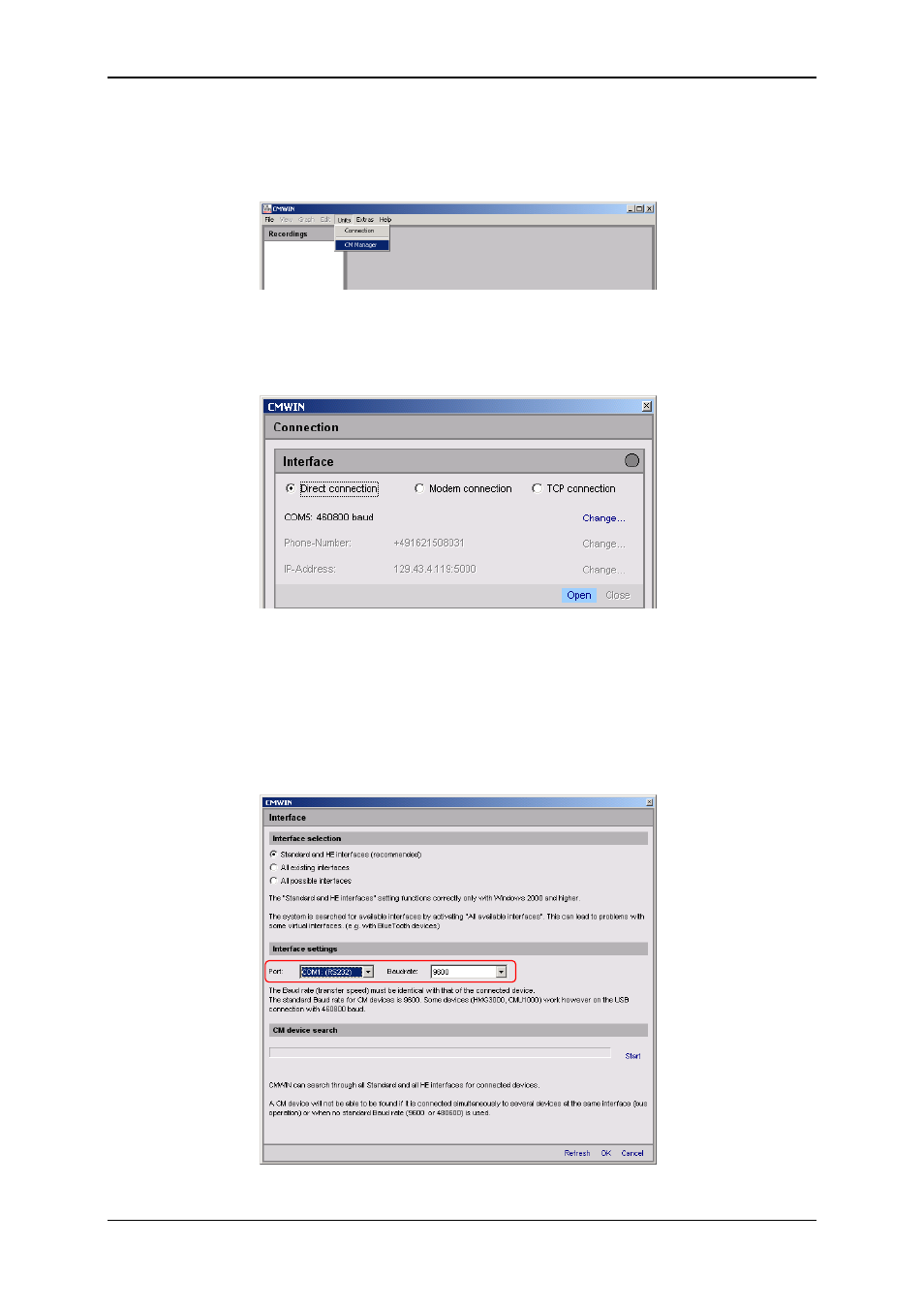

6.3.2 Connection Setup
• Start the HYDAC PC software CMWIN
• In the Units Menu, select the "CM Manager" option.
• If the Connection window does not open automatically, select
"Connection" in the menu bar of the CM Manager.
• Select the option "Direct connection" in the window that opens.
• Click on "Change" in the top line to open the window for the interface settings.
• Make the corresponding preselection for the port settings in the window that
opens under Interface selection.
• Select the relevant port address and Baud rate under Interface settings. (9600
für CSI-B-2) aus.
• Click "Refresh" to update the interfaces marked under Interface selection in
terms of availability.
• Click on “OK“ to apply the modified settings or “Cancel“ to discard these
changes. In either case you will then return to the Connection window.
