GSM Radio Module CSI-F-10 Page 37
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752

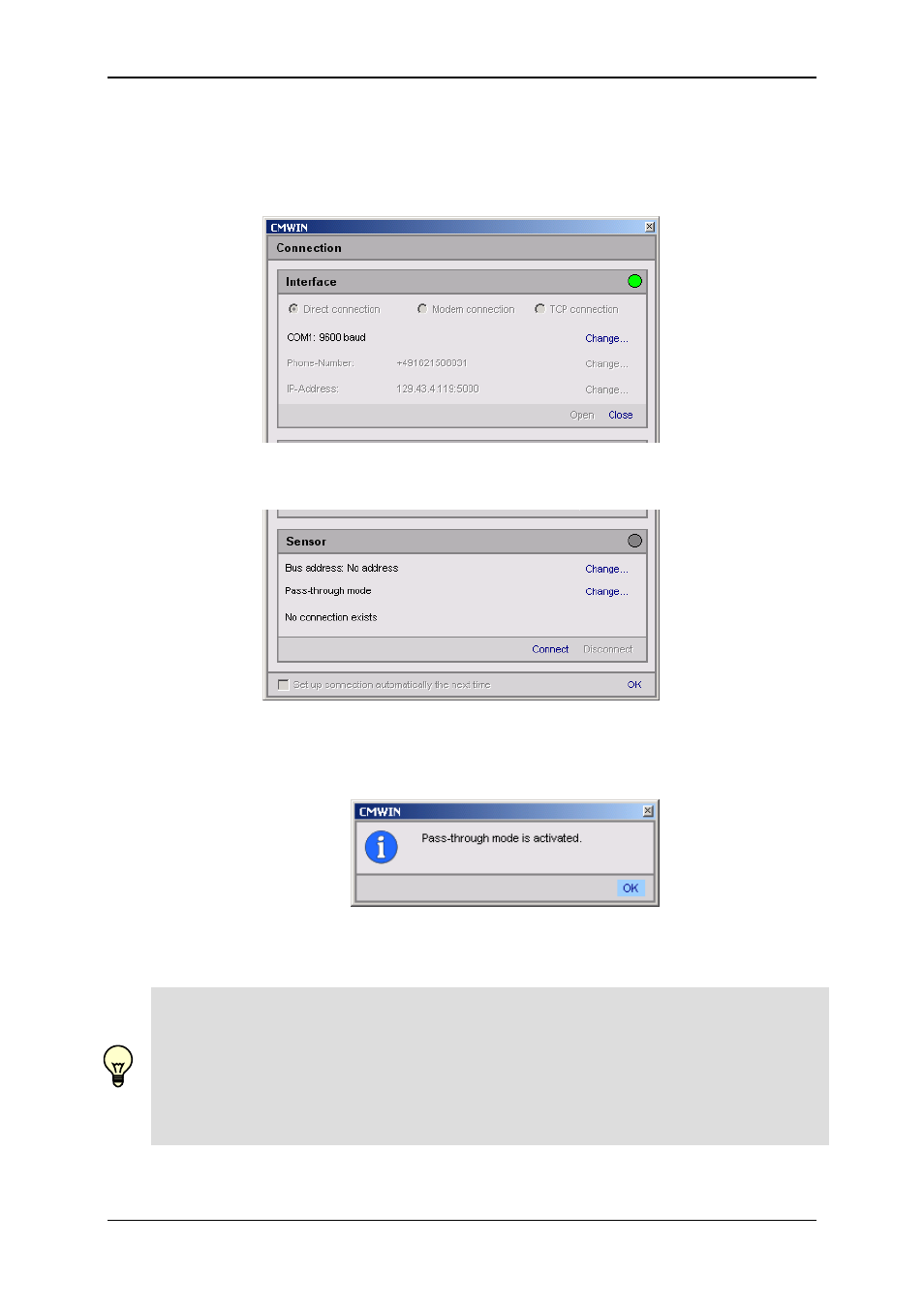

• In the Interface field, select the option "Open" in order to open the selected
interface (COM port).
The opened interface will be indicated by a green dot on the right-hand edge of
the window.
• In the Sensor field, specify whether you would like to connect to the CSI-F-10
GSM radio module direct, or to one of the sensors connected to it.
• Click on "Change" to open the window for the pass-through mode.
• Select Switch on, to transfer the HMG 510 into the pass-through mode.
Afterwards the following message appears:
• Confirm this with OK.
• "Com Mode" appears in the display of the HMG 510.
Note!
In the pass-through mode a device connected to the PC (in this case: HMG 510)
transfers the data direct to on of the connected sensors or to another device (in this
cae: CSI-F-10) and vice-versa. The PC is then no longer linked to the device directly
connected to it.
In the following example, a HYDACLab
® with the address "a" is connected to
connection 1 and a CS 1000 is connected to a CS 1000 with the address "b“ (see also
Chapter 6.3.2).
• Afterwards, proceed according to the three options described below.
