GSM Radio Module CSI-F-10 Page 69
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752
8 CM Editor
The CSI-F-10 GSM radio module processes its program in continuous cycles. You
generate the program with the CM Editor then load it into the device.
The CM Editor is a constituent part of the HYDAC PC software CMWIN, Version 3 or
higher, and provides you with various tools and functions for designing, integrating and
testing your CM program.

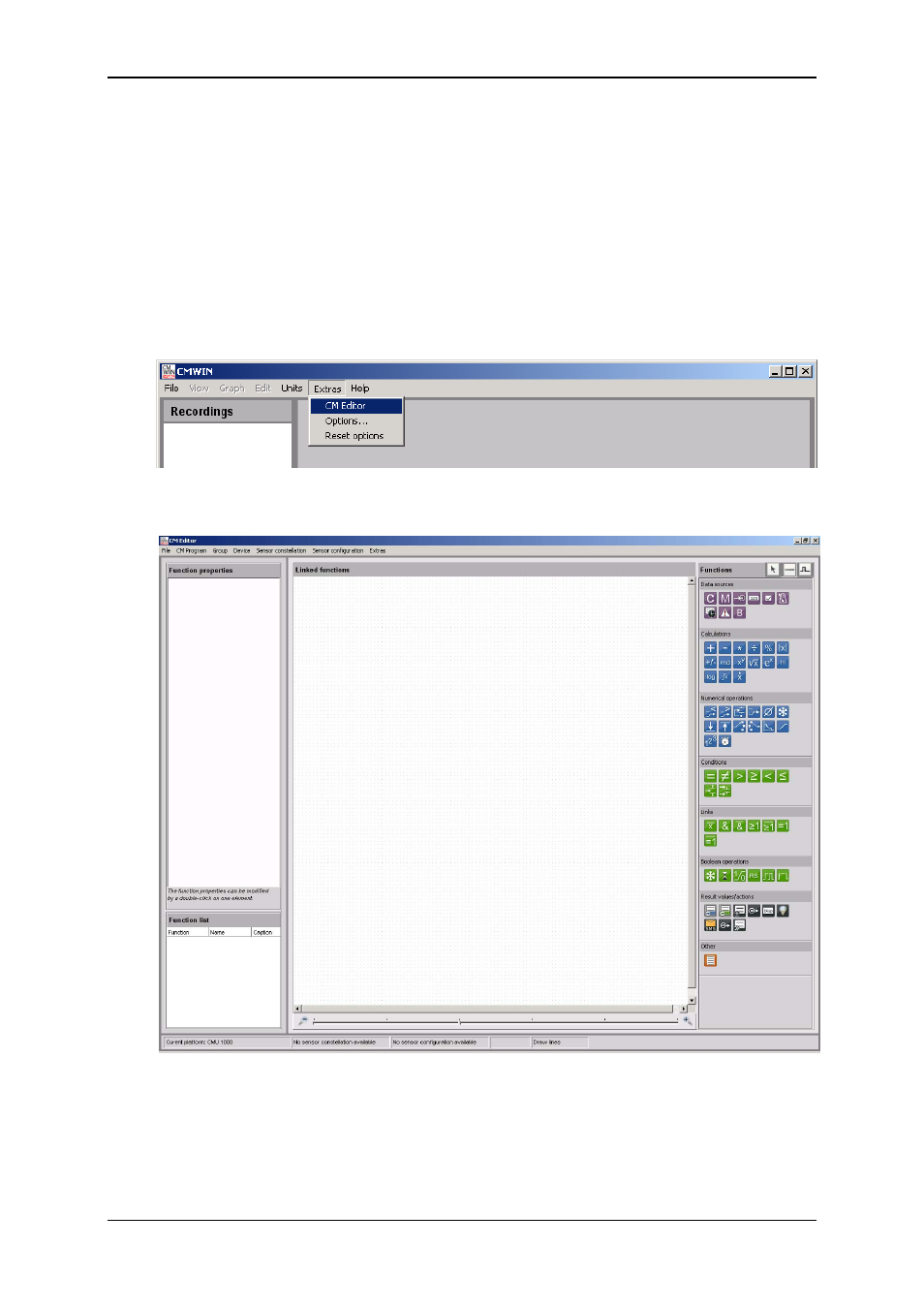

To open the Editor, proceed as follows:
• Start the HYDAC PC software CMWIN
• In the Extras Menu, select the "CM Editor" option.
• The following screen opens:
The menu structure and window properties of the Editor are explained below in greater
detail:
