HYDAC CSI-F-10 - Manual (Page 65)

GSM Radio Module CSI-F-10 Page 65
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752

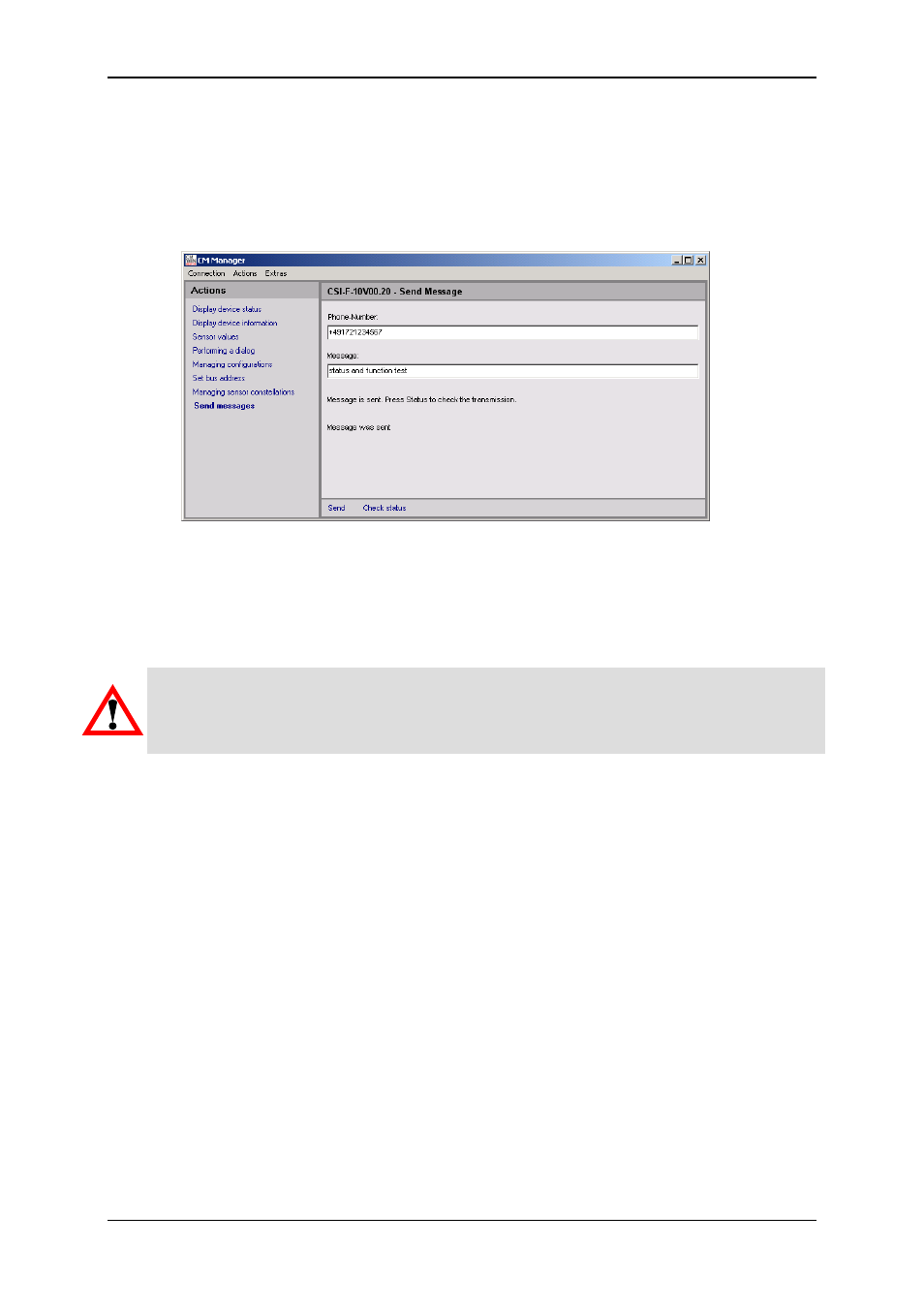

7.1.8 Sending a text message
The "Send text message“ serves mainly to test the GSM mobile radio connection.
- In the Telephone number field, input the required number (this is independent of the
telephone numbers in Chap. 7.1.4.1 Permissions).
- In the Message field, input the message text.
• Click "Send" to send the message.
• By clicking on "Check status" you can track the progress of the message
transfer and check the connection.
Warning!
Text messages cannot be sent if the CSI-F-10 is being accessed via GSM connection.
This function is only available with cable connection (e.g. connection via CSI-B-2,
HMG 510, CMU 1000).
