GSM Radio Module CSI-F-10 Page 18
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752
HSI Address "a"
HSI Address "b"
5 pole, max. 30m
5 pole, max. 30m
A
ZBE 26
B
8 pole, max. 30m
A
ZBE 41
B
In total
max. 40m

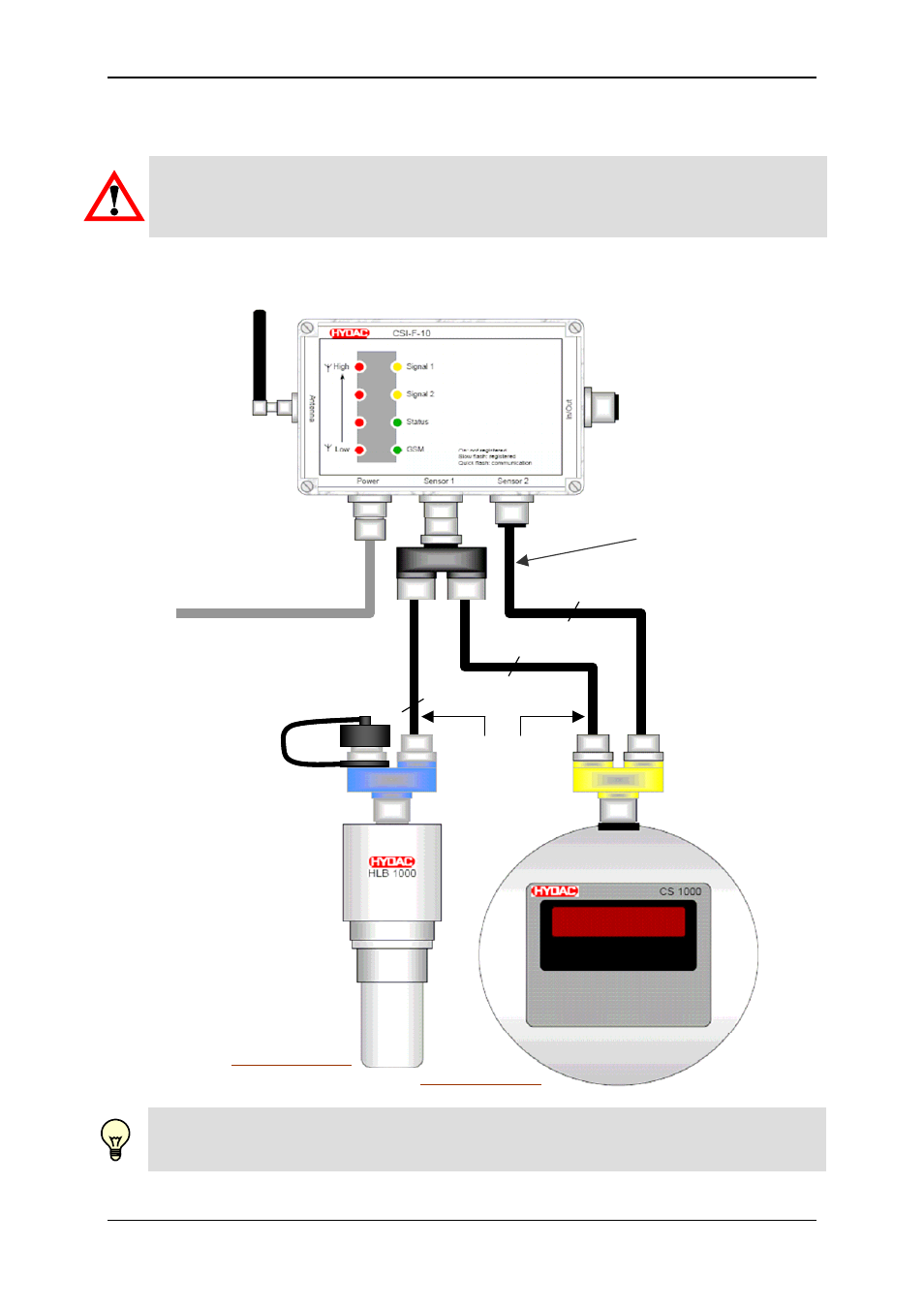

5.3 Connection examples for sensors
Warning!
The total length of the connected sensor cables (Sensor 1 + Sensor 2) may not exceed
max. 40 m. If this 40 m length is exceeded, there can be problems with the HSI signal
transmission.
5.3.1 HYDACLab
®
to Connection 1 and CS 1000 to Connection 2
Note!
Connection "A" of the ZBE 26 (blue Y adaptor) must be sealed using the protective cap
provided, to protect it from dirt and moisture!
ZBE 38
Voltage supply / HSI
see Chap. 6.3 to 6.6
In this case, only voltage
supply for CS 1000!
