GSM Radio Module CSI-F-10 Page 35
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752
6.4.1 Device Connection
• Connect a USB port on your PC with the USB socket of the HYDAC Portable
Data Recorder HMG 510 via an appropriate data cable (USB cable is supplied
with the HMG 510).
• Connect the CSI-F-10 with the HMG 510 using a 5-pole M12x1 sensor cable
(e.g. ZBE 30-02 or ZBE 30-05)

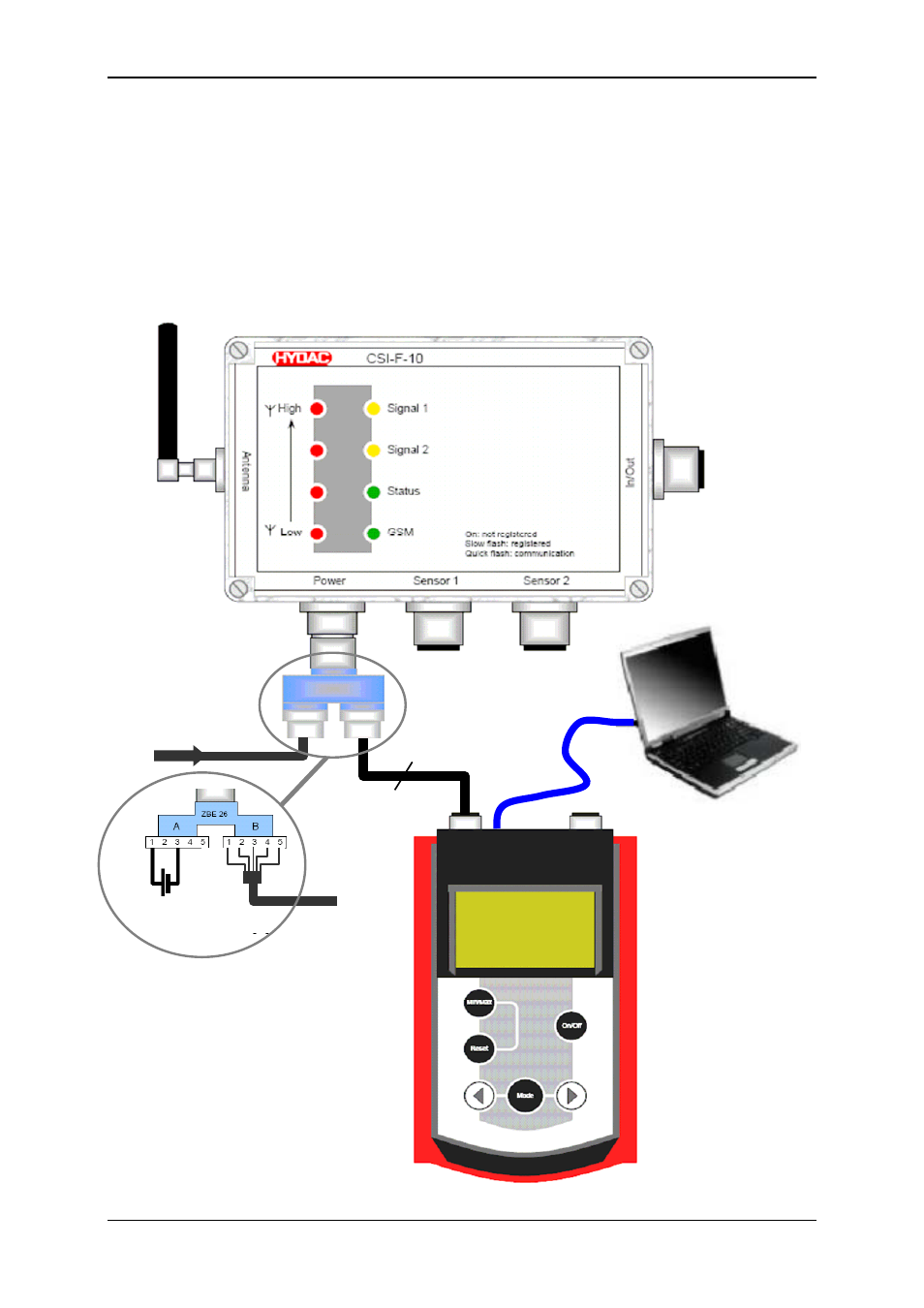

• Connect the voltage supply to the CSI-F-10 GSM radio module according to the
diagram.
M12x1, 5-pole
10,5..35 V DC
A ZBE 26 B
USB
Power
supply
