GSM Radio Module CSI-F-10 Page 21
Status 29.01.2009 HYDAC ELECTRONIC GMBH Part.-Nr.: 669752

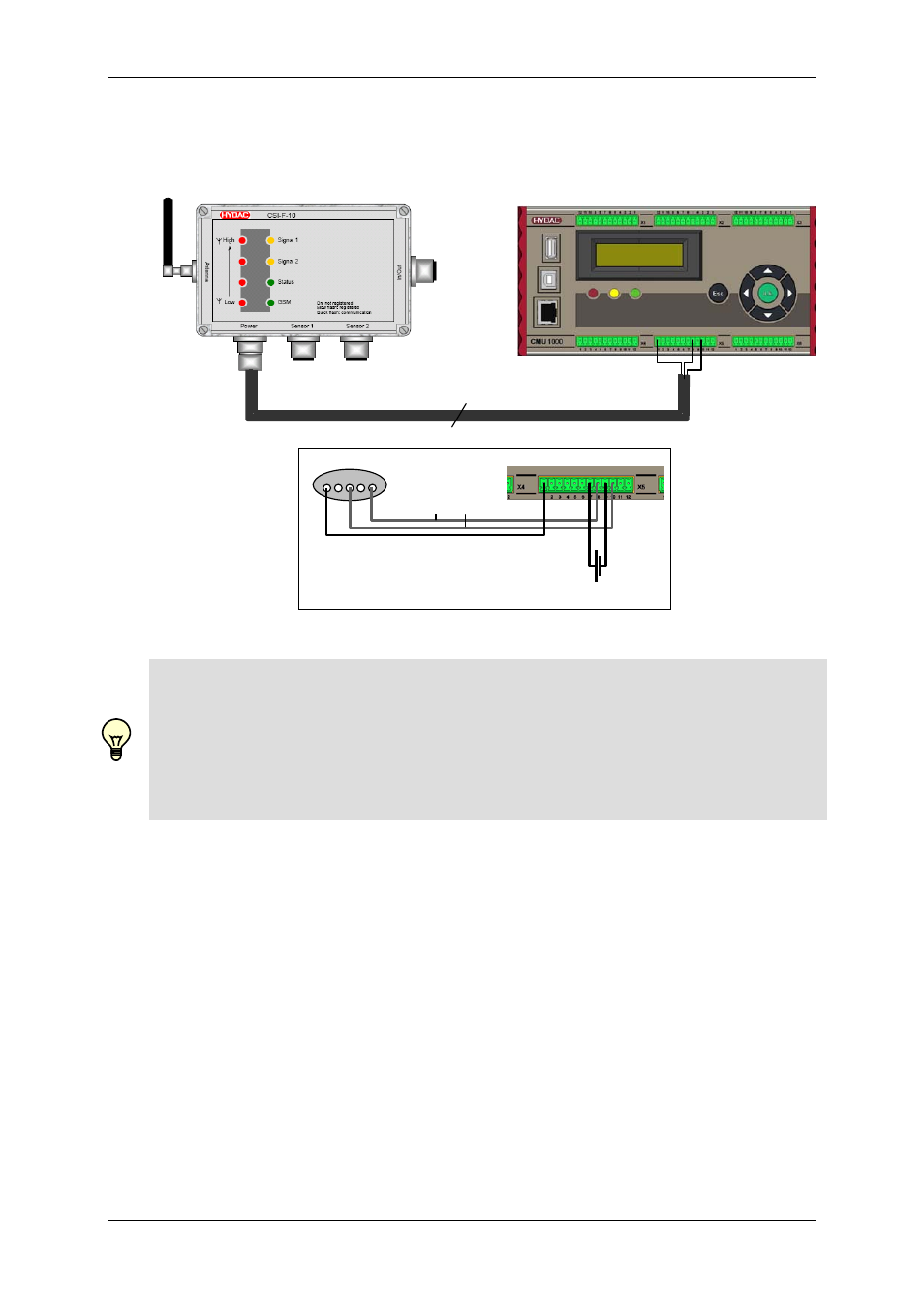

Connection to Condition Monitoring Unit CMU 1000
Note!
For this connection option, the CMU 1000 can either be configured via the CSI-F-10, or
the CSI-F-10 can be configured via the CMU 1000.
In addition the CSI-F-10 acts as the GSM modem to the CMU 1000, to forward data
and / or messages sent from this unit (see Chap. 3.2.).
Similar to the SMART sensors, the CMU 1000 must also be addressed with an HSI
address ("a" or "b") before connecting to the CSI-F-10.
HSI
+U
B
0V
5 4 3 2 1
18..35 V DC / 3.5 A
max. 30m
