Introduction
1
Introduction
Welcome to the Paradigm Touchscreen user’s guide. This manual contains the procedures
for setup of the Paradigm Touchscreens including theme file loading, menu navigation,
touchscreen calibration, timed events editing, and cleaning instructions.
Reference the related Paradigm Touchscreen Installation or Setup Guide for information on
installation and hardware setup.
The wall mount Touchscreen is also available with a locking cover or in a rack mount panel.
Touchscreen Specifications
The Paradigm Touchscreen is a high resolution color Touchscreen for use with the
Paradigm Architectural Control Processor (P-ACP). The Touchscreen features a 7"
(17.8cm) WVGA display with 800x480 pixel resolution utilizing 24-bit color depth and a 10:6
aspect ratio.

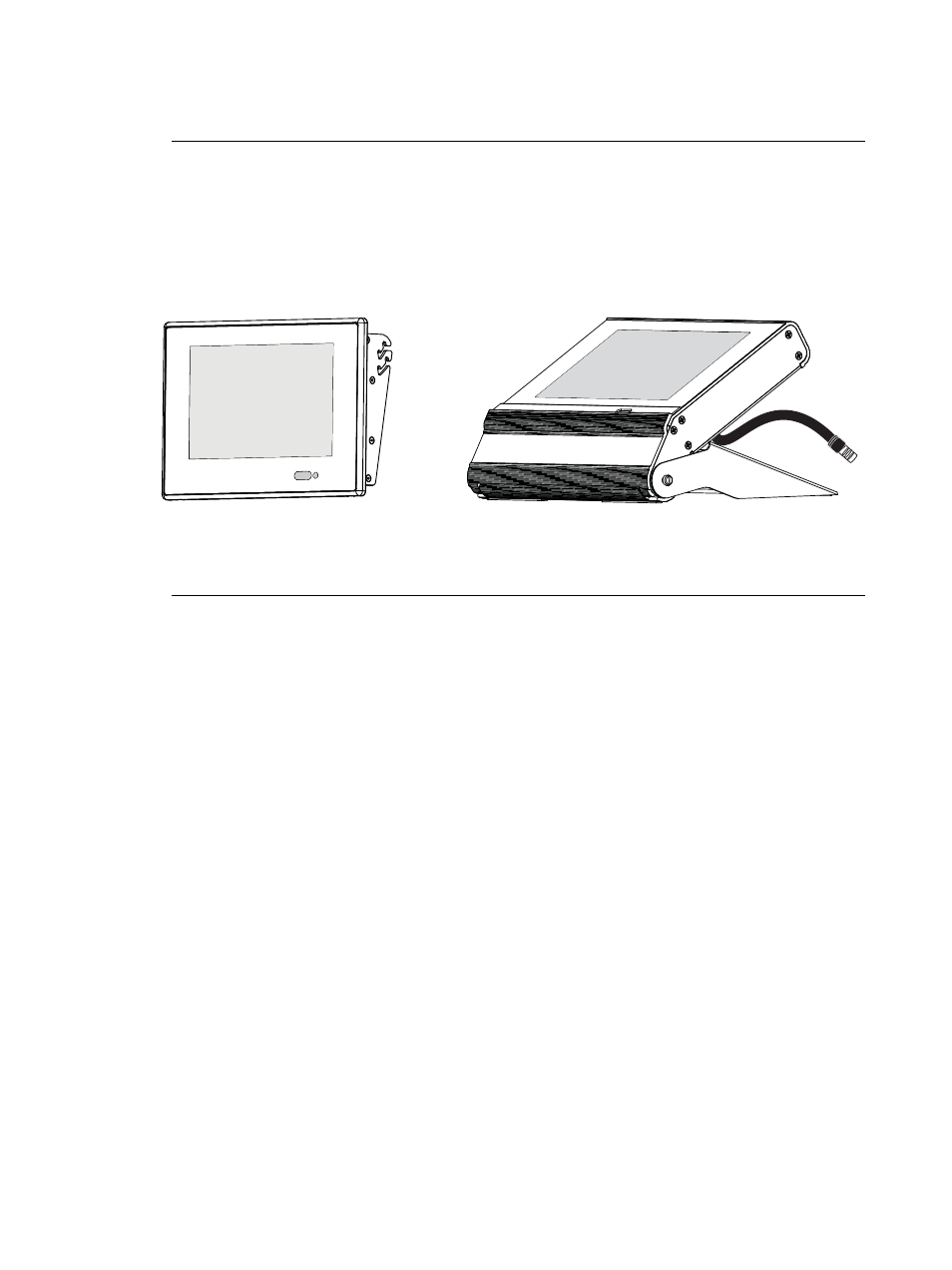

Unison Paradigm Wall Mount Touchscreen
