Change chasers and holders – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 9
www.erico.com
9
13
13
14
14
14
14

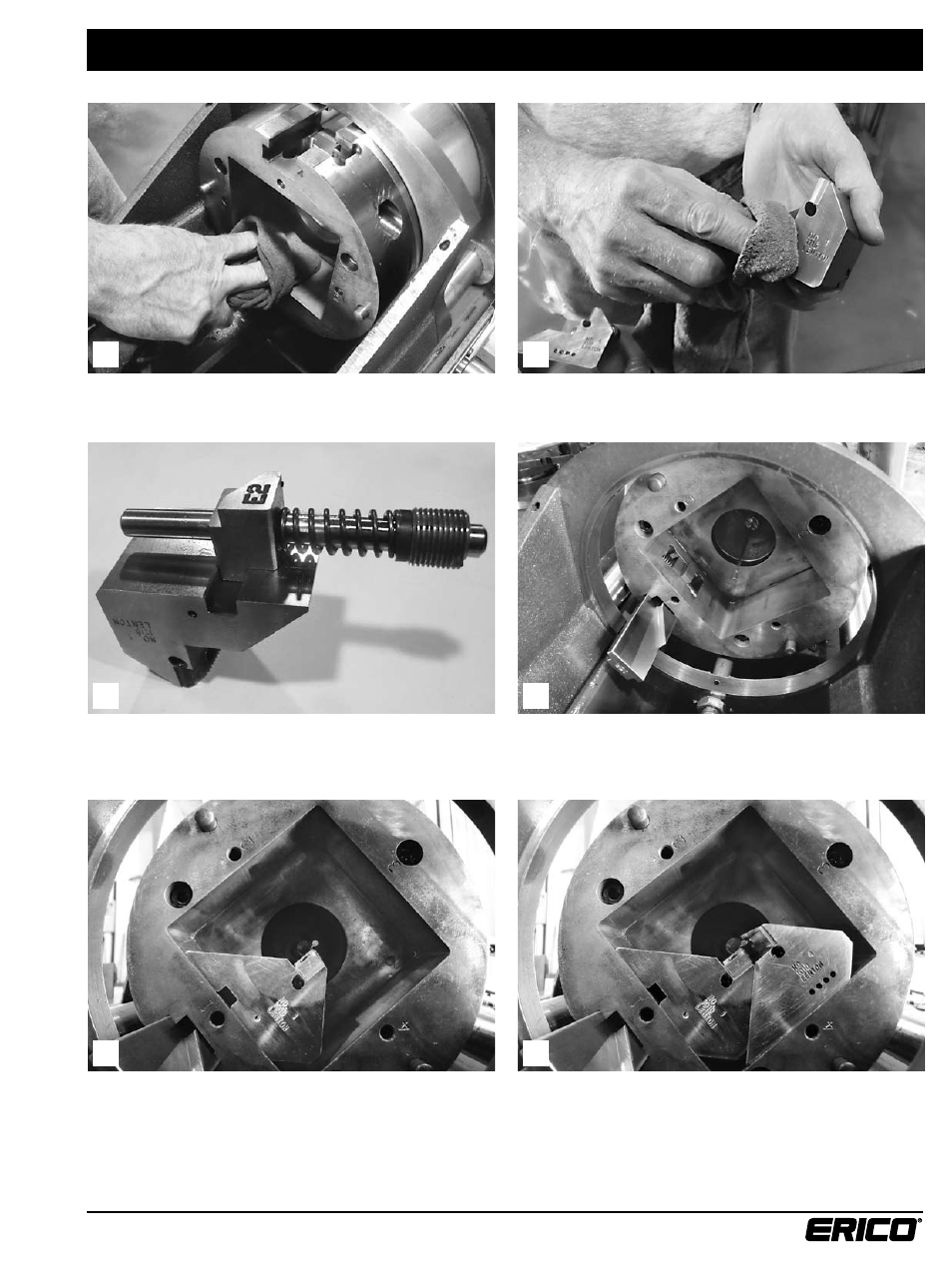

Before replacing the holders make sure the cavity in the head and the holders are clear and free of chips.
Wipe all flat surfaces with a clean rag.
The number 1 holder (with the slot in it to accept the control
block) must be replaced first, then followed by holders #4, #2
and #3.
Rotate the cutting square until the control key is in the
position as shown above.
Step 1 – Insert holder #1 as shown.
Step 2 – Slide holder #4 into position.
Change Chasers and Holders
