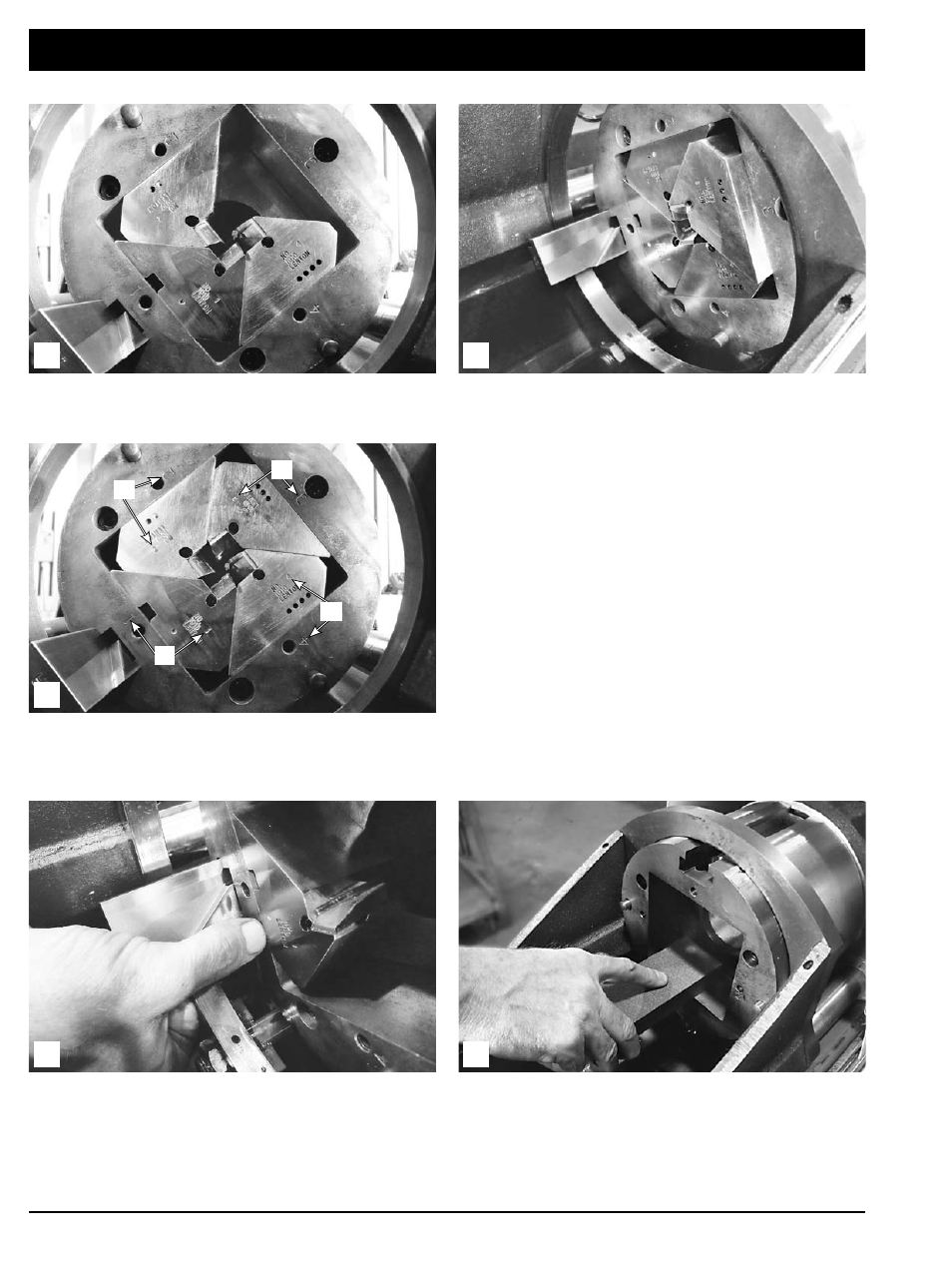

Change Chasers and Holders
16 16
After the holders have been installed in the cutting square,
check that the numbers on the face of the holders match the
corresponding numbers on the face of the cutting square.
After installing the chaser holders, check to see that they do
not protrude outside of the cutting head. This would prevent
free holder movement during threading. If any do protrude
outside, remove them and reclean the head and holder(s).
Also look over the holder for any burrs that might need
taking down with a stone. Stone the flat surfaces in the cutting square.
Step 4 – Slide holder #3 into position.
14
15
14
Step 3 – Slide holder #2 into position.
#1
#4
#3
#2
