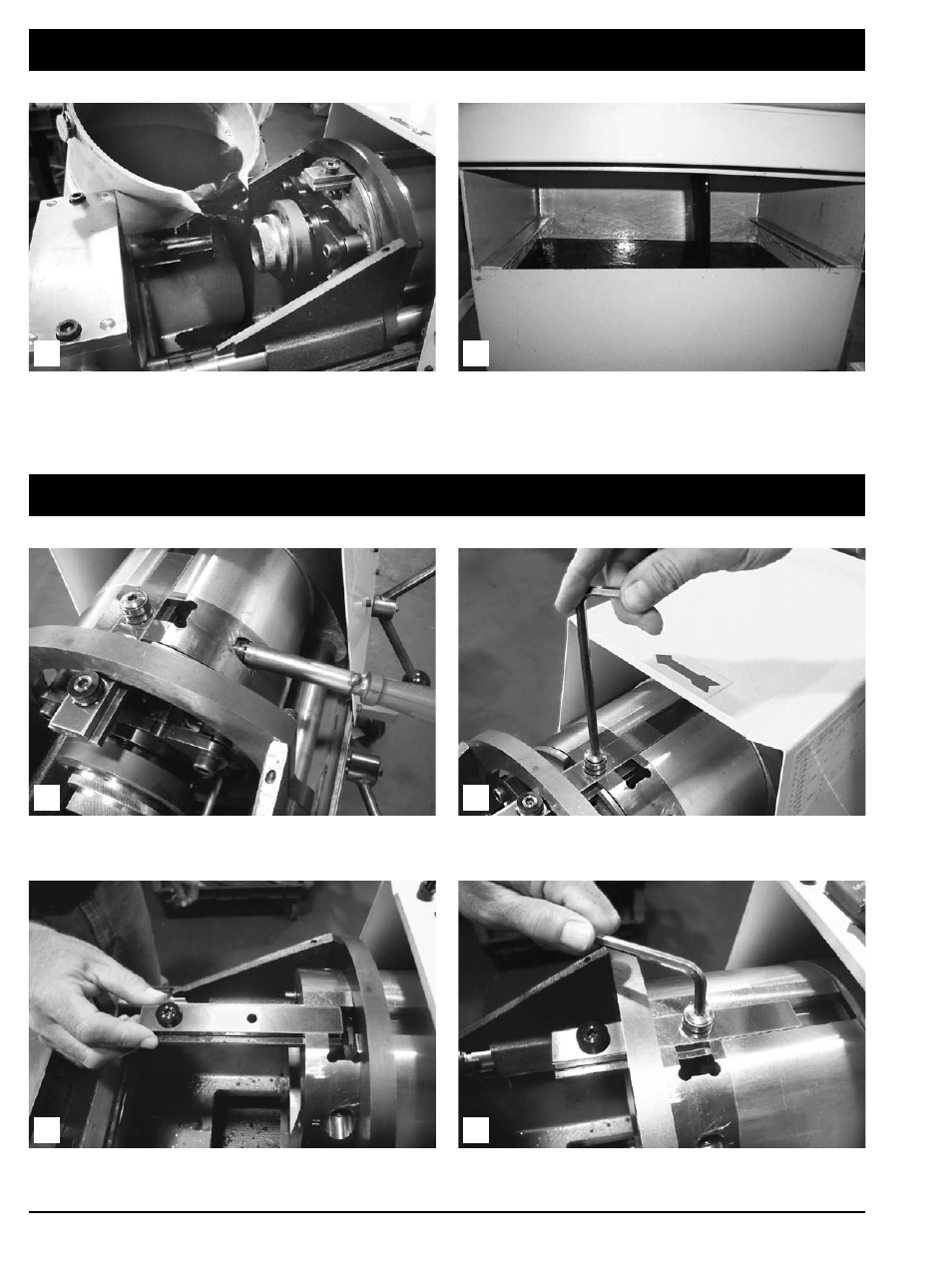

Prior to threading, the oil must be added. Pour the oil
onto the chip funnel and it will flow into the oil reservoir.
Only part #ELOIL should be used.
The reservoir is properly filled when the oil is just below
the chip drawer sliding brackets.
Add Oil
2
1
Change Control Key
To change the control key, remove the support rod screw,
compression spring, and the support rod from the head.
Loosen and remove the back bearing.
Slide the key out. Each key is marked with the bar size it is
to be used with in millimeters.
Slide in the new key and replace the spring, support rod and
support rod screw. Replace and tighten the back bearing.
2
1
4
3
