Special topics, Dc board trim pot adjustment – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 21
www.erico.com
21
Special Topics
DC Board Trim Pot Adjustment
Before installing or replacing the DC control board, inspect the trim pots
to verify that they are adjusted as shown below.
Also confirm that the voltage is set
for 120 volts.

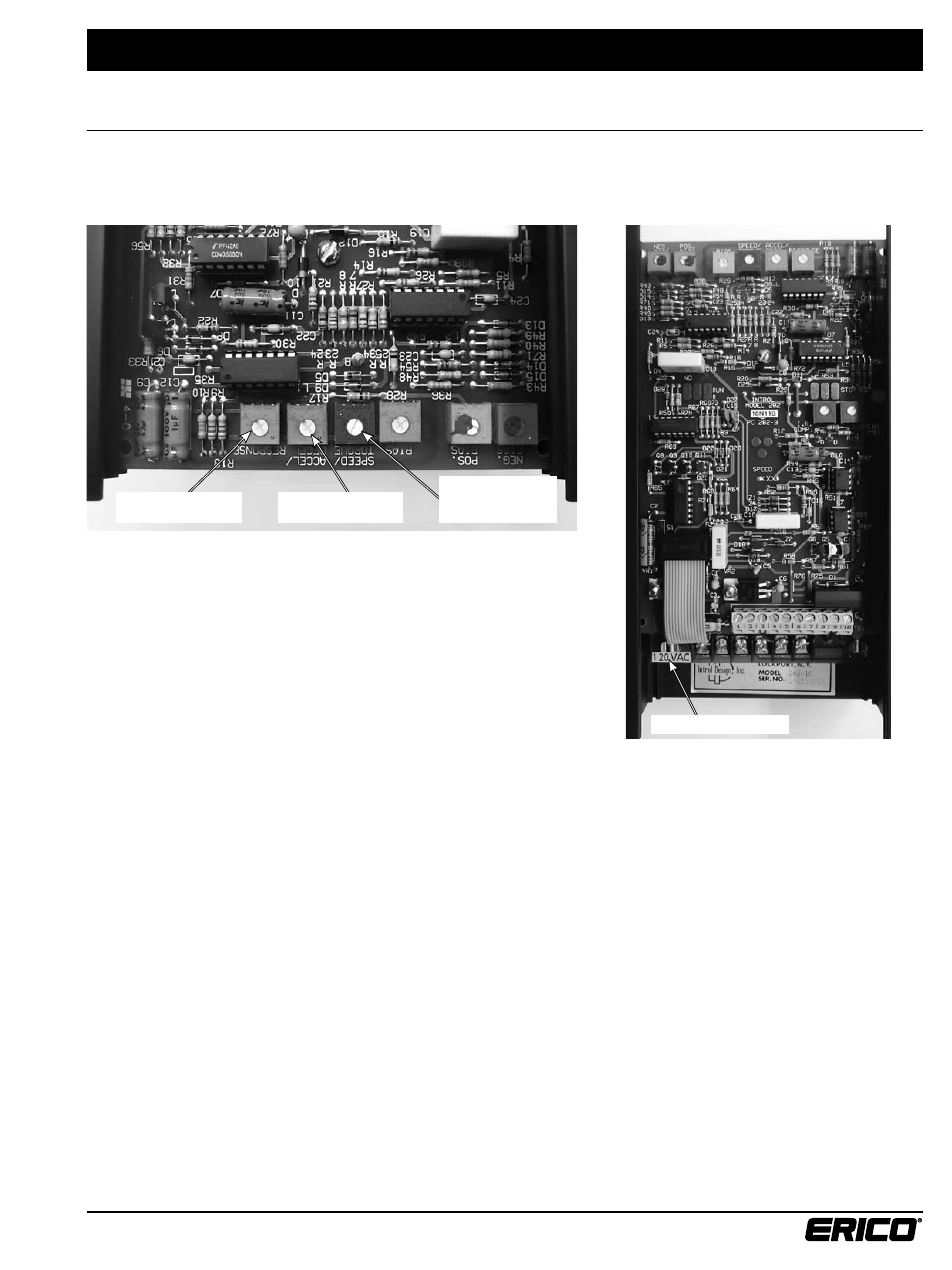

Introl 282-CH DC board
RESPONSE
Set to full clockwise
ACCEL / DECEL
Set to full clockwise
SPEED / TORQUE
Set to full
counter-clockwise
Voltage designation
