Appendix 1 — Light Codes

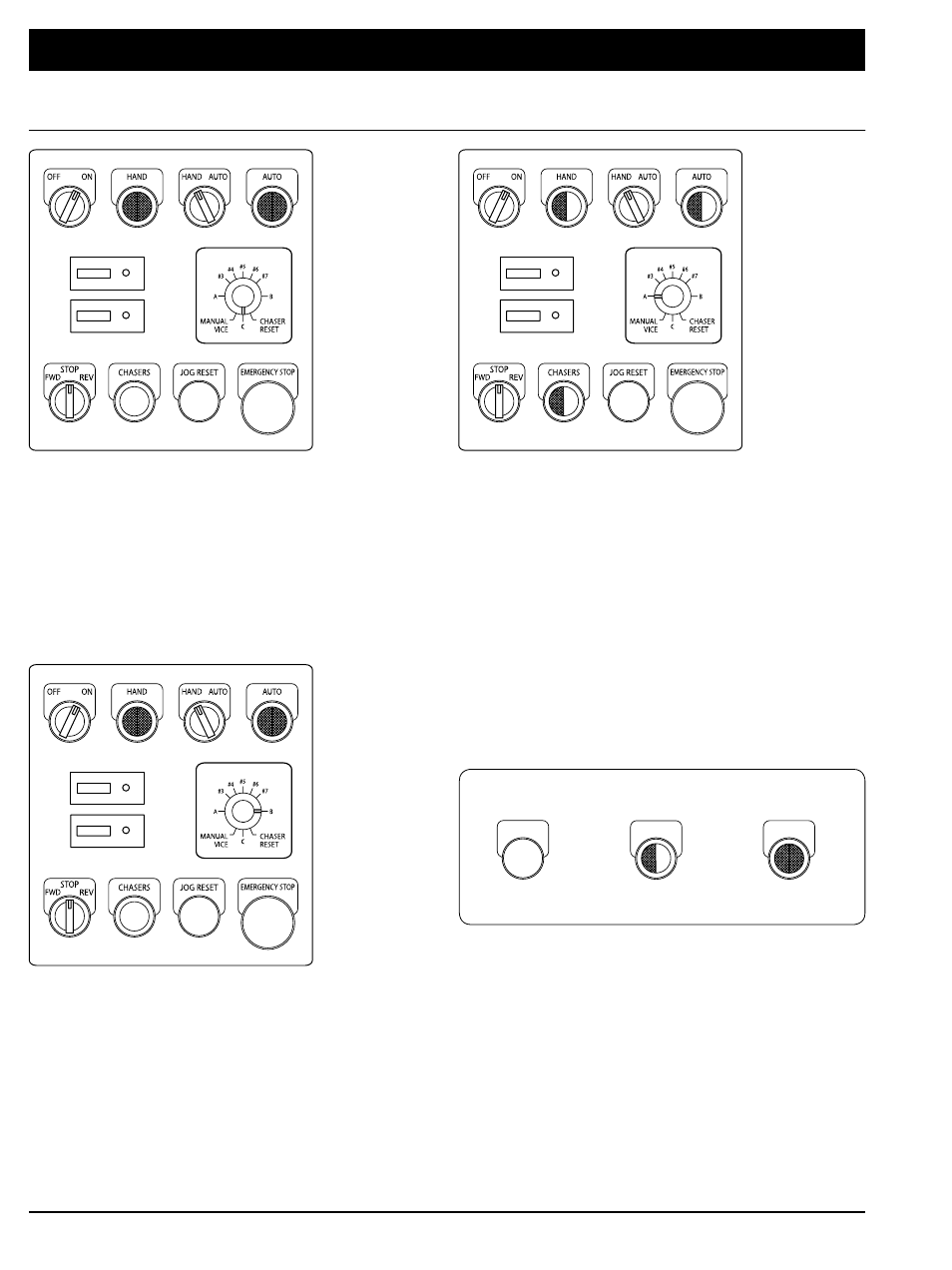

ELAT100 Operator Light Codes (Adjustments)
Hand Mode (Special “C” Adjust Code)
• Selected for vise close time adjustment
• Use Fwd and Jog to increase time by 0.1 second
• Use Rev and Jog to decrease time by 0.1 second
Note! The Auto light will illuminate when adjustments are made.
The factory default setting for closing the vise is 1.0 second.
The maximum allowable adjustment is +/- 0.5 seconds.
Hand Mode (Special “B” Adjust Code)
• Selected for forward stroke adjustment
• Use Fwd and Jog to increase stroke by .04” (1 mm)
• Use Rev and Jog to decrease stroke by .04” (1 mm)
Note! The Auto light will illuminate when adjustments are made.
The maximum allowable adjustment is +/- 0.2”.
Hand Mode (Special “A” Adjust Code)
• Selected for initialization of PLC
• Must manually set both ref and out-limit prox probes
and depress Jog button
When initialization is on all lights will flash rapidly.
Warning! Manually position cutting head to ensure that
the target for the ref and out-limit prox probes is positioned
between them. Select for proper bar size, auto mode run a
setup to complete initialization.
Warning! The above special adjustments are to be used only when authorized by a factory trained service technician.
Failure to follow these instructions may result in machine damage.
Operator Light Key
Not illuminated Flashing Illuminated
