Appendix 1 — light codes, Elat100 operator light codes (hand) – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 26
www.erico.com
26
Appendix 1 — Light Codes

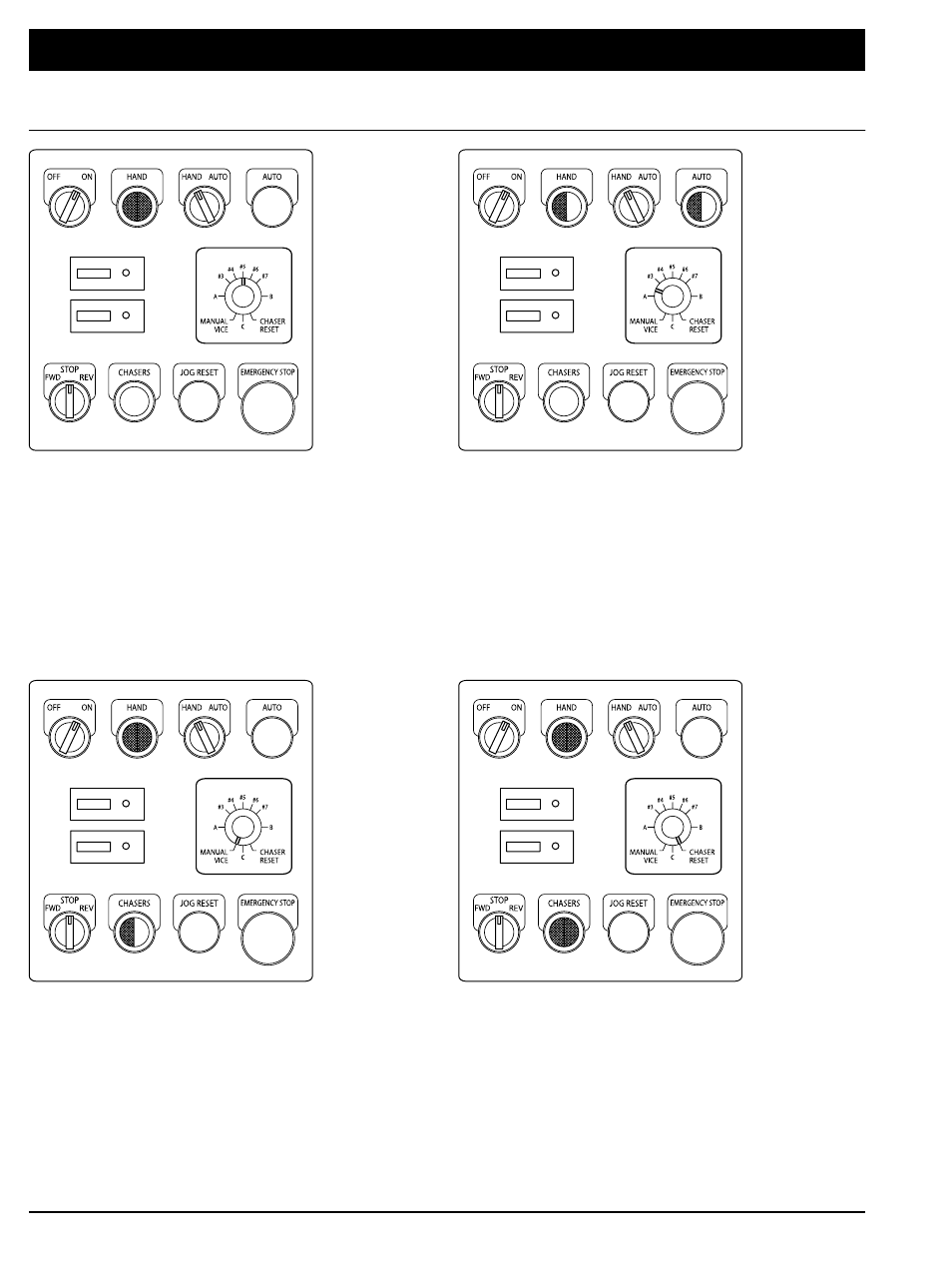

ELAT100 Operator Light Codes (Hand)
Hand Mode (Standard Code)
• Machine can turn on only when in this mode
• Use Fwd/Rev switch to move cutting head
• Select Manual Vice to operate vise
Use Fwd to close, and Rev to open
• Jog head with Jog button and hood closed
• Select Auto Mode with safety hood closed
Hand Mode (Special Option Code)
Bar selector switch is in a Special Option area.
Return to a valid bar size to stop flashing chaser light.
In this option you may manually operate the vise,
or reset the chaser wear counters.
Hand Mode (Bad Option Code)
Bar selector switch is positioned in an area where no
options are available.
Hand Mode (Worn Chaser Code)
Worn chaser warning!
Replace chasers and reset chaser counter by positioning
the bar selector switch to Chaser Reset, open safety hood
and depress the Jog/Reset button. The Auto light should
illuminate, and the Chaser light should return to a normal
flash condition.
Note! When resetting the Chaser Wear counter, the last bar threaded,
1.25 mm or 2 mm, will be the counter that is reset.
