Initialization of plc – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 14
www.erico.com
14
Initialization of PLC
4. Using the Forward/Reverse switch manually position
the transmission such that the target is positioned
between the reference and outer limit proximity
switches (see accompanying photo).
5. Manually trigger both the reference and the outer
limit proximity switches. The top of the proximity
switches will shine amber when they have been
triggered (see accompanying photo).
6. With both proximity switches triggered, depress the
JOG button. Initialization is verified by the simultaneous
flashing of all three lights (amber, green, and blue) on
the operator station.
In the photo above, the proximity switches have been
triggered using a standard set of feeler gauges.
The threading machine is now ready for the SET-UP
procedure.
1. Turn power switch to the ON position
2. Confirm that the machine is in HAND mode.
Amber light will be on.
3. Turn the bar size selector switch to the ‘A’ position –
Special Adjustment Code.

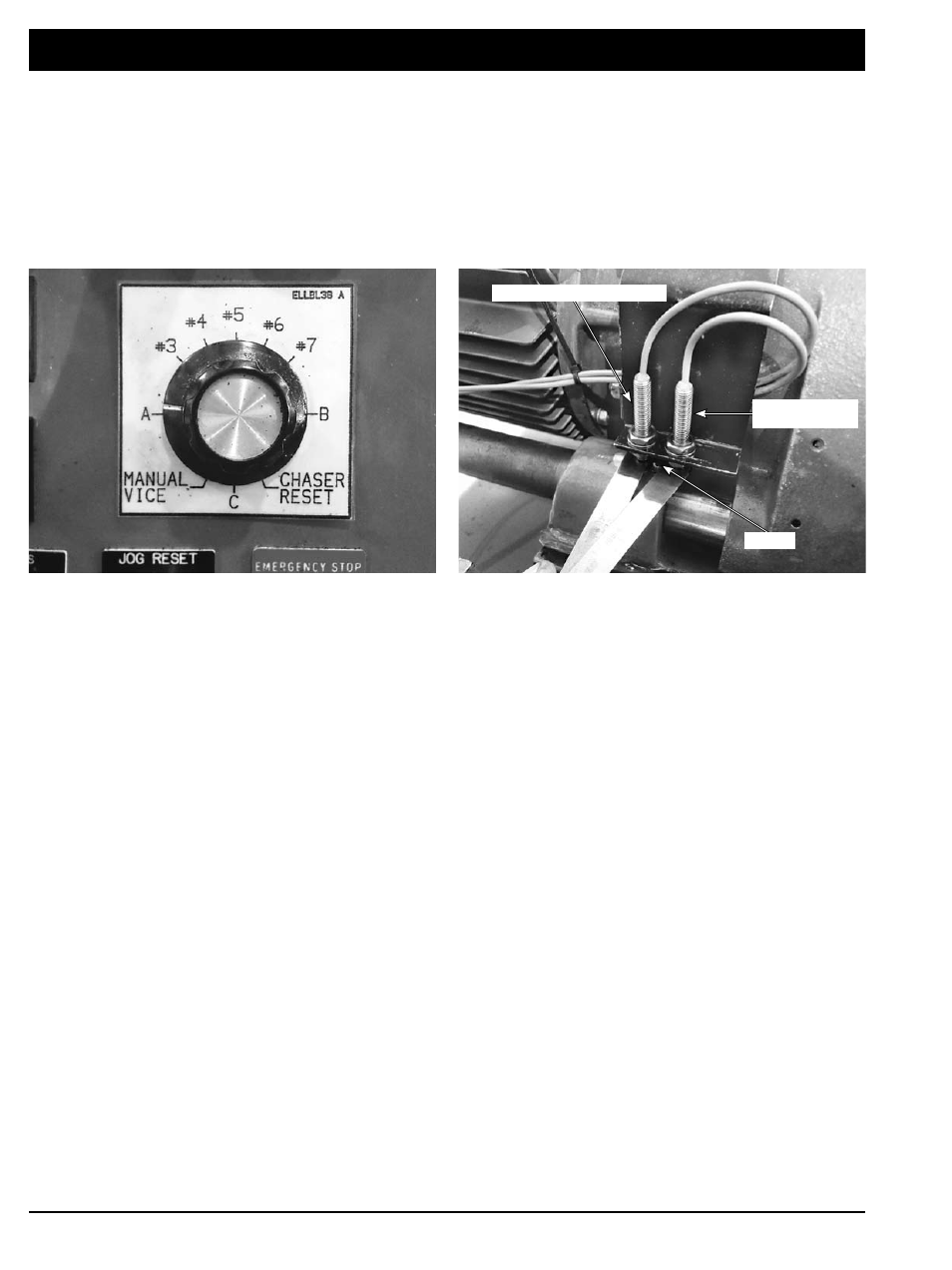

Bar Size Switch in the A position
Manually triggering the reference and out limit proxes
Reference Proximity Switch
Target
Outer Limit
Proximity Switch
