Change chasers and holders – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 7
www.erico.com
7

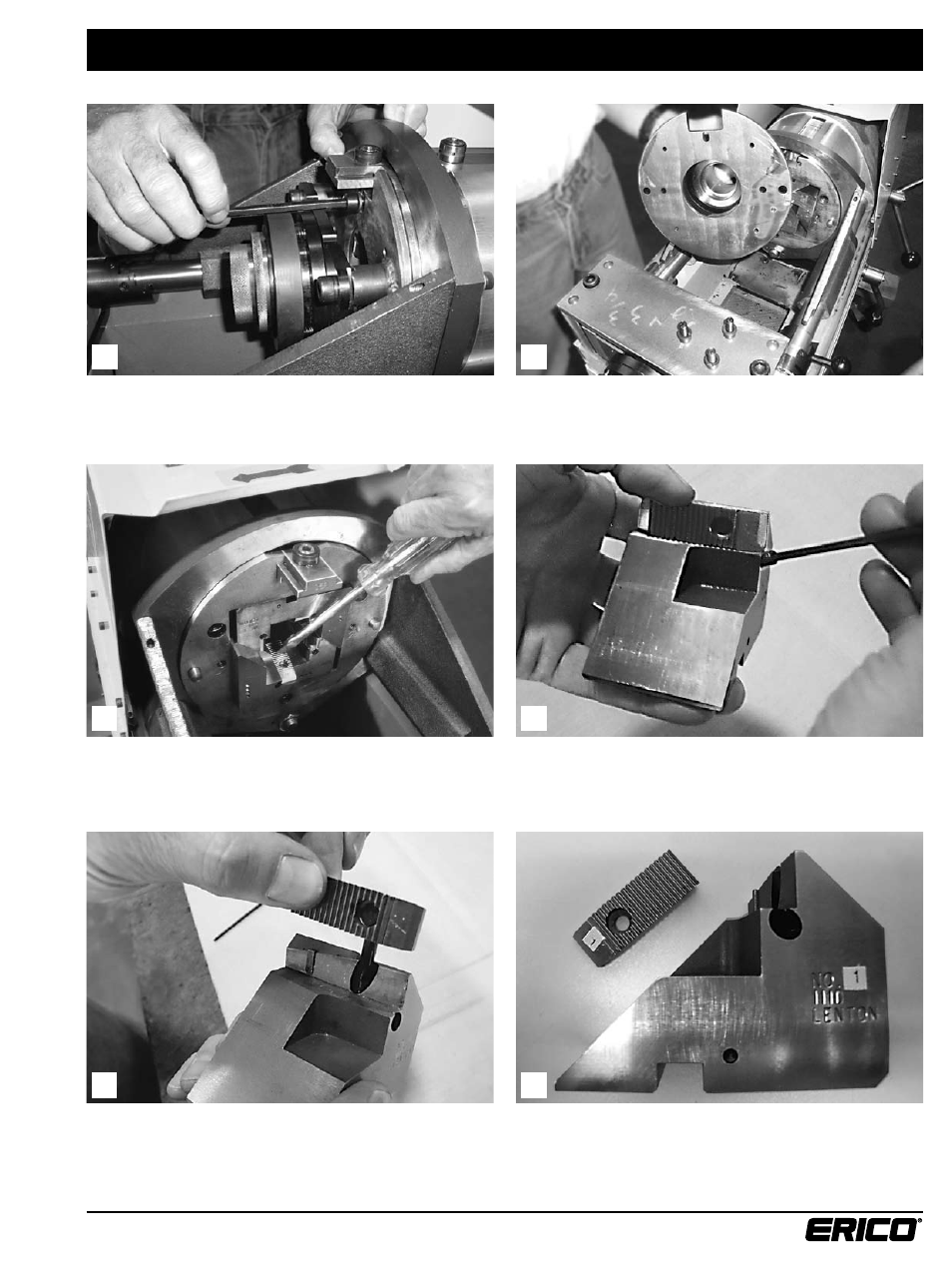

Remove the face plate bolts with a 6 mm hex wrench.
Three bolts hold it in place.
Remove the holders from the cutting head.
Loosen the set screw with a 3 mm hex wrench as shown above.
Remove the chaser from the holder.
Chasers and holders have matching numbers.
The number 1 chaser goes into the number 1 holder, etc.
Change Chasers and Holders
6
5
2
1
4
3
