Center rings – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 5
www.erico.com
5

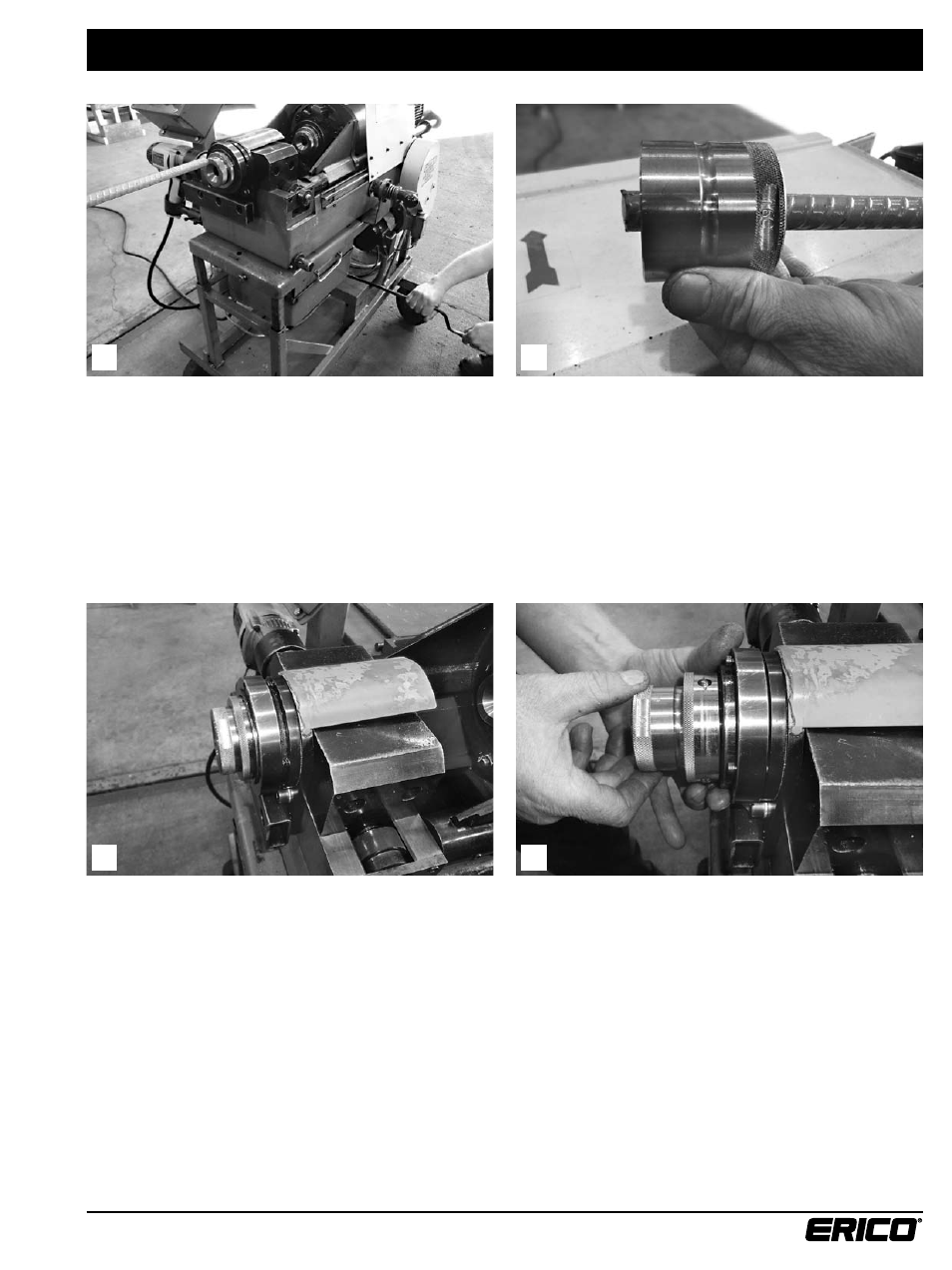

Center Rings
To change centers to a different bar size or to go with a set
that fits the bar better, push in the release ring and pull out
the existing center. Put in the new center and lock it in place
by letting loose of the release ring.
Adjust table height, with built in jack, to match elevation of
the bar.
To obtain the best centering of the rebar into the threading
machine, the best fitting set of center rings should be used.
We offer two or three different size sets per bar. To make
sure you are using the correct set, slide one of the center
rings per set over the bar ends to be threaded to determine
which one slides on easily with the least amount of slop.
Each center ring is stamped with the bar size it is to be
used with in millimeters.
The automated bar threader is capable of threading rebar
sizes # 3, # 4 (10M), # 5 (15M) and # 6 (20M).
