Machine overview, Electrical – ERICO ELAT100 LENTON Automatic Threader User Manual
Page 4
www.erico.com
4
The bar threader requires 220-240 volt, 3 phase power.
A four pronged plug (as shown) is standard.
After connecting the power be sure the head of the bar
threader is rotating in the direction indicated by the red arrow
on the hood. If it is not rotating in the correct direction,
switch any two of the power leads in the plug.

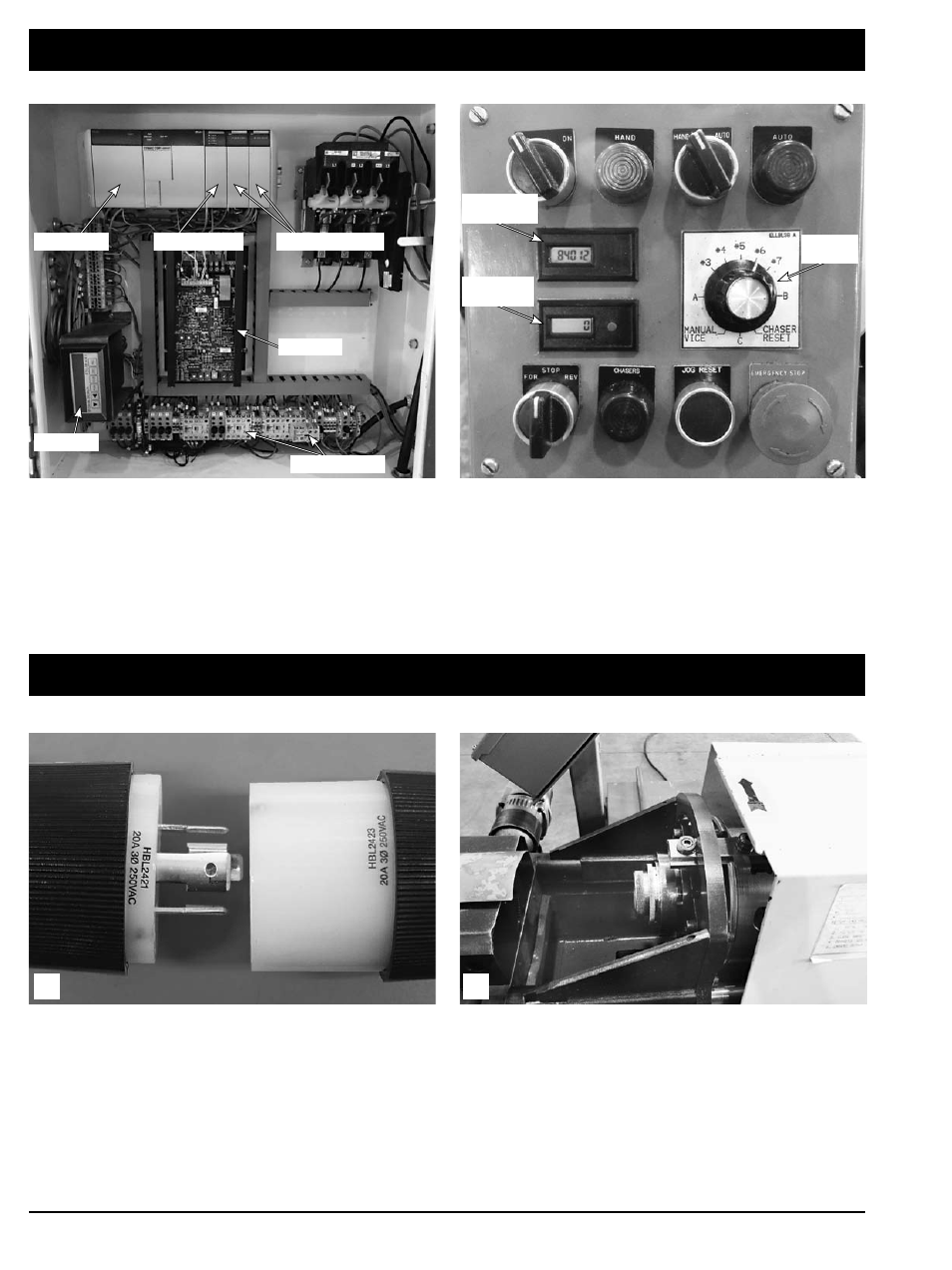

Machine Overview
1
2
Operator Station
Electrical Control Panel
DC Board
Omron PLC
Input Module
Introl 61F
Control Relays
Output Modules
Bar Size
Selector
Counter
with Reset
Cumulative
Counter
Electrical
