84

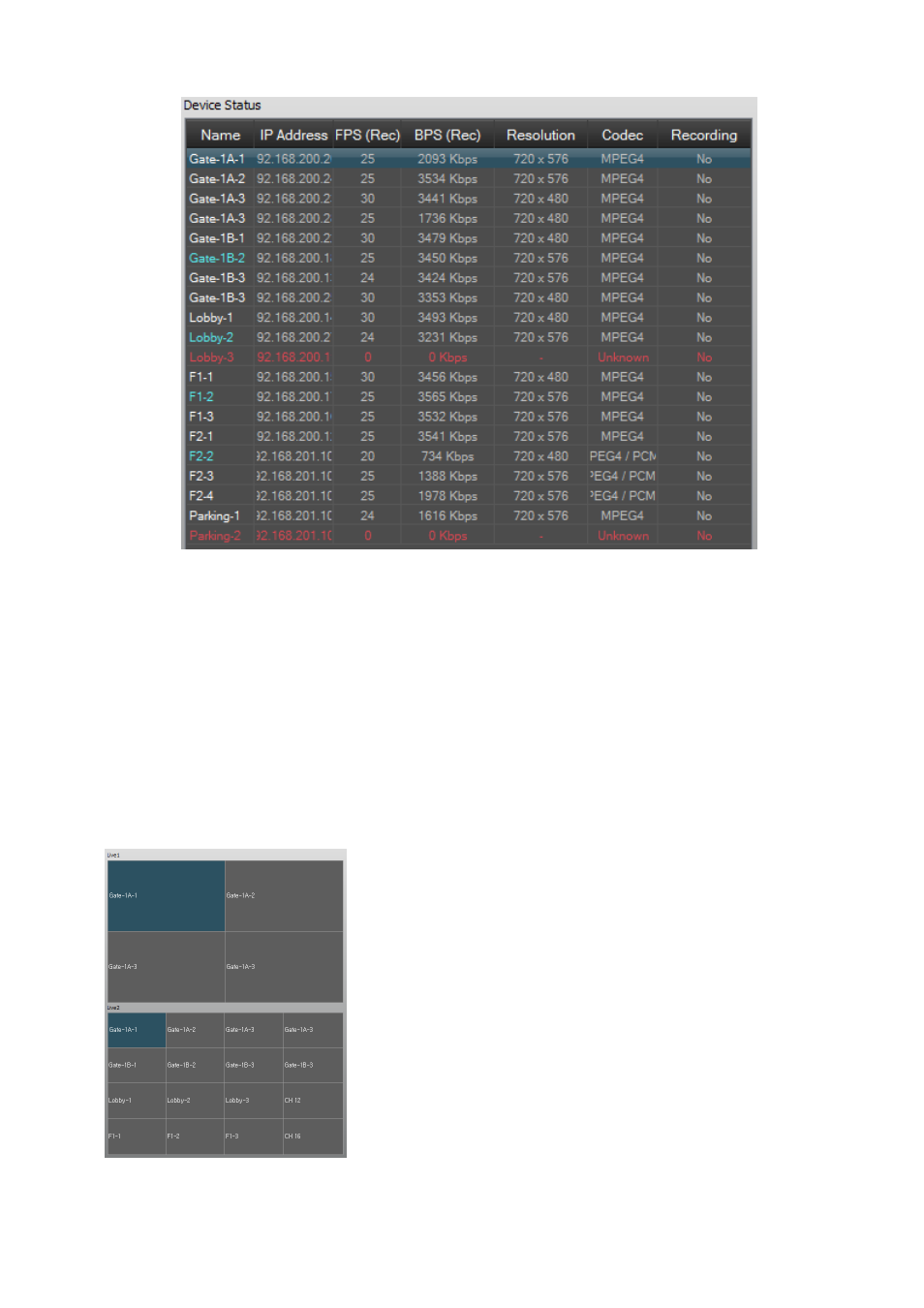

Figure 85 Device Status Table
15.2.2 Live1, Live2 split modes
The Device status view shows the split modes of Live1 and Live2 with assigned device name.
If you click the channel in the Live1 and Live2, the selected channel would be marked in split mode of the
device status view.
If you click the channel in the split mode of the device status view, the channel would be selected in Live1
and Live2. And the channel would be highlighted in the status table.
Figure 86 Split Status
