4.4 Event Setup – Relay Out
This is to set up event relay out. After setting this, each relay out item is selectable in the Device tab.
Please refer the ‘4.1 Event Setup – Device’ to assign the event relay out to the device event.

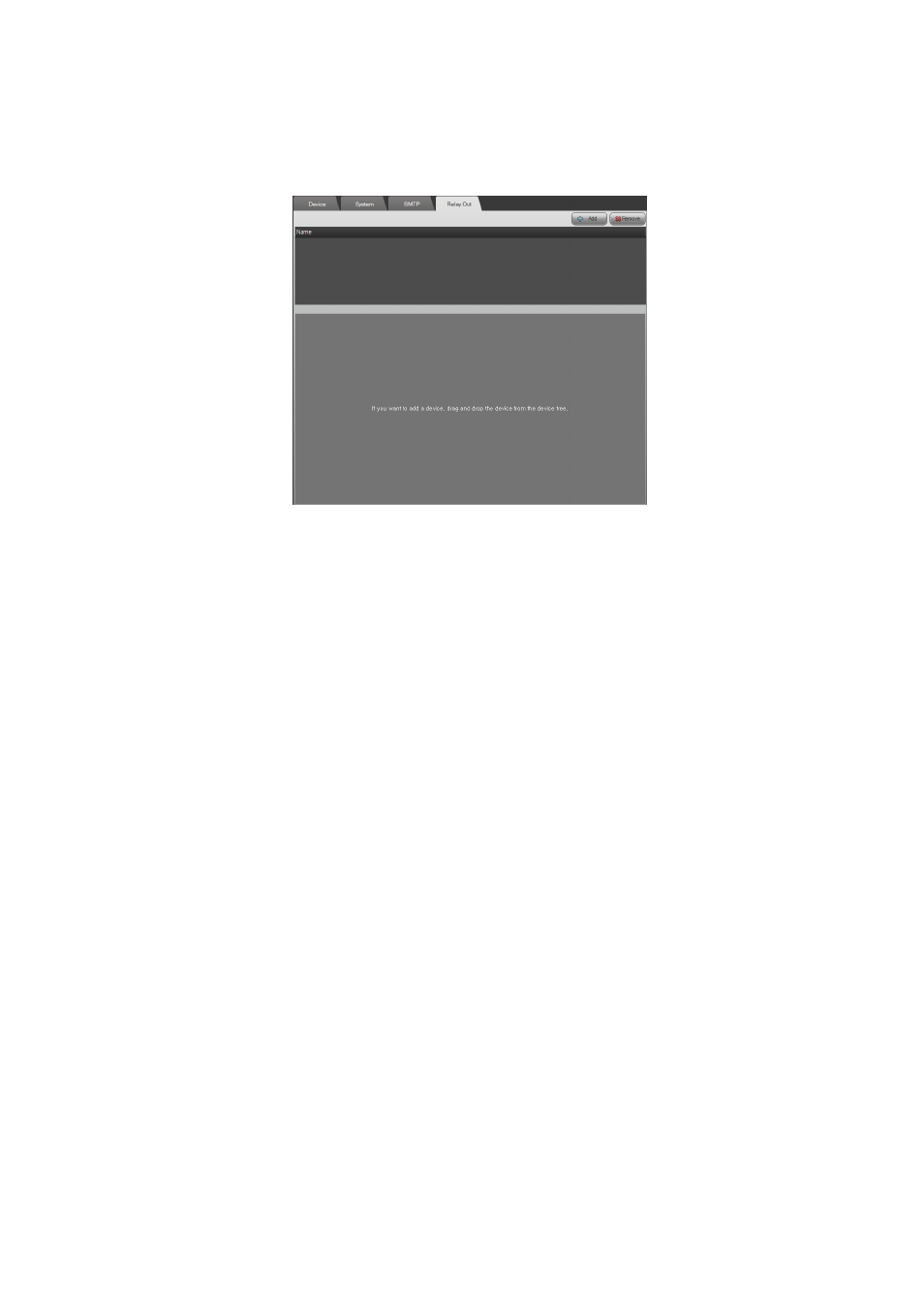

Figure 25 Event Setup - Relay Out
4.4.1 Event relay out
① Select the Relay Out tab.
② Click the Add button and enter the relay out name.
③ Select the device from the device tree and drag it into the below of the list.
④ Set up the Record, Manual Trigger and Preset.
* The Record is the recording dwell time.
* The Manual Trigger is dependant on the device model.
* The Preset is only available for the PTZ device.
* Before setting up the Manual Trigger and Preset, please check the device model and settings.
* If an event is assigned with relay out, the event will occur as it is configured with Manual Triggering and
PTZ preset movement.
* Do not create a chained relay out, for instance an event from device A triggers the device B and the
event which was triggered by B triggers the device A again and again.
4.4.2 Remove relay out
Select the relay out item from the list. Click the Remove button.
4.4.3 Rename relay out
Double-click the relay out item from the list and enter new name of it.
