3 live toolbar – Comelit RAS_SOLUTION User Manual
Page 59

52
① Select a Live view tab.
② Select a screen to control PTZ.
③ Move the stick.
④ There are predefined function buttons for control zoom, focus, iris and others.
Table 12 Joystick Buttons and PTZ Operations
Buttons
Operations
1
Zoom Out (Wide)
2
Zoom In (Tele)
3
Focus Out (Far)
4
Focus In (Near)
5
Iris Out (Close)
6
Iris In (Open)
10.3 Live Toolbar
Each view has view toolbar.

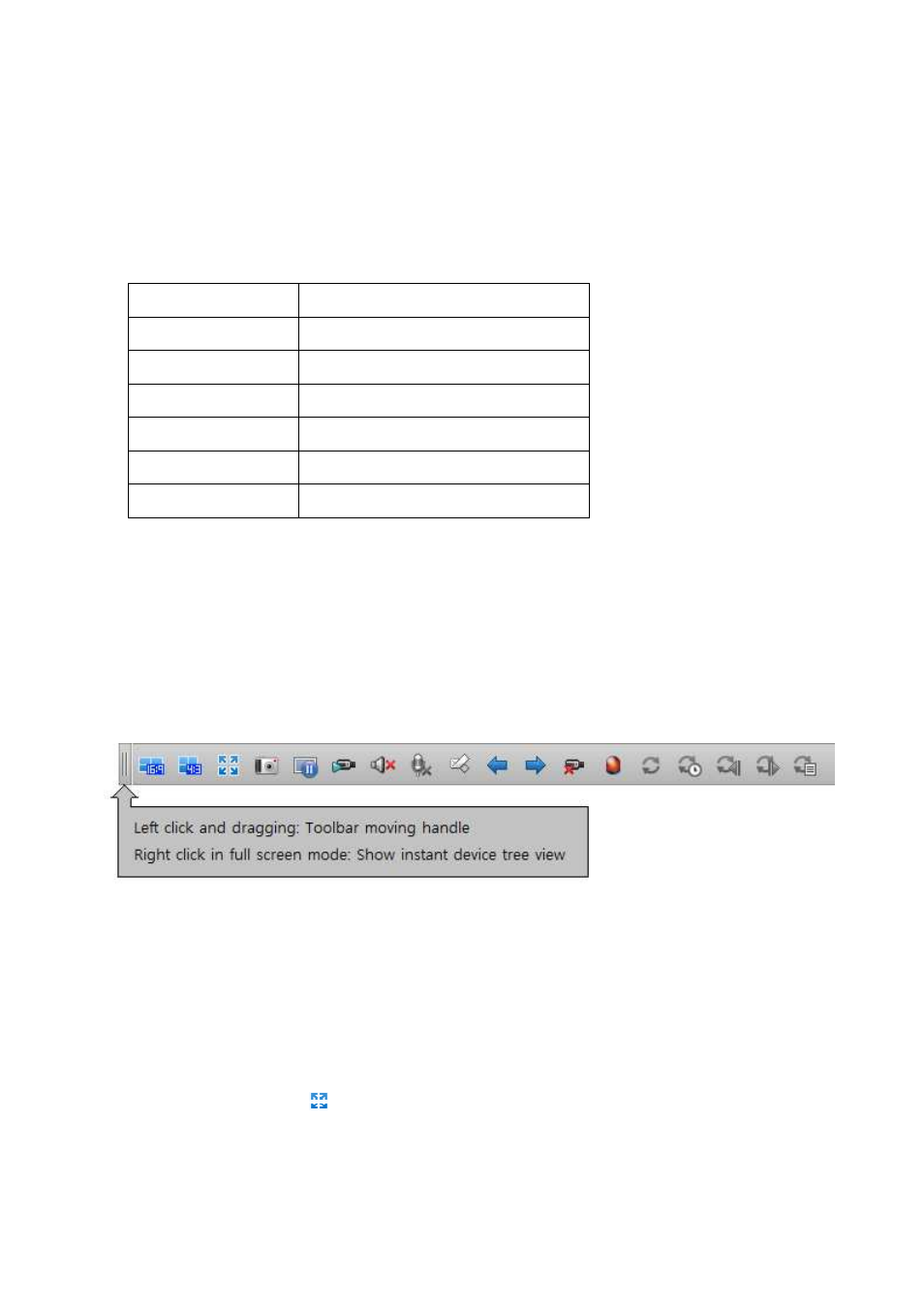

Figure 55 Live View Toolbar
10.3.1 View toolbar
The functions of each button in the toolbar are explained in ‘Appendix B - Toolbars’.
Click the Full screen button (
), then the View mode would be changed as full screen mode. And if it is
clicked in full screen mode, the toolbar would be disappeared. To show the toolbar in that mode, press
the ‘ESC’ key. Then the toolbar is positioned on the top of the view. If you want to change the normal
view mode as initial mode, close the full view screen by clicking the close button in the title bar or
pressing Alt+F4 keys.
