Chapter 9 – Device Tree
This chapter describes the device tree. The root items of the device tree are the Device, Layout, Channel
Sequence and Layout Sequence.
The Device has groups and devices. The Layout has layouts and devices. The Channel Sequence has
sequences and devices. The Layout Sequence has sequences and layouts.

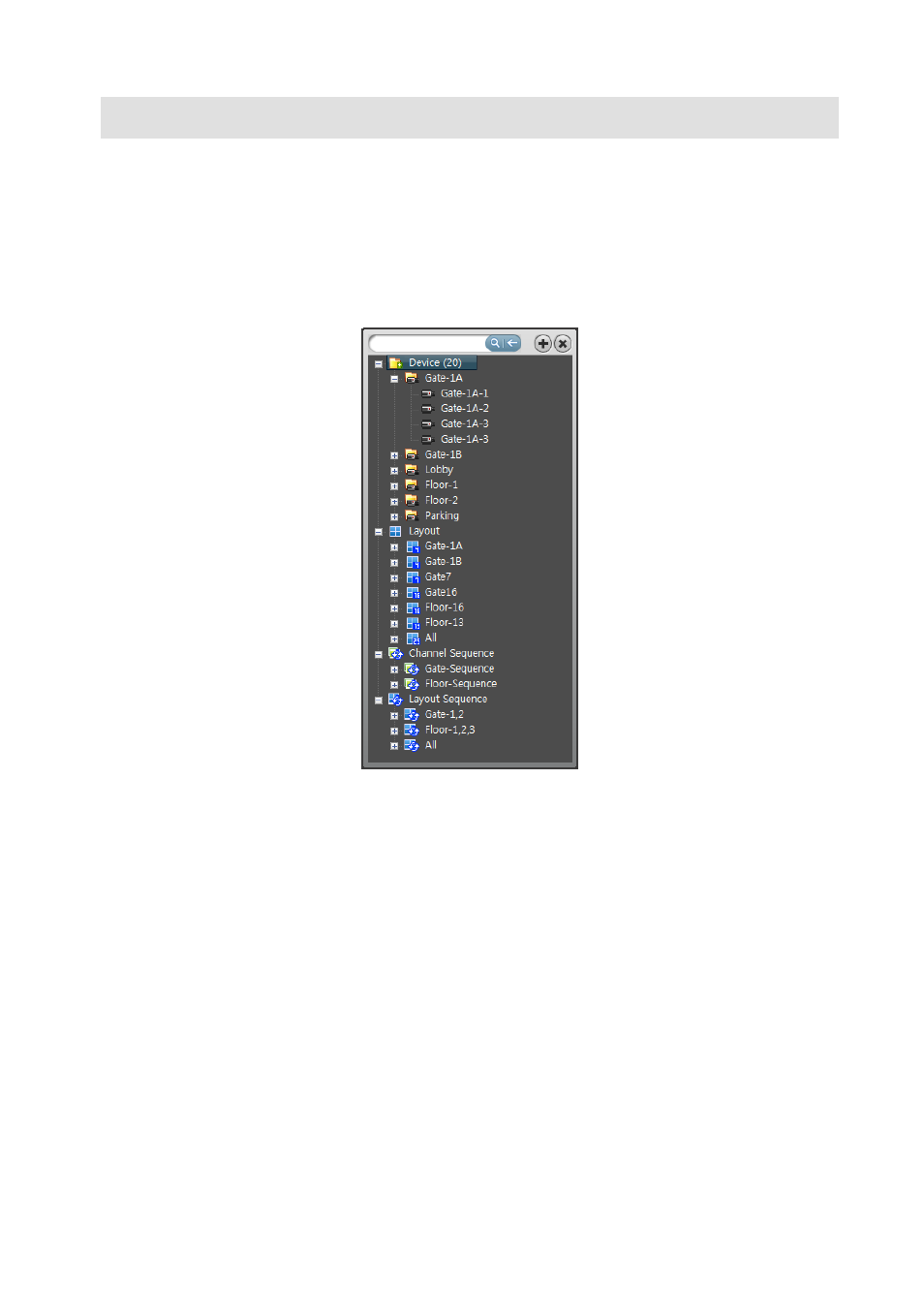

Figure 38 Device Tree
9.1 Device
The Device item shows the number of device items. It has device groups and devices.
9.1.1 Device status
The device icon represents connection, recording and event status.
