PART 6: REPLACEMENT PARTS

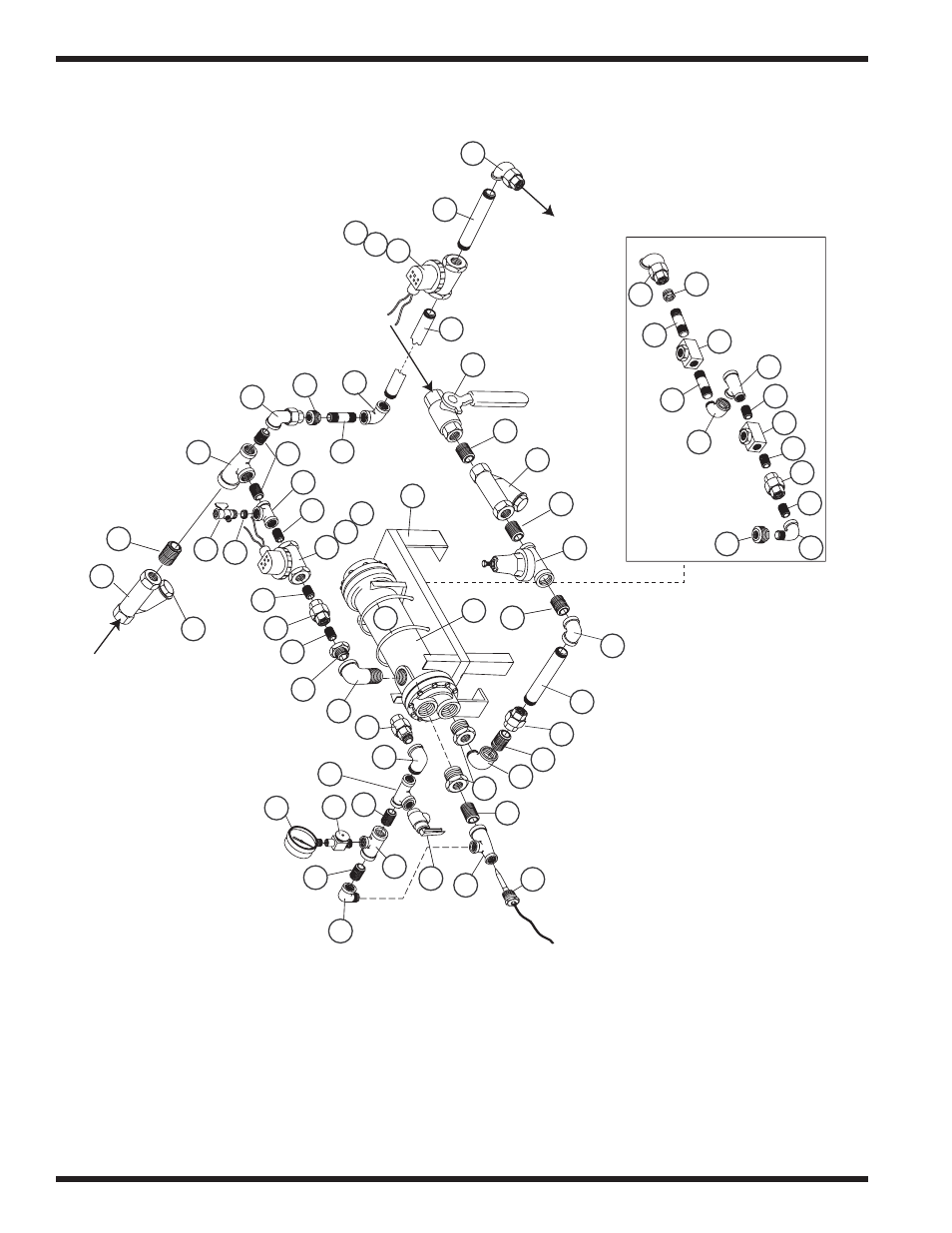

Figure 6.16-
No. 180 Steam booster and Steam piping assembly
Steam In
Condensate
7
8 9
3
3
10
6
11
7
1
2
3
4
5
12
13
14
15
14
14
19
20
16
17
18
21
22
25
24
23
26
18
17
16
7
3
40
39
38
3
37
3
33
3
32
34
35
36
41
42
43
44
43
45
43
46
45
47
48
49
50
51
Steam In Machine
27
28
29
Water In
30
31
52
51
WHEN REPLACING THE THERMOSTAT:
INSERT THERMOSTAT BULB 12" INTO BOOSTER.
ENSURE BULB IS INSIDE ONE OF THE COPPER
WATER TUBES, NOT COILED UP IN THE HEAD.
