14
Initial Start-up - Model UH130, UH130B, UH230, UH230B
Pump Priming - Detergent and Rinse-aid Dispensing Pumps
Models UH130, UH130B and UH230, UH230B

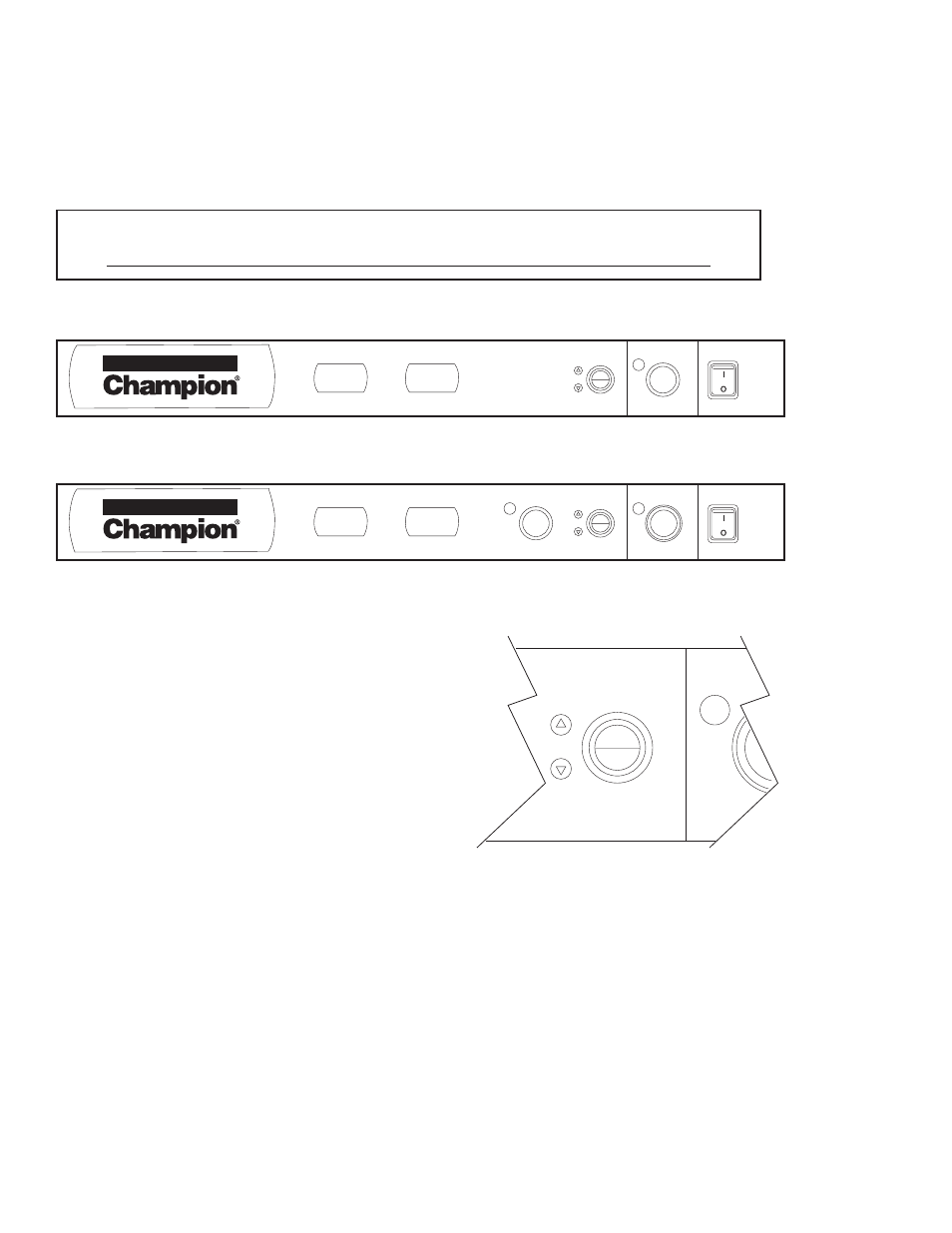

UH130B Control Panel
WASH RINSE
PRIME
DETERGENT
RINSE AID
OFF/DRAIN
ON
POWER
START
TEMPERATURE
1 8 0 1 5 0
1. The chemical dispensing pump supply lines must
be primed before they will pump the chemicals
properly.
2. Make sure the chemical containers are full and
the correct pick-up tubes are in their containers.
3. Turn the dishwasher power switch ON. The
switch will illuminate and the dishwasher
will fill with water.
4. Open the dishwasher door, then push and hold
the prime push button UP to the DETERGENT
position until detergent is observed entering the
wash tank compartment. Release the push button.
5. Push and hold the prime push button DOWN to the Rinse-aid position until you see
air bubbles moving through the rinse-aid tubing coming out of the chemical container.
Release the push button.
6. Close the door to complete the priming operation.
PRIME
DETERGENT
RINSE AID
! VERY IMPORTANT !
The chemical dispensing pumps must be primed before operating the dishwasher.
Priming the Dispensing Pumps
WASH RINSE
PRIME EXT WASH
DETERGENT
RINSE AID
OFF/DRAIN
ON
POWER
START
TEMPERATURE
1 8 0 1 5 0
UH230B Control Panel
