Chapter 5. Installing the Display System
26
Street Dash Users Guide
Chapter 5. Installing the Display System
Who can install the Display System?
The Display System can be installed by anyone competent in
fitting electrical and mechanical accessories to cars.
Tools Needed to Install the Display System
A trimmer tool or small flat jeweller’s screwdriver (1.5mm or
1/16 inch blade) is required in order to adjust the VSS pulse
amplifier.
Preconfigured Display Systems
Use the instructions in the previous chapters to set up, operate
and configure the display before installing it in the vehicle.
Fitting the Display Module
The Display Module is fitted into a cut-out in the instrument
panel/dashboard and secured using the two U-brackets at the

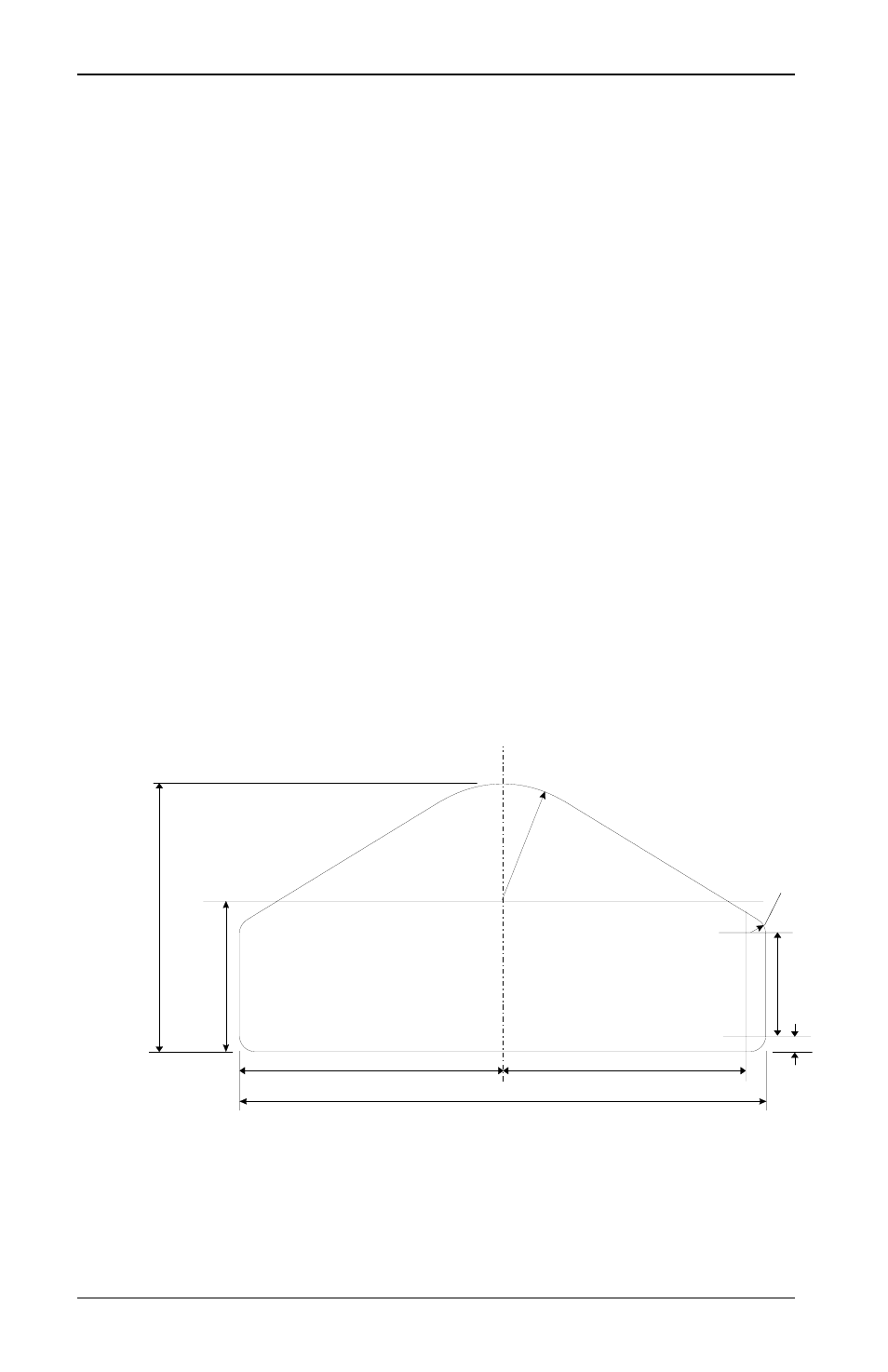

rear. The dimensions for the cut-out are shown below. A full size
template is supplied at the end of this manual.
190mm (7.48 in.)
89.5mm (3.52 in.)
95mm (3.74 in.)
37.5mm
(1.48 in.)
5.5mm (0.22 in)
Rad. Typ.
42.5mm (1.67 in)
Rad. Typ.
54.5mm
(2.15 in.)
5.5mm
(0.22 in.)
97mm
(3.82 in.)
