Chapter 3. Operating the Display System
Street Dash Users Guide 9

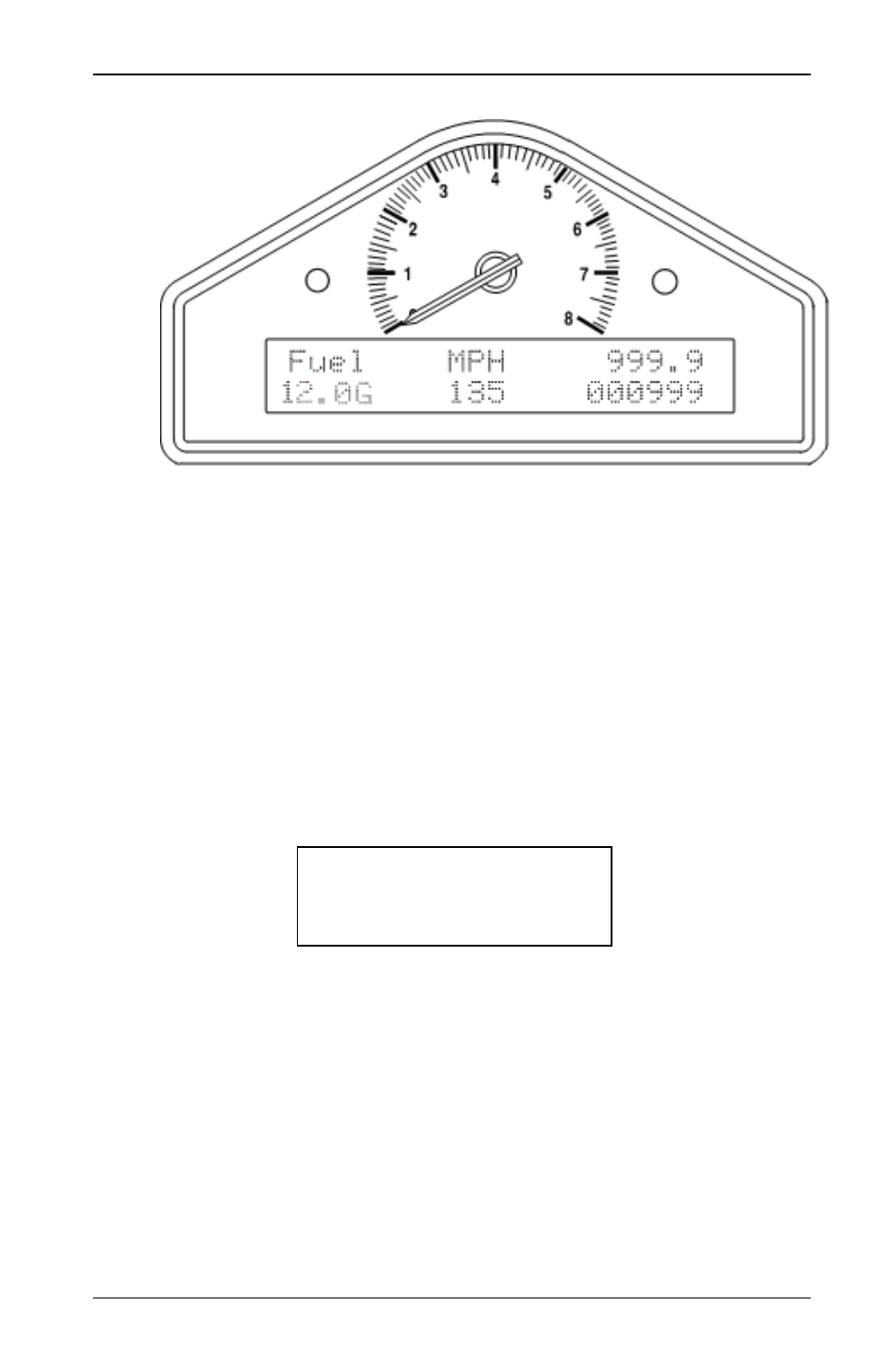

Display Layer 1
Display layer 1 shows:
• Fuel level (Note that when the amount of fuel in the tank is
changed the displayed value changes slowly (about ¼
gallon every 5 seconds) to minimize the effects of fuel
surge).
• Current speed (MPH)
• Trip indicator
• Odometer
Press Switch 3 to change the display to layer 2.
Display Layer 2
Oil T MPH Oil P
230 F 135 90
Display layer 2 shows:
• Oil temperature (Oil T)
• Current speed (MPH)
• Oil pressure (Oil P)
Note that the minimum oil and water temperature for which the
display gives a true reading is 53°F. The unit displays
temperatures that are less than this as 32°F.
