Chapter 2. Getting Started
Street Dash Users Guide 7
Connecting the Components
1. Connect the wiring harness to the display module.
2. Connect the four switches to the cables labeled S1 to S4.
3. Connect each of the sensors that you have purchased to the
appropriate wire in the wiring harness, as shown above.
4. Connect a 12v DC power supply or battery to the power
input cable. NEVER use a battery charger to supply power
to the display module.
5. Switch on the 12v DC power supply.

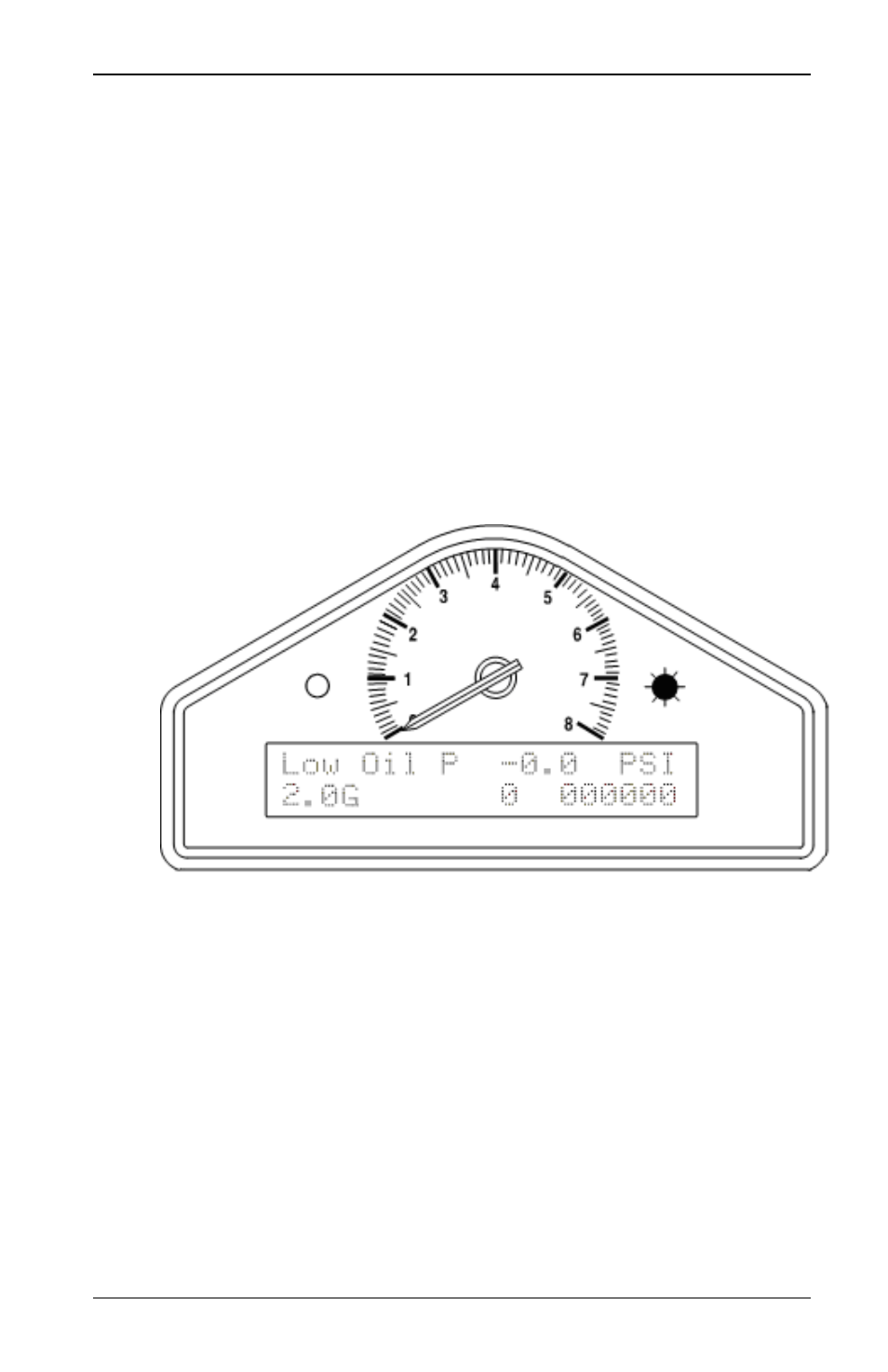

The Display Module should start up with an alarm signal
indicating low oil pressure.
Note that whenever a warning message is shown on the top line
of the digital display, the speed of the vehicle always continues
to be shown in the center of the bottom line.
You can now proceed to familiarize yourself with operating the
Display Module.
