Chapter 2. Getting Started
Street Dash Users Guide
5
The Display Module

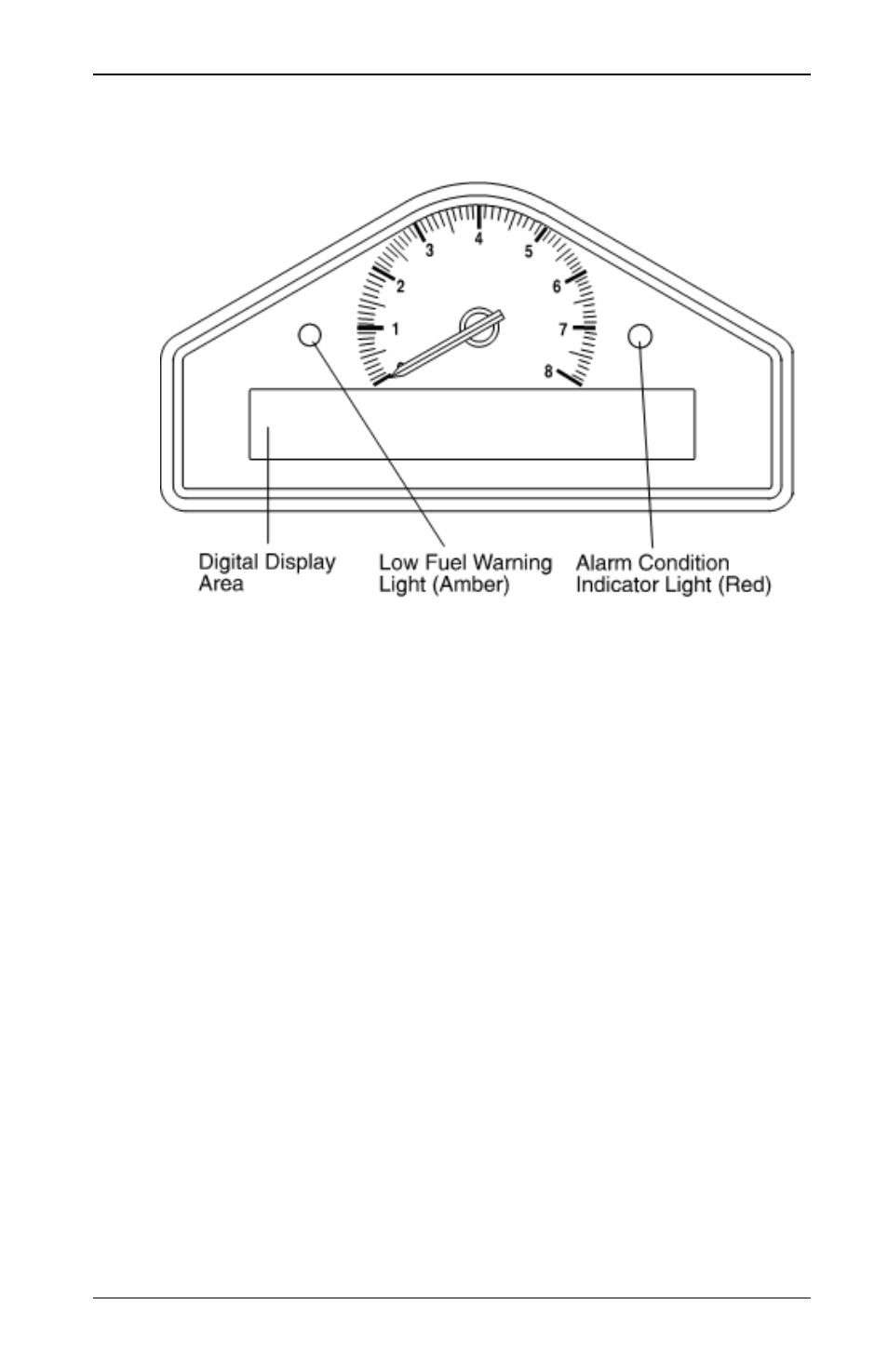

The Display Module consists of an analog tachometer, two
indicator lights and a digital display panel.
The Display Module is connected to a variety of sensors by a
wiring harness. The wiring harness has a 19-way military
connector for connection to the Display Module.
