2.1 Description
The 2N ® SpeedRoute status is indicated by the LED on its front side. All connecting
points, excluding antennas, are placed on the connector panel.
Power Supply
Blue light Power supply is connected.
No light Power supply is not connected.
Network
Yellow light Connection to LTE/UMTS/GSM
network is active
No light Connection to network is
inactive.
WiFi network
Green light WiFi network is active.
No light Network is inactive.
Telephone line
Blue light Active call
Quick flashing Off-hook or ringing
No light Standby (relax, on-hook)
Signal
Blue light LTE/UMTS/GSM signal strength
Flashing No signal
Four-port Gigabit
Ethernet switch
(RJ45)
Telephone line
connector Power supply
connector(2.1 mm DC
jack)
SIM card
connector with
lock
Restart
(Reset)
button

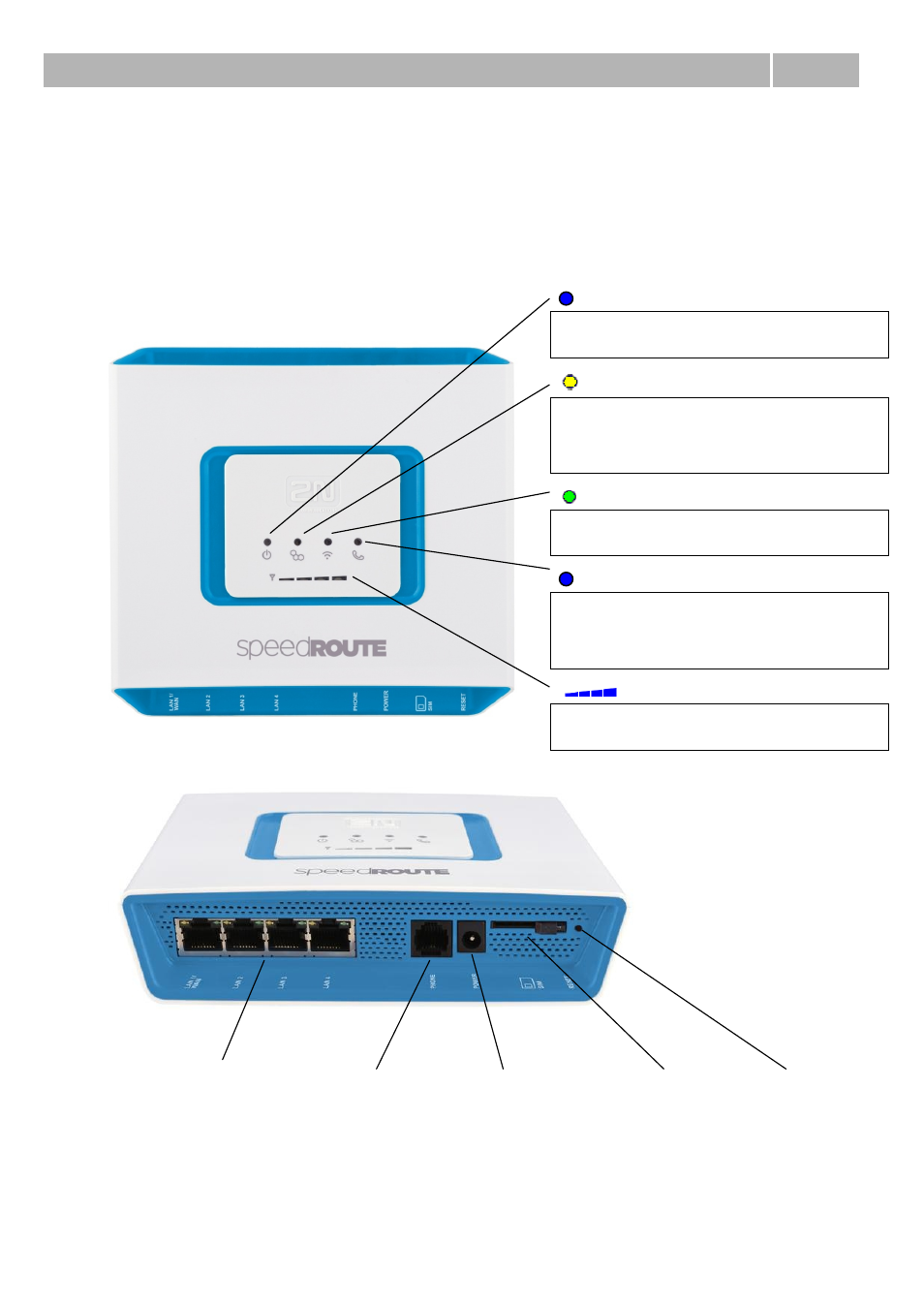

Figure 2.1
2N ® SpeedRoute
LED Indicators
Figure 2.2
2N ® SpeedRoute
Connectors
