4-9 3614RS, 4017RS
Cab

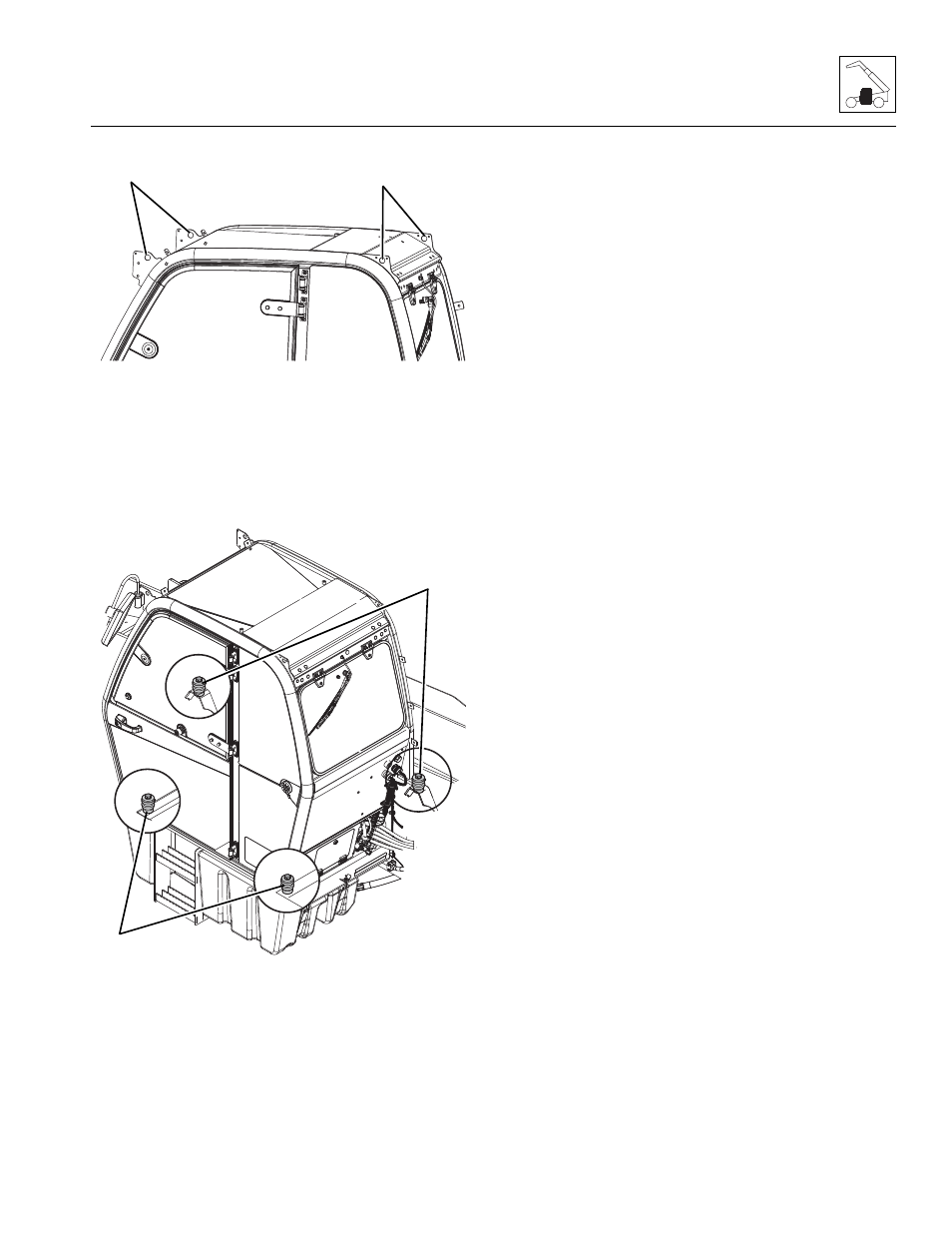

14. Install four lifting eye bolts with a minimum lifting
capacity of 363 kg (800 lb) in the existing lifting holes at
the top corners of the cab (4).
15. Use a hoist or overhead crane and sling with a minimum
lifting capacity of 363 kg (800 lb) attached to the four
eye bolts. DO NOT attempt to lift the cab at this point.
16. Remove four bolts (5) securing cab to frame.
17. Remove mirrors and all other cab components as
needed, if not previously removed.
18. When all wiring, hydraulic hoses and fasteners are
disconnected or removed, carefully and slowly lift cab
and remove it from frame. Readjust position of sling as
needed to help balance cab during removal.
19. When cab is completely clear of machine, carefully
lower it to ground. Block up or support cab so it does
not move or fall.
20. Assure that no personnel enter cab while it is being
removed from machine.
21. Inspect and replace machine parts that are exposed
with cab removed. Repair or replace as required.
M 7910 Z
4 4
M 7900 Z
5
5
