Electrical System
9-4 3614RS, 4017RS
9.2 SPECIFICATIONS
Electrical system specifications are listed in Section 2,
“General Information and Specifications.”
9.3 SAFETY INFORMATION

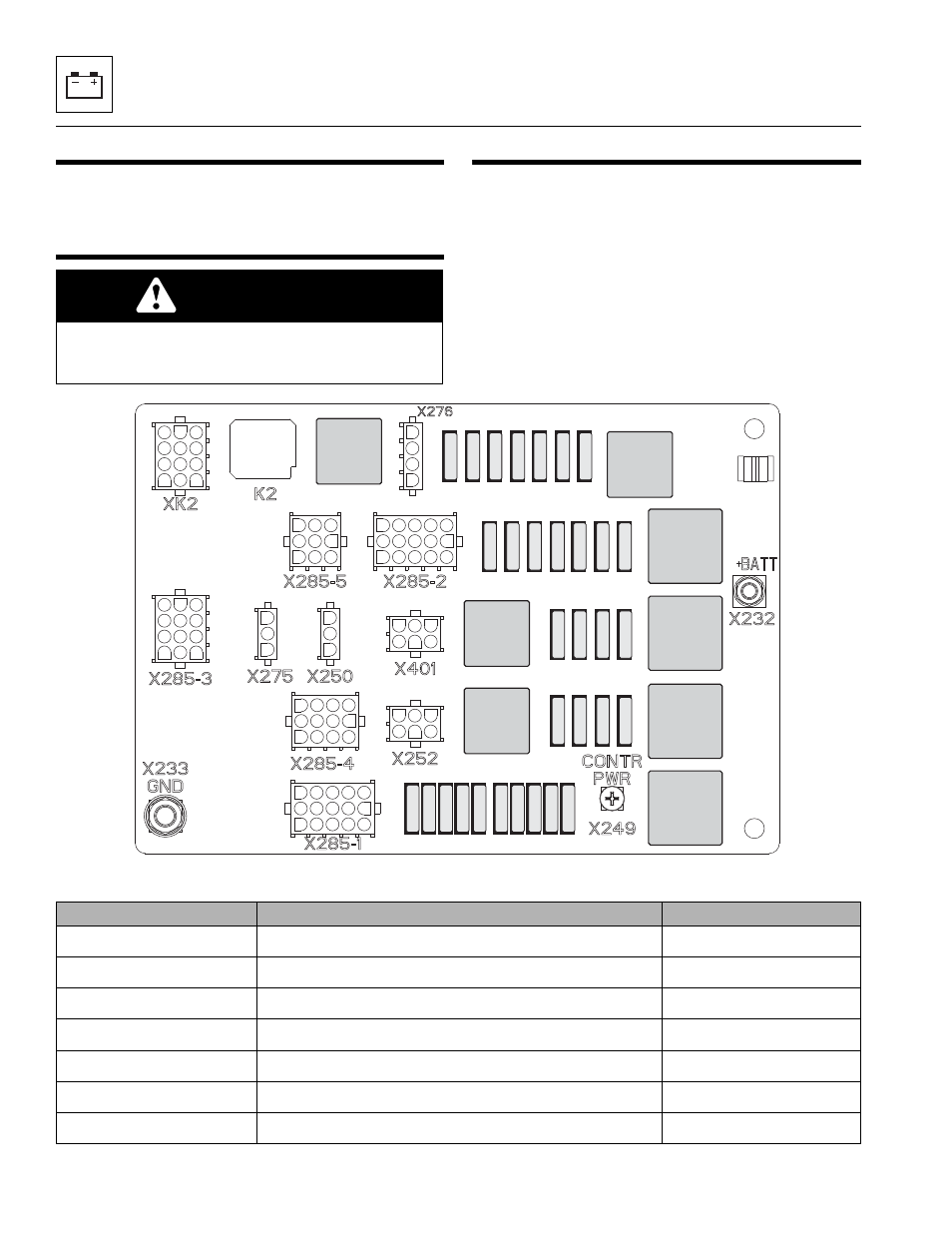

9.4 POWER DISTRIBUTION BOARD
Power distribution board is located in cab. For access,
remove screws securing the small side panel to cab.
WARNING
DO NOT service the machine without following all safety
precautions as outlined in Section 1, “Safety Practices,” of
this manual.
K8
K7
K9
K3
K6
K4
K5
K1
F13 F25 F31 F10 F7 F8 F9
F12 F11 F17 F18 F16 F15 F14
F21 F22 F19 F20
F26 F24 F23 F32
F1 F2 F3 F4 F6 F5 F28 F29 F27 F30
MAM3690
Fuse/Relay Function Amp Rating
F1 Right Hand HI Beam 7.5
F2 Right Hand LOW Beam 7.5
F3 Left Hand HI Beam 7.5
F4 Left Hand LOW Beam 7.5
F5 Left Hand Side Lights 7.5
F6 Right Hand Side Lights 7.5
F7 Headlight Flash Power 15
