Axles, Drive Shafts, Wheels and Tires
5-6 3614RS, 4017RS
5.6 PARK BRAKE ADJUSTMENT - 3614RS
1. Park the machine on a slight grade, fully retract boom,
level the boom, place transmission in (N) NEUTRAL, set
the parking brake. The machine should not move. If the
machine moves, adjust the park brake.
2. Apply service brake and disengage the park brake.

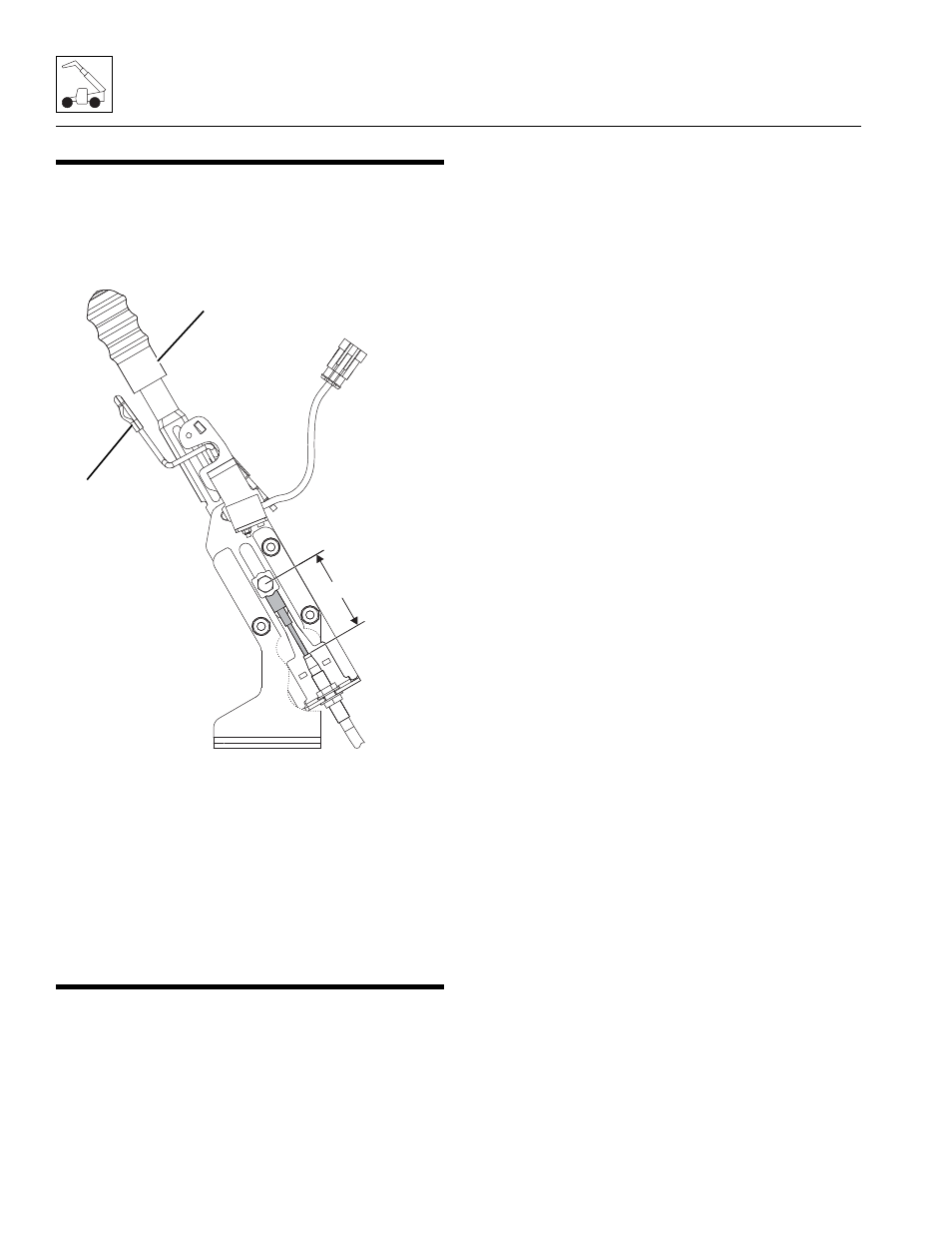

3. Depress the release lever (1) and push the park brake
lever (2) down.
4. Adjust the park brake cable by turning the adjuster
knob (2) clockwise to increase park brake force. Turn the
adjuster knob counterclockwise to decrease park brake
force.
5. If park brake cannot be adjusted, refer to Section 5.3,
“Axle Specifications and Maintenance Information,” for
detailed axle information.
5.7 STEERING ANGLE ADJUSTMENT
Detailed axle service instructions are provided in the Axle
Service Manual, refer to Section 5.3, “Axle Specifications and
Maintenance Information.”
60MM
MAM4100
2
1
