‑ The stabilisation will be concluded when the machine is placed in the horizontal position
with tolerance of 1° and lifted by at least 5 cm from the ground. The correct stabilisation
will be identified by the appearance of the icon in position 5 on the display.
Control always the spirit level and verify that the inclination is really lower than 1°
MANUAL OPERATION OF OUTRIGGERS
The manual operation of each outrigger must not be used to stabilize the machine but only
for possible inclination corrections in case of stabilization in difficult conditions. It can also be
used to lower or lift the outriggers individually, in case of necessity to pass in zones with
obstacles or high inclination, to increase the stability of the machine.

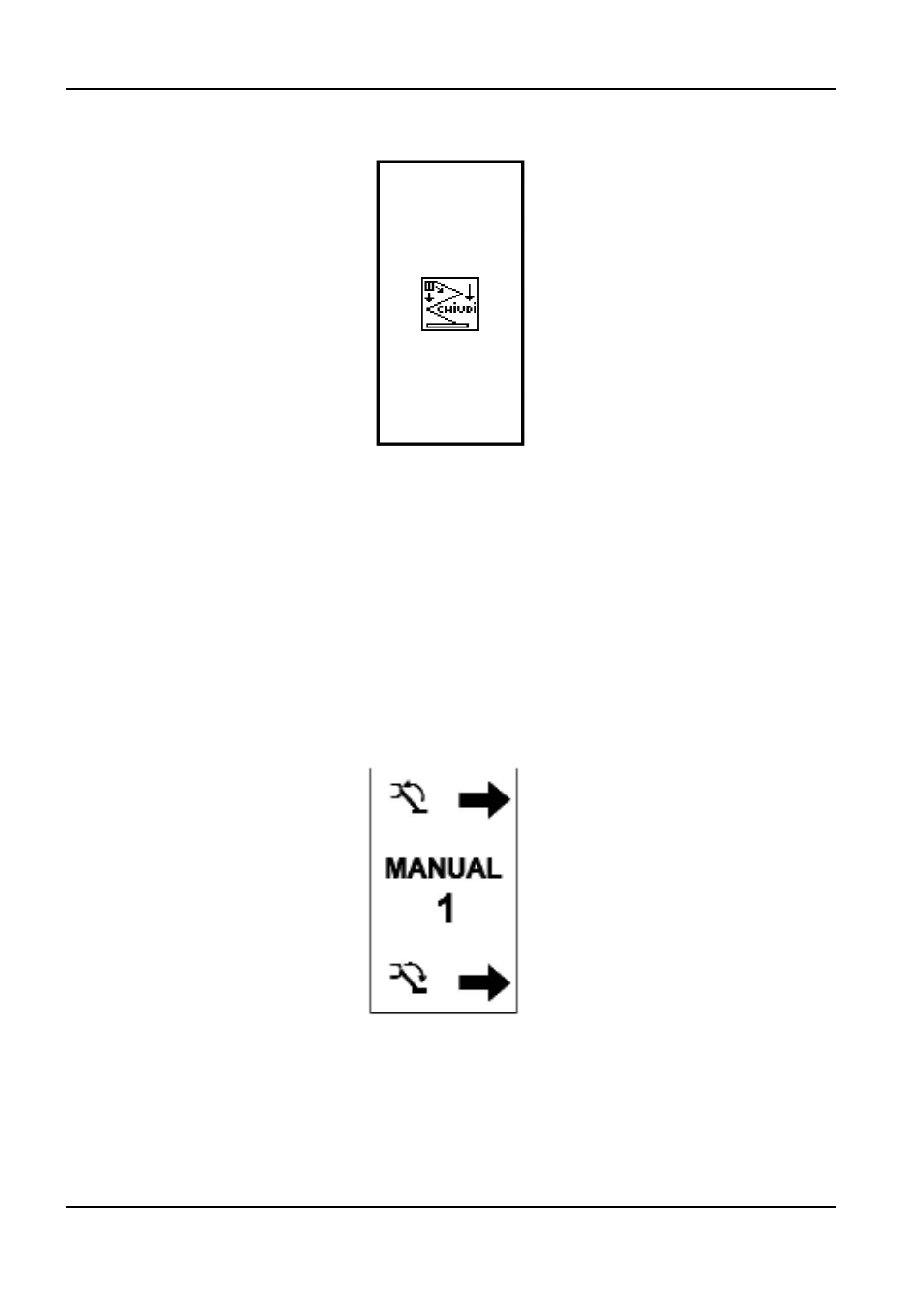

Pressing the button once the display regarding the manual movement of outrigger no. 1
appears, pressing it a second time the movement is of outrigger no. 2 and so on till number 4.
Pressing once again the initial display appears.
In the manual menu pressing buttons 1 and 7 the selected outrigger is lifted or lowered.
