BOOM LIFT MODELS X23J

JLG

X23JR0620113

If the movements are selected when one of the above listed conditions is missing, an
error message will appear on the display indicating which of the conditions are OK and
which are missing (FAIL). If the missing condition is stabilisation, the message will also
indicate which outrigger is not resting on the ground.

ST1

: if OK outrigger 1 is resting on the ground

ST2

: if OK outrigger 2 is resting on the ground

ST3

: if OK outrigger 3 is resting on the ground

ST4

: if OK outrigger 4 is resting on the ground

INLC

: if OK the machine is in the accepted inclination limit

LOAD

: if OK the load is below the max operative load admitted

BASKET

: if OK the remote control is in position in the basket

PEDAL

: if OK the footswitch is pushed

ROTATION WITH 1‑2 ARM CLOSED AND 1‑2 ARM DESCENT ONTO ONE OUTRIGGER

If the turret is rotated with 1‑2 arm closed or nearly closed, there is a danger that the first
arm collides against the outriggers or against the engine.

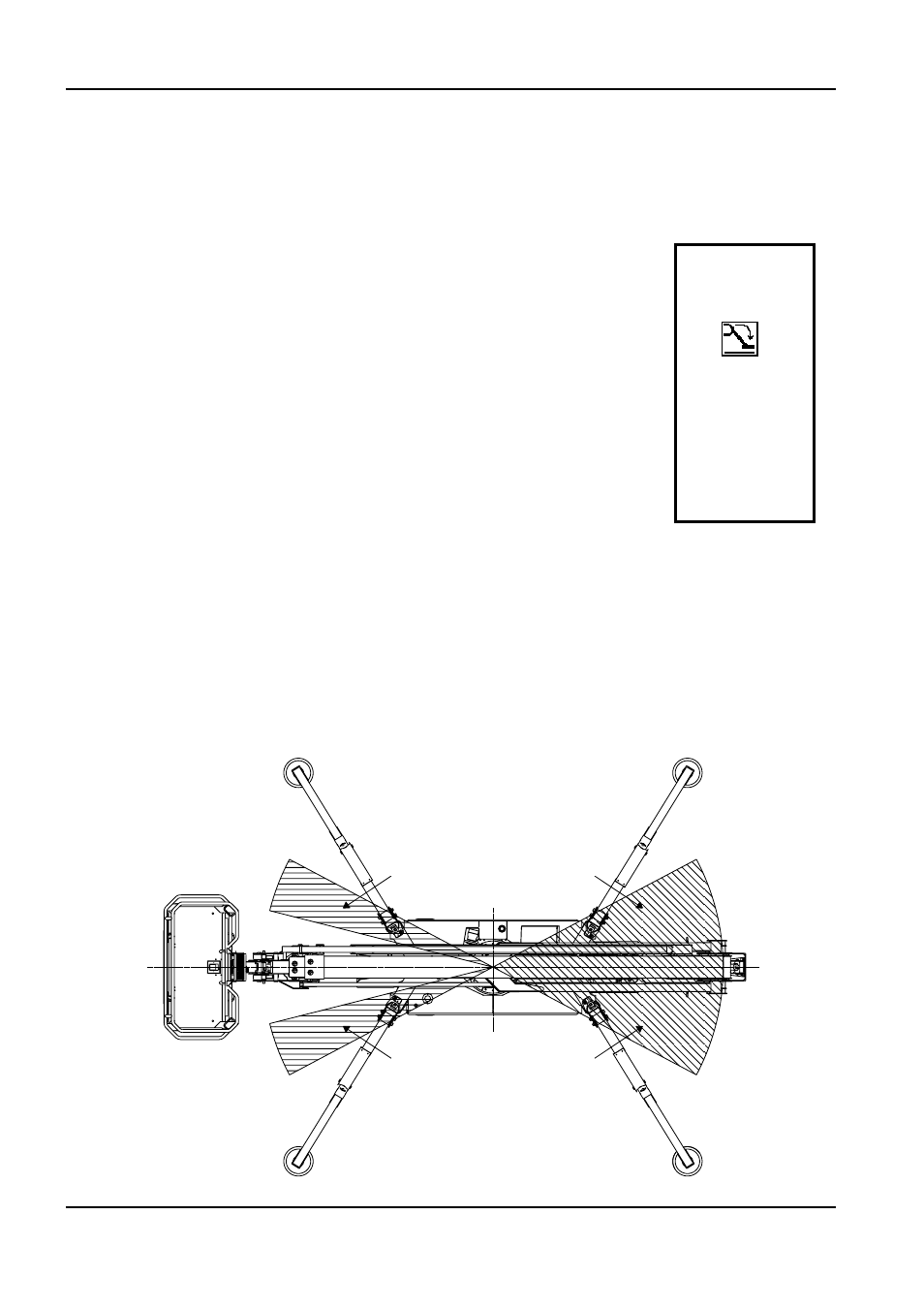

Therefore, free rotation areas and restricted rotation areas are defined in the rotation area..
RESTRICTED ROTATION AREA: they are 3 areas near to the engine stabilisers where the
first arm can collide with them.
FREE ROTATION AREA: it is the entire rotation area that does not coincide with the restric‑
ted rotation areas.

ERROR

ST1 NO
ST2 NO
ST3 NO
ST4 NO
INCL OK
LOAD OK
BASKET OK
PEDAL OK

RESTRICTED ROTATION AREA
