4 INSTRUMENTS AND CONTROLS
Successively find the indications of all controls and indicators present on the platform; each
device has a sticker that briefly describes the function applied in the close vicinity, but they
are often symbols used to favour quick and safe use. Before using the platform the following
descriptions must be read in order to have a more in‑depth knowledge of the functions of
each device and to be aware of any suggestions by the manufacturer.
Before starting to use the platform the operator must have read and perfectly understood the
provisions contained in the entire manual.
4.1 R EMOTE CONTROL

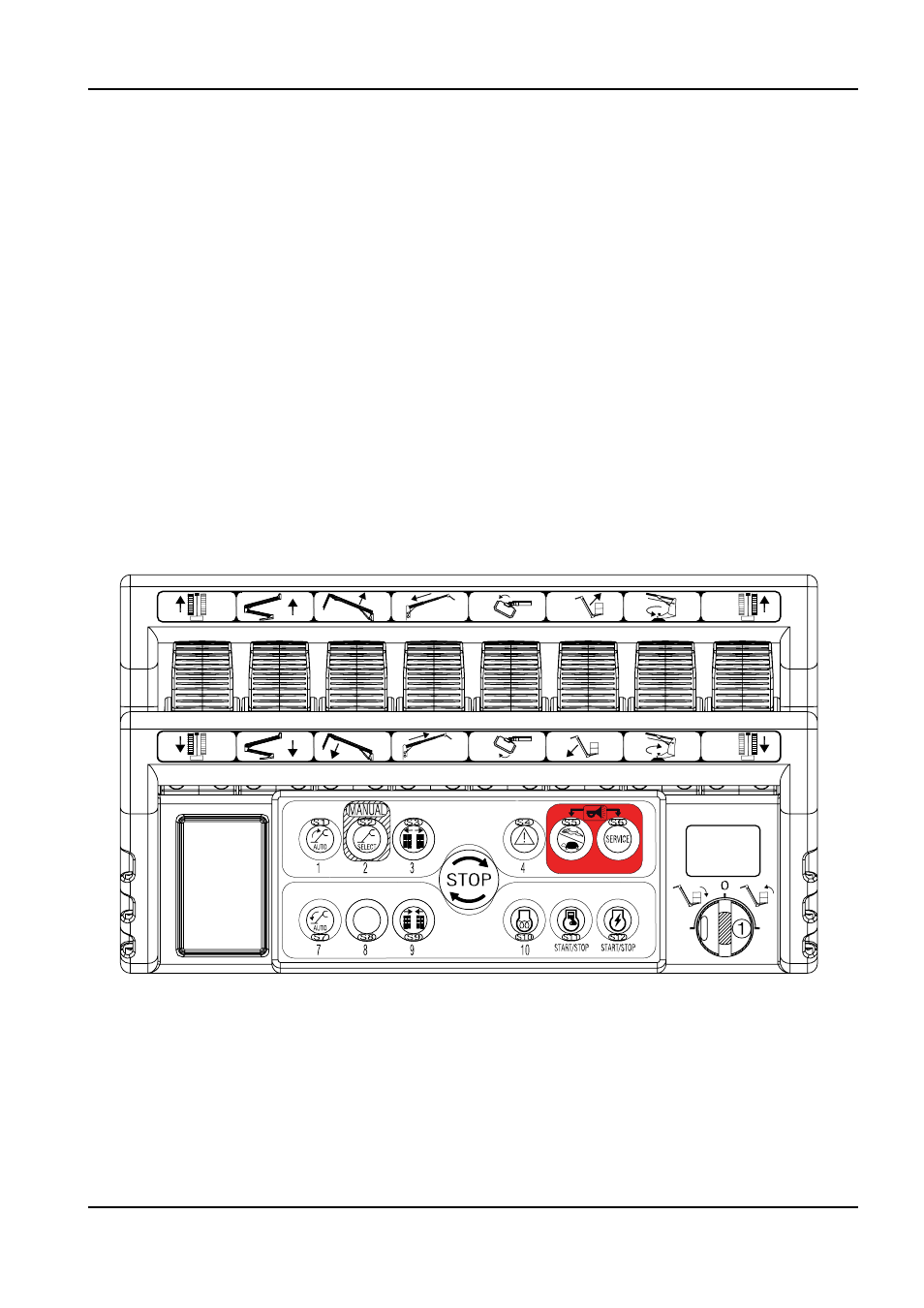

The remote control has most of the machine controls for routine functioning.
The remote control is made up from buttons, Joysticks, key selector switches, displays.
The remote control has continuous exchange of data with the main board of the machine,
which sends the information to be viewed onto the display.
